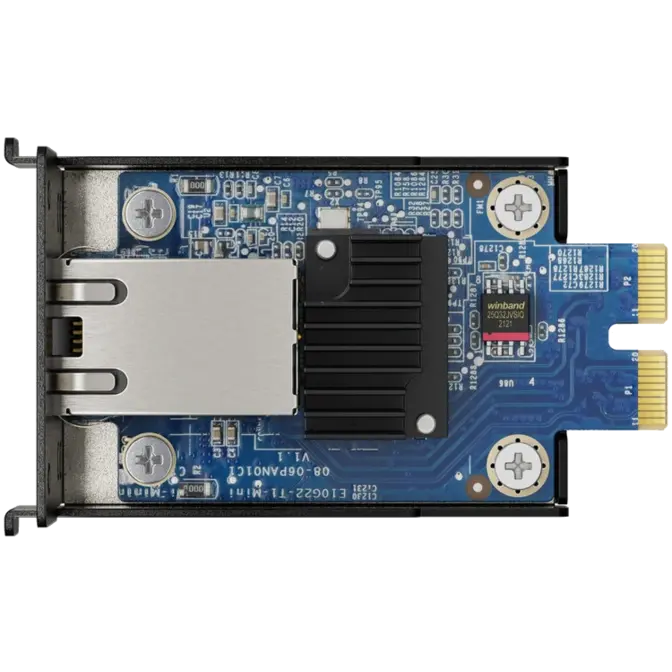

Synology E10G22-T1-Mini Network Upgrade Module


Synology E10G22-T1-Mini Network Upgrade Module

Web ID: 35256

10GbE RJ-45 network upgrade module for compact Synology NAS. Upgrade these NAS to 10GB Ethernet: DS923+, DS723+, RS422+, DS1522+ ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: E10G22-T1-MINI

$289
 Add to cart
Out of Stock
 Compare
 Wish List
 Question

Maximize bandwidth to tackle heavy-duty applications

The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.1 Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.

Throughput

Throughput

Expand system capabilities with 10GbE connectivity

Flexibility

Flexibility

Integrate easily with support for 10/5/2.5/1 Gbps networks

Compatibility

Compatibility

Designed for maximum performance and reliability in Synology systems



Simple installation

Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures. Check compatibility

Multi-gig support

Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.



Hardware Specifications

General

 Host Bus Interface PCIe 3.0 x2
  Size (Height x Width x Depth) 26.37 mm x 45.38 mm x 75.7 mm
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
  Warranty 3 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network

 IEEE Specification Compliance
  • IEEE 802.3x Flow Control
  • IEEE 802.3u Fast Ethernet
  • IEEE 802.3ab Gigabit Ethernet
  • IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
  • IEEE 802.3an 10Gbps Ethernet
  Data Transfer Rates 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps
  Supported Features
  • 9 KB Jumbo Frame
  • TCP/UDP/IP Checksum Offloading
  • Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
  • TCP Segmentation Offload (TSO)
  • Large Send Offload (LSO)
  • Receive Side Scaling (RSS)
  • Generic Receive Offload (GRO)
  • Generic Segmentation Offload (GSO)

Compatibility

Applied Models
  • 23 series:DS923+, DS723+
  • 22 series:RS422+, DS1522+

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
