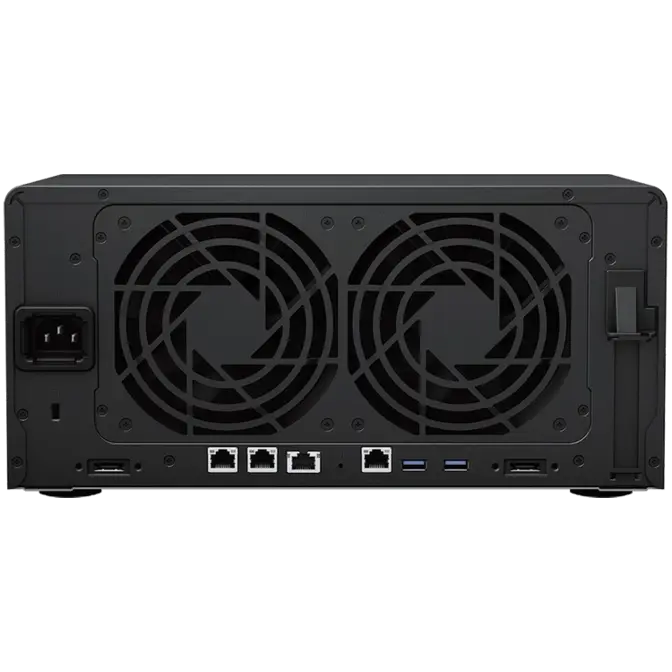

Synology DS1823XS+ Tower 8 Bay NAS
Web ID: 35771
Synology DS1823XS+ Tower 8 Bay NAS for SMB, 3.5" HDD/SSD (0/8), 2x M.2 NVMe (0/2), AMD Ryzen V1780B 4-core, 8GB ECC SODIMM RAM (1/2), 2x GbE, 1x 10GbE, 3x USB-A, 2x eSATA, 1x PCIe 3.0 x8
Manufacturer Warranty: 2 Year
Manufacturer PN: DS1823XS+
GTIN: 846504004959
Manufacturer Website
$3299
|
CPU |
CPU Model | AMD Ryzen V1780B |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
|
Memory |
System Memory | 8 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage |
Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 18 (DX517 x 2) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|
External Ports |
RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 1 | |
| Out-of-Band Management LAN Port | 1 | |
| USB 3.2 Gen 1 Port* | 3 | |
| eSATA Port | 2 | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
|
PCIe |
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
|
File System |
Internal Drives |
|
| External Drives |
|
|
|
Appearance |
Size (Height x Width x Depth) | 166 mm x 343 mm x 243 mm |
| Weight | 6.2 kg | |
|
Others |
System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 23.6 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 250 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 87.93 W (Access) 28.37 W (HDD Hibernation) |
|
| British Thermal Unit | 300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification |
|
|
|
Warranty |
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
|
Environment |
RoHS Compliant | |
|
Packaging Content |
|
|
|
Optional Accessories |
|
|
