StarTech 2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching 1080p

Web ID: 19827

Share an HDMI display/projector between a VGA and HDMI audio/video source, with automatic and priority switching - VGA+HDMI? to HDMI Audio/Video Converter Switch ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: VS221VGA2HD
GTIN: 65030858427
Manufacturer Website

$303

The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.

One Switch for VGA and HDMI

The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.

Effortless Control

The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.

Focus on the Presentation, Not Boardroom Connections

This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room?s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.

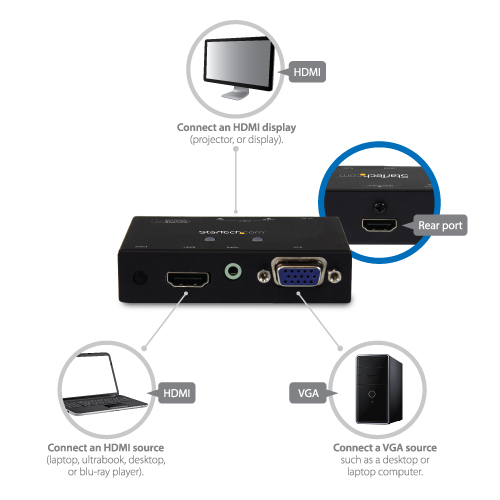

Application Diagram

If you are looking for a similar device with VGA output, please see our VS221HD2VGA.

The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

Connector(s)
Connector AHDMI (19 pin) Female
VGA (15 pin, High Density D-Sub) Female
Connector BHDMI (19 pin) Female
Environmental
Humidity0%~80%
Operating Temperature0?C to 40?C (32?F to 104?F)
Storage Temperature-20?C to 60?C (-4?F to 140?F)
Hardware
AudioYes
Ports2
Indicators
LED IndicatorsHDMI Port Selected
VGA Port Selected
Packaging Information
Shipping (Package) Weight651 g [23 oz]
Performance
Audio Specifications2-channel 3.5mm stereo audio (VGA)
7.1 surround sound (HDMI)
Maximum Analog Resolutions1920x1200
Maximum Digital Resolutions1920x1200
Supported ResolutionsSupports resolutions up to 1920x1200 / 1080p
Wide Screen SupportedYes
Physical Characteristics
Product Height29 mm [1.1 in]
Product Length102 mm [4 in]
Product Weight225 g [7.9 oz]
Product Width54 mm [2.1 in]
Power
Input Current0.4 A
Input Voltage100 ~ 240 AC
Output Current1 A
Output Voltage5 DC
Power Consumption (In Watts)5
Power SourceAC Adapter Included
What's in the Box
Included in Packageinstruction manual
mounting kit
universal power adapter (NA, EU, UK, ANZ)
VGA+HDMI to HDMI converter switch
