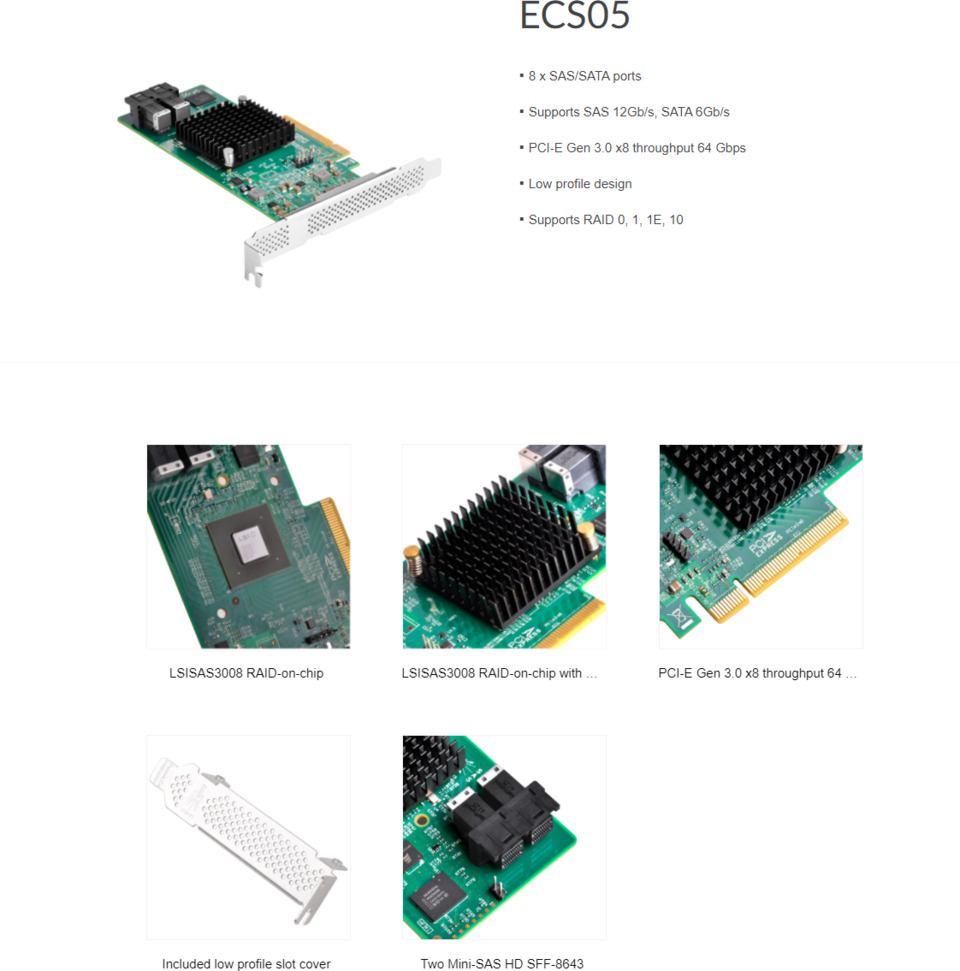

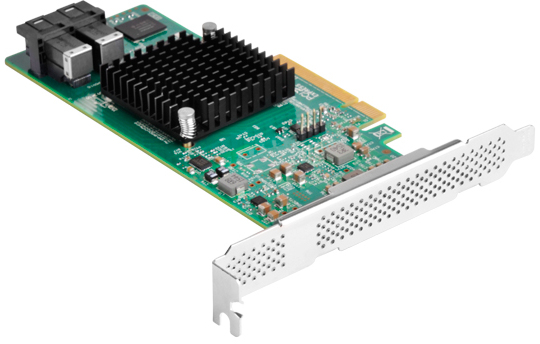

SilverStone SST-ECS05 RAID Controller Card
Web ID: 38108
8 x SAS/SATA ports
Supports SAS 12Gb/s, SATA 6Gb/s
PCI-E Gen 3.0 x8 throughput 64 Gbps
Low profile design
Supports RAID 0, 1, 1E, 10
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: SST-ECS05
Manufacturer Website
$639
Model No.
SST-ECS05
Controller-IC
LSISAS3008 RAID-on-chip
Host interface
Low profile - PCI Express 3.0 x8 throughput 64 Gbps
Interface
Mini-SAS HD SFF-8643 x 2
Drive Support
SAS up to 12Gb/s, SATA up to 6Gb/s (up to 1024 SAS/SATA devices)
PCI Card Type
3.3V Add-in Card
RAID function
0, 1, 1E, 10
Operating Voltage
+12V +/- 8% ; 3.3V +/- 9%
Brackets
Full height and low profile bracket
Dimension
120mm (W) x 23mm (H) x 154mm (D)
Net weight
91g
