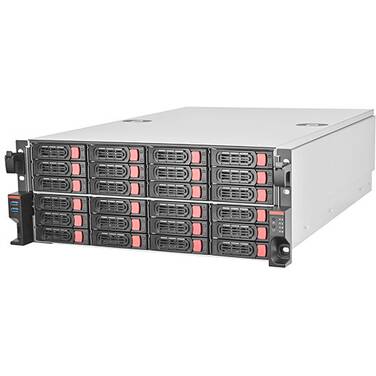

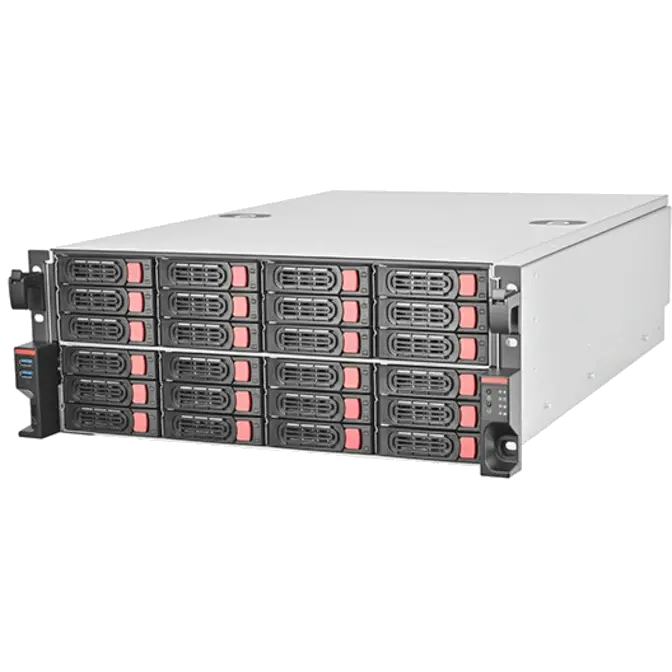

Silverstone RM43-324-RS 24-Bay 4U Rackmount Server Chassis
Web ID: 48394
Backplane support for 24 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
Supports twenty-four 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
Ball bearing sliding rail included for simple server rack integration
Includes three 120mm x 38mm hot-swappable PWM fans
Auto lock handle for convenient fixation of chassis into rack cabinet
Supports ATX (PS2) / mini-redundant PSU/2U redundant
Supports E-ATX or SSI-EEB motherboards
Supports 7 standard PCI / PCIe slots
Independent drive status LED
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM43-324-RS
Manufacturer Website
$809
| Model No. | SST-RM43-324-RS |
|---|---|
| Chassis Form Factor | 4U |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Main Metal Thickness | 1.0mm ~ 1.2mm |
| HDD Backplane | Backplane: 24 ports SAS / SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO |
| Power Connector | 4-Pin peripheral x 12 |
| Interface | SAS III / II / I, SATA III / II / I |
| Drive Support (External) | 3.5" hot-swap x 24 |
| Cooling System (Rear) | 80mm x 2 fan slots |
| Cooling System (Internal) | Hot-swap 120 x 38mm PWM ball bearing fan x 3 |
| Limitation of CPU Cooler | 130mm (with GPU holder), 148mm (without GPU holder) |
| Expansion Slot | 7 |
| Limitation of Expansion Card | Length: 340mm Width w/ GPU holder: 116mm Width w/o GPU holder: 154mm |
| Power Supply | ATX (PS2) / Mini Redundant / 2U Redundant [1] |
| Max. Supported Weight | 16.8 kg |
| Front I/O Port | USB 3.1 Gen 1 Type-A x 2 [2] |
| Front Buttons | Power On / Off, System Reset |
| LED Indicators (Chassis) | Power LED x 1: Blue HDD Access x 1: Green LAN LED x 2: Green |
| LED Indicators (HDD Tray) | HDD Power LED x 24: Yellow HDD Access x 24: Blinking Green |
| Dimension (mm) | 442 (W) x 175 (H) x 660 (D), 51.1 liters |
| Dimension (inches) | 17.4” (W) x 6.9” (H) x 26” (D), 51.1 liters |
