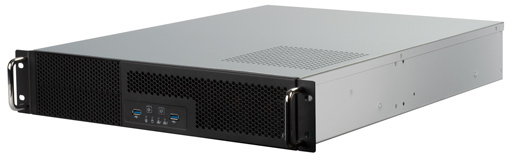

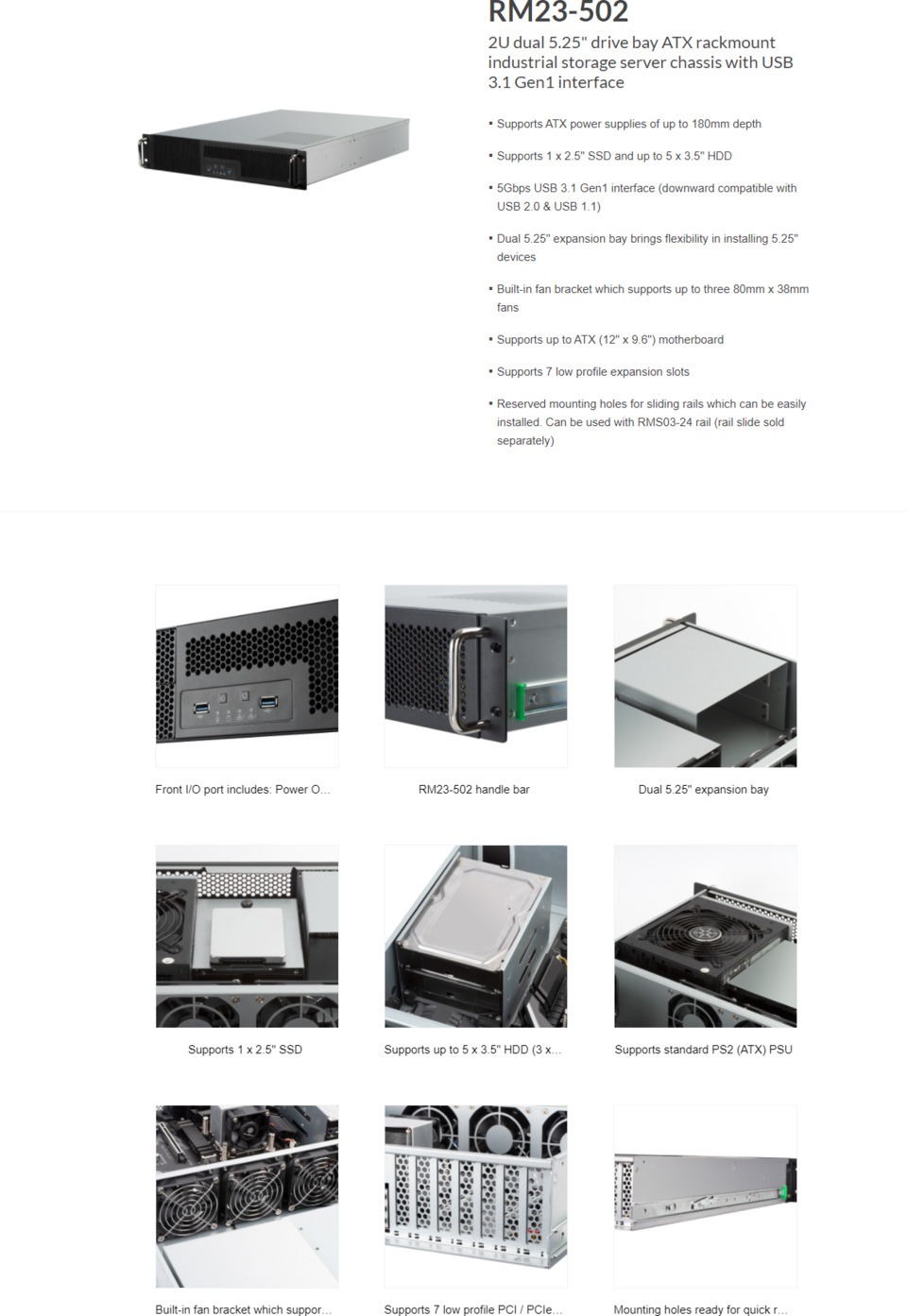

SilverStone RM23-502 2U Rackmount Case
Web ID: 38169
Supports ATX power supplies of up to 180mm depth
Supports 1 x 2.5" SSD and up to 5 x 3.5" HDD
5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
Built-in fan bracket which supports up to three 80mm x 38mm fans
Supports up to ATX (12" x 9.6") motherboard
Supports 7 low profile expansion slots
Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail (rail slide sold separately)
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM23-502
Manufacturer Website
Model No.
SST-RM23-502
Chassis form factor
2U
Motherboard
ATX (12" x 9.6"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Main metal thickness
1mm
Drive Bay
External
- 5.25" x 2
Internal
- 3.5" x 5
2.5" x 1
Power Supply
Standard PS2 (ATX), supports up to 180mm long
Cooling system
Front
- 80mm x 3
Rear
- 60mm x 1
Limitation of CPU cooler
65mm
Expansion Slot
Low profile x 7
Front I/O Port
USB 3.1 Gen 1 Type-A x 2 *
Front buttons
Power On / Off, system reset
Indicators
Power status x 1
HDD activity x 1
LAN activity x 2
Dimension
430mm (W) x 88.5mm (H) x 580mm (D), 22.07 Liters
Net Weight
6.8 kg
