SilverStone RM21-304 Black 2U Rackmount Case No PSU

Web ID: 33224

SilverStone RM21-304 Black 2U Rackmount Case, No PSU (standard ATX PSU fits OK). Low Profile short GPU fits OK. CASH PRICE
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM21-304
GTIN: 844761014537
Manufacturer Website

$409SAVE $130
Model No. SST-RM21-304
Chassis form factor 2U

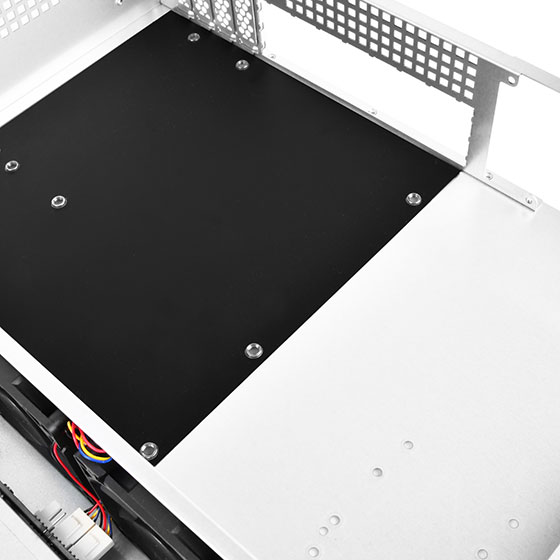

Motherboard Micro ATX (9.6" x 9.6"), Mini-ITX (6.7” x 6.7”)

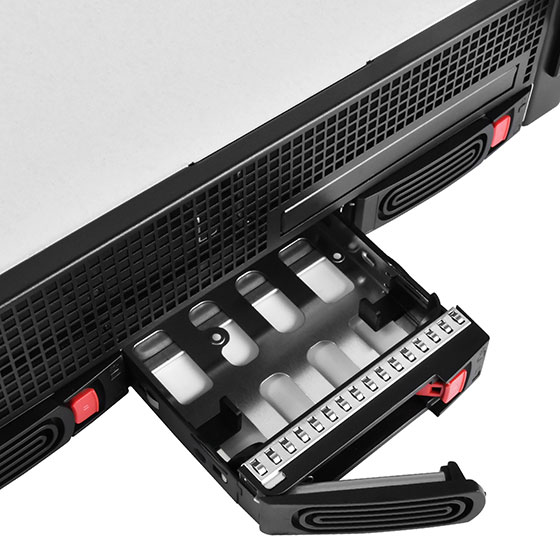

Drive Bay External 3.5" or 2.5" HDD/SSD hot-swap x 4

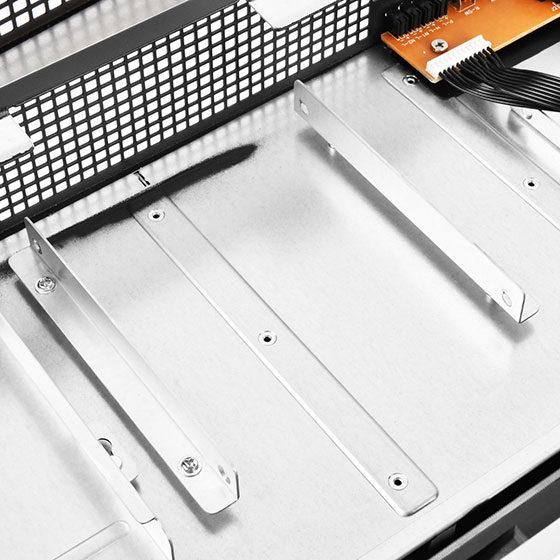

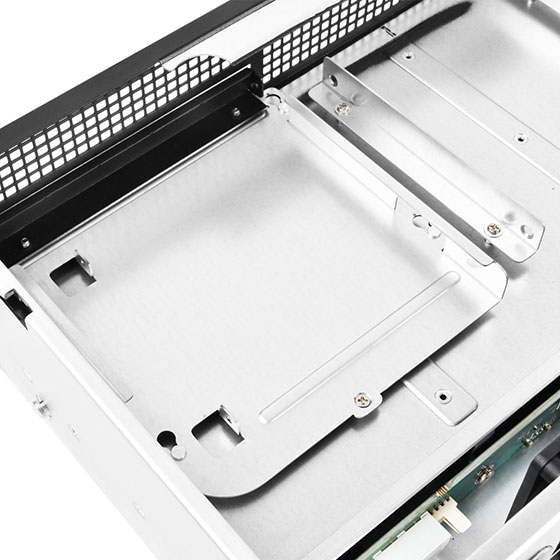

Internal 3.5" x 1, 2.5" x 1 (up to 15mm), slim optical x 1 (up to 12.7mm)

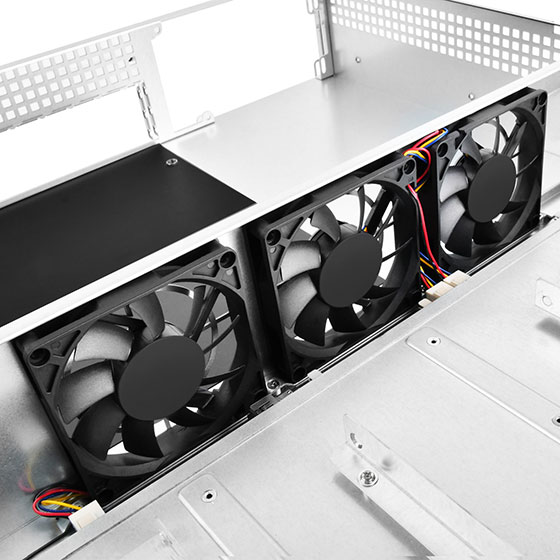

Cooling System 80 x 15mm ball bearing fan x 3, 4000±10%RPM
Power Supply 2U single or 2U redundant / PS2 (ATX) up to 160mm deep and 86.3mm height (not included)
Limitation of CPU cooler 68mm

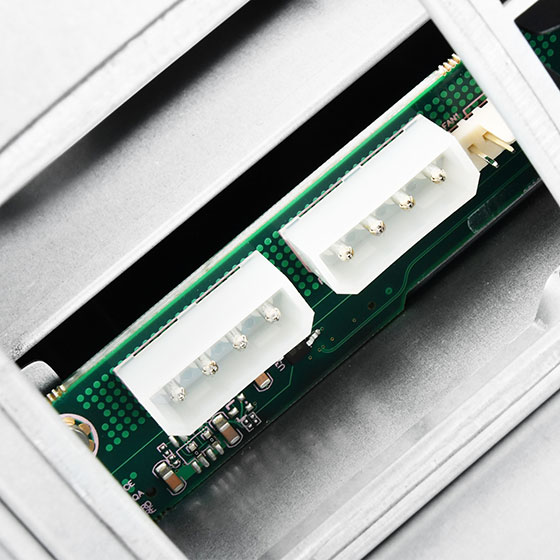

Power connector on HDD backplane 4-Pin peripheral x 2
Expansion Slot Low profile PCI / PCIe x 4

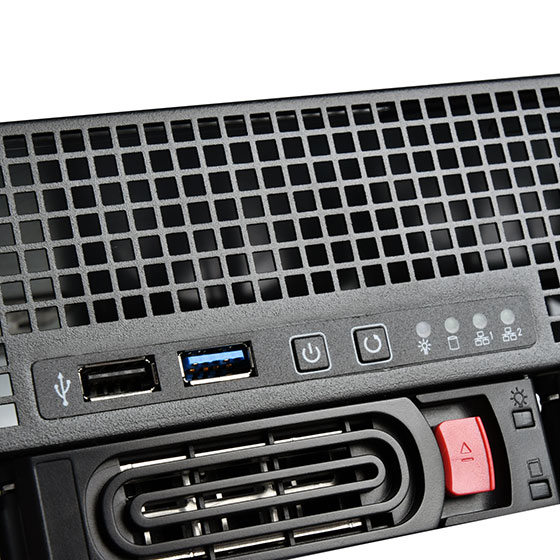

Front I/O Port USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1**
Front buttons Power On / Off, system reset
Indicators Chassis :
     Power LED x 1: Blue
     HDD Access x 1: Green
     LAN LED x 2: Green
HDD Tray :
     HDD Power LED x 8: Yellow
     HDD Access x 8: Blinking green

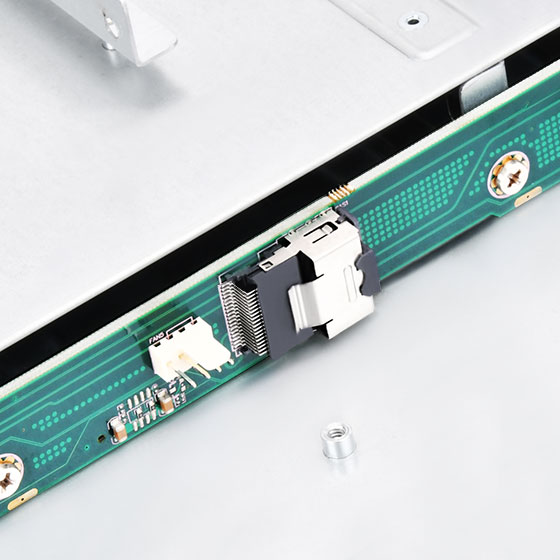

HDD backplane 4 ports SAS / SATA to Mini-SAS SFF-8087 x 1
HDD Interface SAS-1 / SAS-2 / SAS-3
SATA-1 / SATA-2 / SATA-3
Main metal thickness 1mm
Net Weight 6.3 kg
Dimension 430mm (W) x 88.5mm (H) x 480mm (D) 18.3 Liters
16.93" (W) x 3.48" (H) x 18.9" (D) 18.3 Liters
  **RM21’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB 3.1 port, we recommend using it with shorter cables to prevent performance loss.
***Mini-SAS HD (SFF8643) to Mini-SAS (SFF8087) cable and 12 Gb/s SAS HD card required for 12 Gb/s performance. (e.g. SilverStone CPS06 & ECS05)
