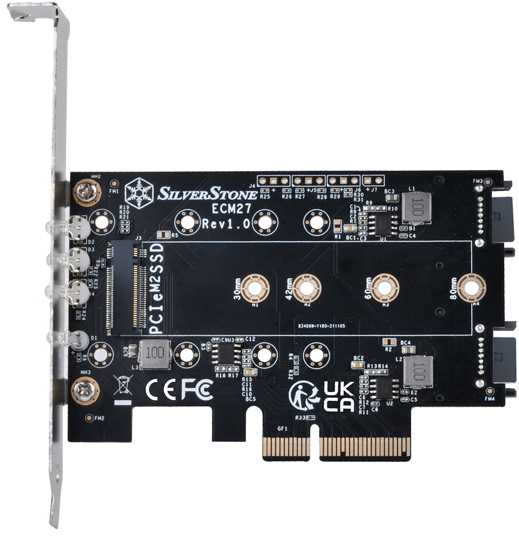

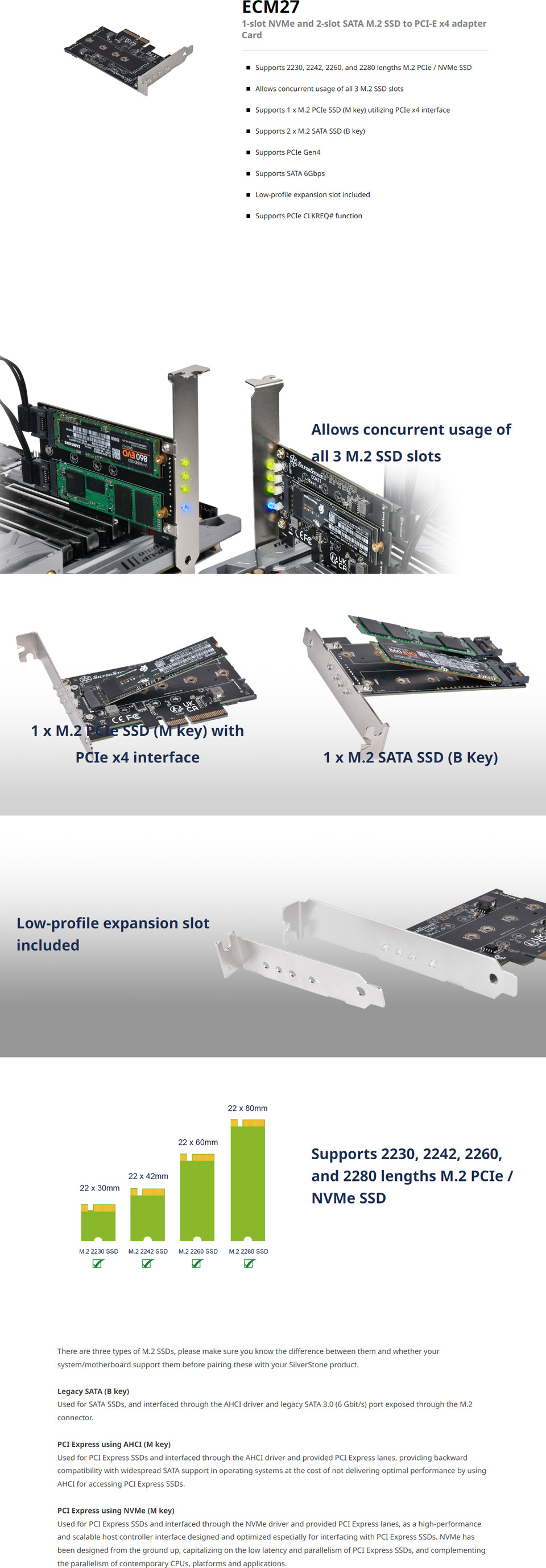

SilverStone ECM27 3 Port M.2 SSD to PCI-E x4 Adapter Card
Web ID: 38120
Supports 2230, 2242, 2260, and 2280 lengths M.2 PCIe / NVMe SSD
Allows concurrent usage of all 3 M.2 SSD slots
Supports 1 x M.2 PCIe SSD (M key) utilizing PCIe x4 interface
Supports 2 x M.2 SATA SSD (B key)
Supports PCIe Gen4
Supports SATA 6Gbps
Low-profile expansion slot included
Supports PCIe CLKREQ# function
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-ECM27
GTIN: 844761025106
Manufacturer Website
Model No.
SST-ECM27
Interface
PCI Express x4 / SATA 6Gbps
SSD Interface
NVMe & SATA M.2
Number of Drives
3
Support Length of M.2 SSD
22x30mm, 22x42mm, 22x60mm, 22x80mm
Module Key
SATA-based B key
PCIe x4 NVMe-based M key
LED indicator
Power LED: Blue
SSD powered: Solid Green
Data access: Blinking Red
Dimension
101mm (W) x 11mm (H) x 67.9mm (D)
Net weight
47.5g
