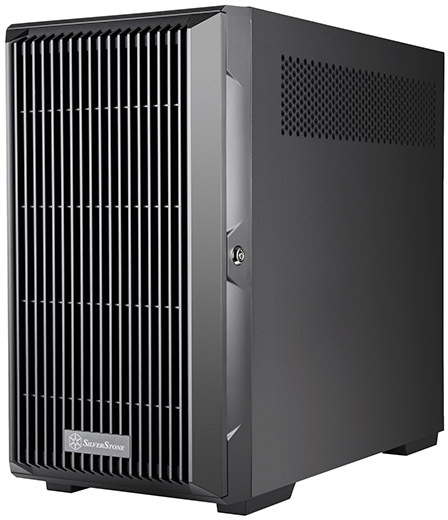

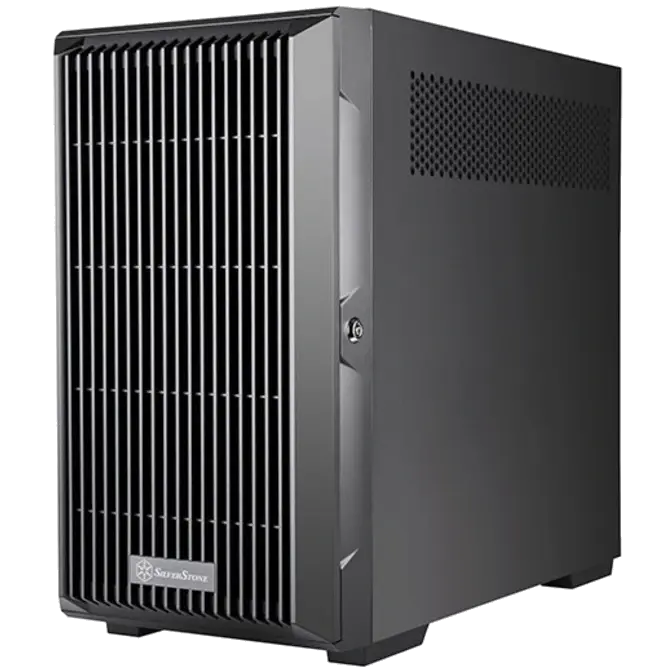

Silverstone CS382 MicroATX NAS Black Case SST-CS382
Web ID: 37841

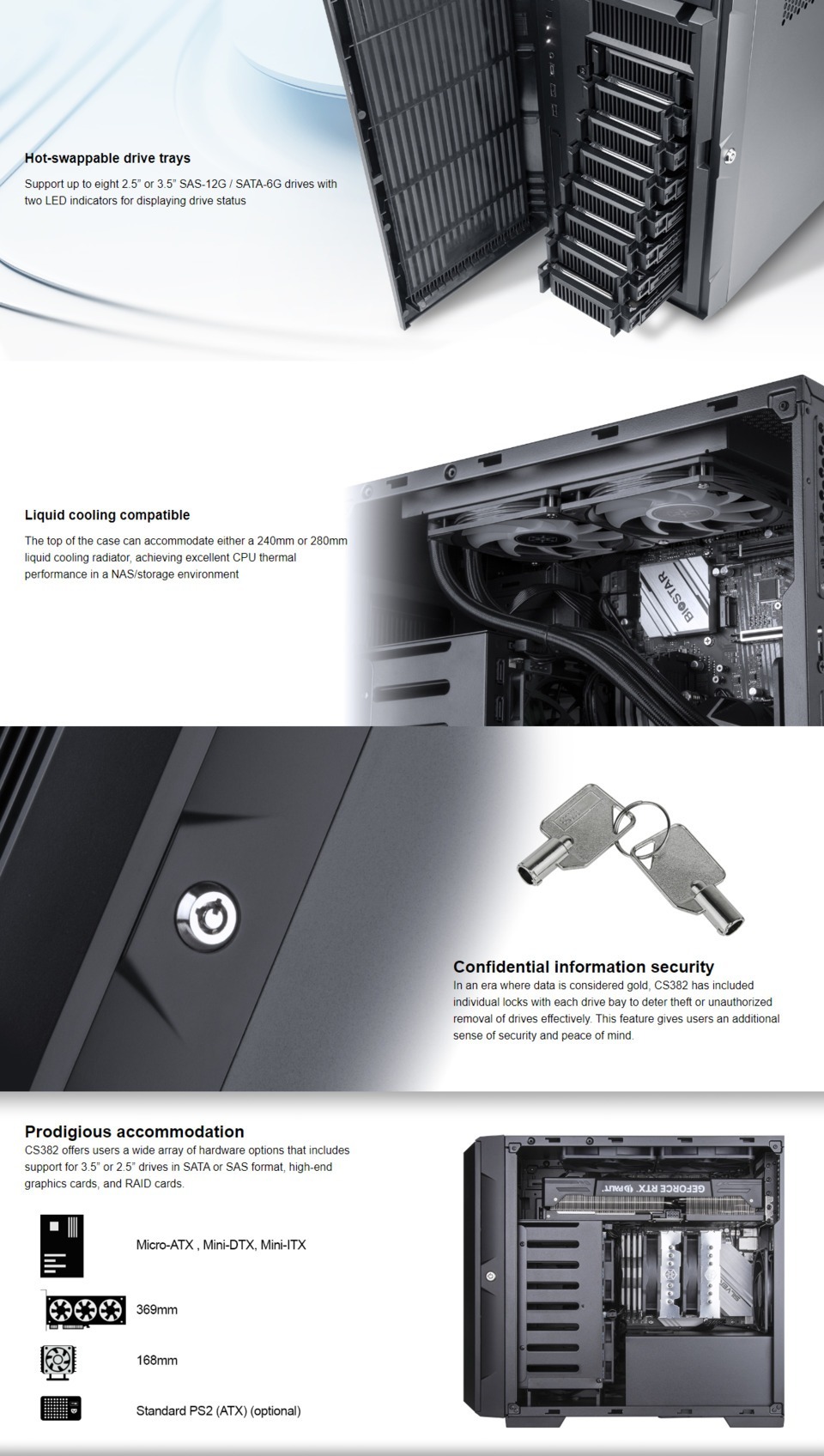

8 hot-swappable drive trays to accommodate up to 2.5" or 3.5" SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status
Supports Micro-ATX motherboard and ATX (PS2) power supply
Compatible with 240 or 280mm liquid cooling radiators
Supports 1 x 9.5mm slim ODD
Support for a total of 11 drives
Dust filters included in key areas
Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-CS382
Manufacturer Website
Model No.
SST-CS382
Material
Plastic front door, galvanized steel body
Motherboard
HDD
backplane
- 8 port x SAS 12Gbit/s* / SATA 6Gbit/s
interface
- SATA drive up to 6 Gbit/s (depends on drive speed)
SAS drive up to 12 Gbit/s (depends on drive speed)
Power connector on backplane
- 4 pin peripheral x 2, 15 pin SATA x 2
Drive bay
External
- 2.5” / 3.5” SAS / SATA external hot-swapping x 8
5.25” x 1
9.5mm slim optical drive x 1
Internal
- 3.5” x 1
2.5” x 2
Cooling system
Rear
- 120mm x 1
Top
- 120mm / 140mm x 2 (optional)
Internal
- 92mm x 2
Radiator support
Rear
- 120mm x 1
Top
- 120mm / 140mm / 240mm / 280mm x 1**
Limitation of CPU cooler
168mm
Expansion slot
5
Limitation of expansion card
369mm, width restriction –6.85" (174mm)**
Power supply
Standard ATX (PS2) (optional)
Limitation of PSU
180mm
Front I/O port
USB Type-C x 1
USB 3.0 x 2
Combo audio x 1
LED Indicators
Chassis
- Power ON: White
Accessing: White blinking
HDD Tray
- HDD Power LED: Green
HDD Access : Blue blinking
Dimension
217mm (W) x 405mm (H) x 451mm (D), 39.64 Liters
8.54” (W) x 15.94” (H) x 17.76” (D), 39.64 Liters
Net weight
7.3 kg
