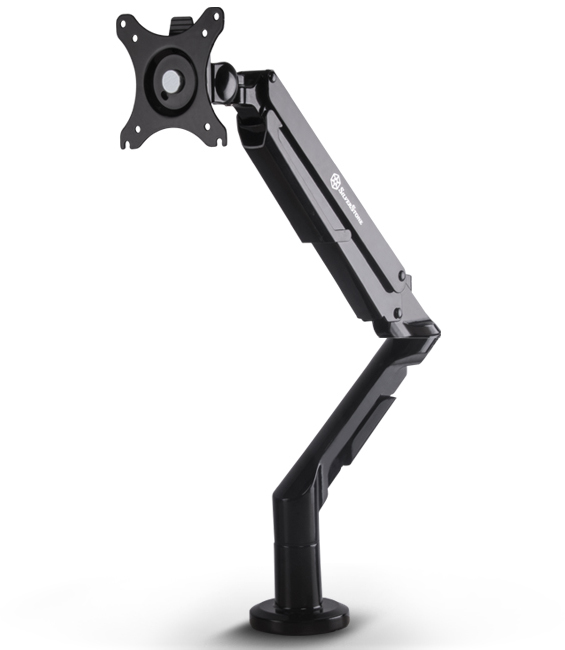

SilverStone ARM12B Gas Spring Swing Monitor Mount
Web ID: 26723
Gas spring ensures effortlessly raises and lowers your screen, Compatible with monitors up to 36 in size and 12KG (26.5 lbs.), Grommet/clamp mount bases for installation flexibility, Easy installation and cable management, Meet VESA Mounting Interface Standard. Arm is fixed and will only go up and down, will not move left and right.
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-ARM12B
GTIN: 844761017293
Manufacturer Website
Reach new heights
Hassle-free adjustments can be made for height and reach to provide various viewing angles for the monitors
Gas spring
Gas spring ensures effortlessly raises and lowers your screen, compatible with monitors up to 36” in size and 12KG
Flexible adjustment
Support wide range of adjustments, with multiple axes rotation to help you easily find the best position to share your screens with those around you.
Free the vision
Free combination from portrait to wide screen and more
Too Easy for installation
Cable management and grommet/clamp mount bases for installation flexibility
ARM12 tilt range
Robust aluminum alloy construction
Cable management cover
Tilt adjustment hinge
ARM12 landscape to portrait adjustment
Pivot joint
Allen key for tightening of ARM12
ARM12 demonstration
Easy cable management
Accessories
SPECIFICATIONS
| Model No. | SST-ARM12B |
| Color | Black |
| Material | Aluminum & steel |
| Support flat panel size | 17” ~ 36” |
| Swivel | ±90° |
| Tilt | +90° / -15° |
| Loading | 3 kg ~ 12 kg (6.6 lbs. ~ 26.5 lbs.) |
| Rotate(Pivot) | 360° |
| Extended arm provided | 2 |
| Installation | Clamp / grommet approach |
| VESA mount | 100 mm x 100 mm / 75 mm x 75 mm |
| Desk thickness support | ?100mm |
| Net weight | 2.9Kg (6.4 Ibs) |
| Dimension | 622mm (W) x 525mm (H) x 97mm (D) 24.49" (W) x 20.67" (H) x 3.82" (D) |
