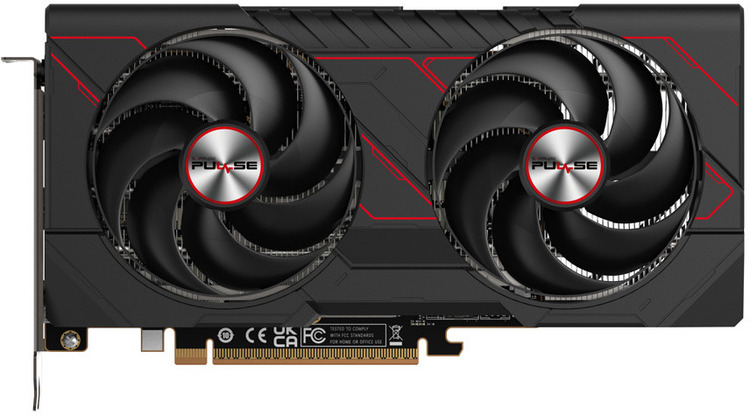

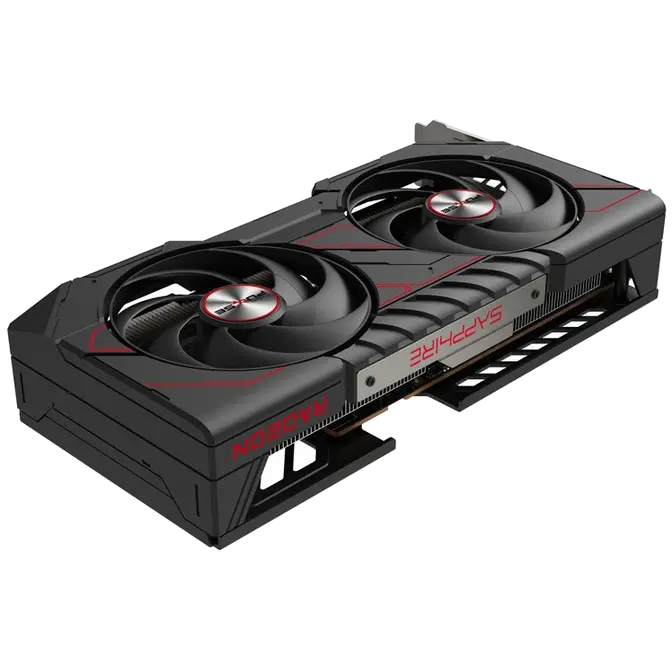

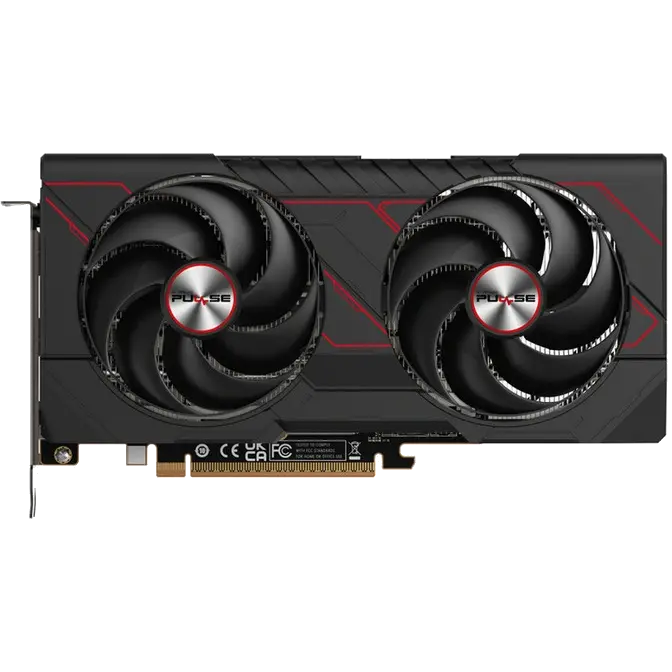

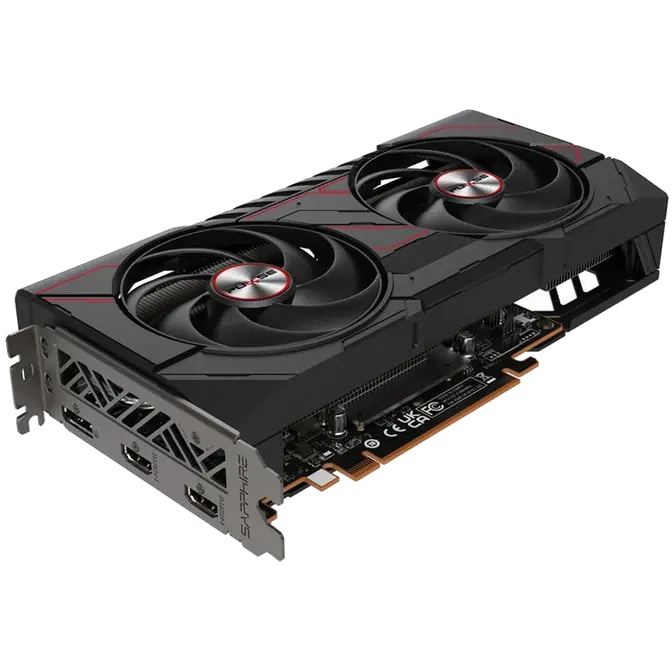

Sapphire PULSE AMD Radeon RX 9060 XT 16GB OC Graphics Card, Limit 1 per customer
Web ID: 47196
Chipset Manufacturer: AMD Chipset
AMD Series: Radeon RX 9060 XT
VRAM Size: 16GB GDDR6 20Gbps
Display Output: HDMI Out || DisplayPort Out
Max. Displays: 3 Displays
PCIe Size: PCIe 5.0x16
GPU Technology: FSR 4
Minimum PSU: 550 Watt
GPU Length: 240mm
Manufacturer Warranty: 3 Year
Manufacturer PN: 11350-03-20G
GTIN: 840777091784
Manufacturer Website
$799
| GPU | AMD Radeon™ RX 9060 XT |
| Architecture | AMD RDNA™ 4 |
| Engine Clock | Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz |
| Boost Clock Info | Max frequency under bursty workloads; varies by thermal conditions and workload |
| Game Clock Info | Expected clock under typical gaming workloads; varies by game |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerators | 64 |
| Memory Size/Bus | 16GB / 128-bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays Supported | Maximum 3 Displays |
| Max Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output Ports | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features | Honeywell PTM7950 TIM AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost |
| AMD Features | AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI) AMD HYPR-RX with AFMF 2 FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a Radiance Display™ Engine Fluid Motion Frames 2 Anti-Lag 2 AV1 Encode/Decode FidelityFX™ Technologies DirectX® 12 Ultimate Noise Suppression Freesync™ Infinity Cache 16GB GDDR6 / 128-bit Smart Technologies Adrenalin Edition™ Software |
| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing |
| Form Factor | 2.3 Slot, ATX Dimensions: 240(L) x 124(W) x 46.1(H) mm |
| Power Consumption | 170W Typical Board Power |
| Operating Systems | Linux®, Windows® 10, Windows® 11 (64-bit required) |
| System Requirements | Minimum 450W PSU 1 x 8-pin Power Connector PCIe x16 slot Minimum 8GB RAM (16GB recommended) |
