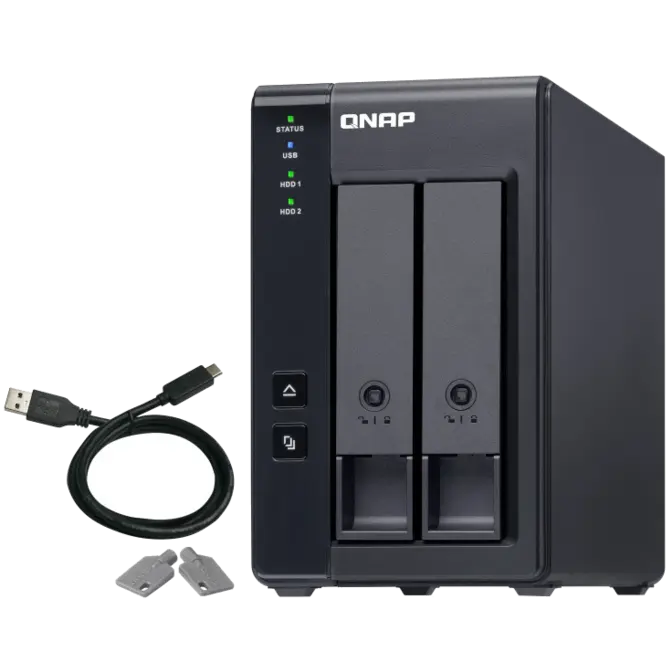

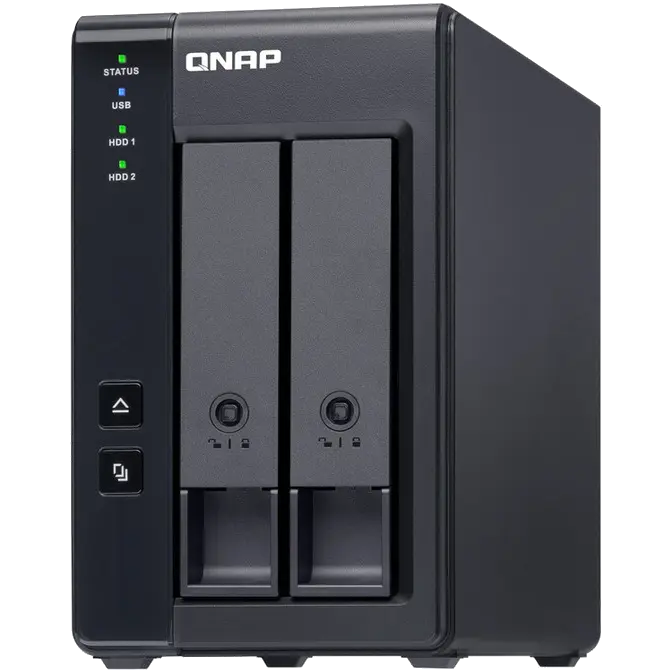

QNAP 2 Bay TR-002 Diskless USB-C Direct Attached Storage Expansion Unit
Web ID: 37719
The TR-002 USB 3.2 Gen 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.2 Gen 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
Manufacturer Warranty: 2 Year
Manufacturer PN: TR-002
Manufacturer Website
| CPU | Micro processor with hardware RAID |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. |
| Hot-swappable | Yes |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps |
| Form Factor | Tower |
| Dimensions (HxWxD) | 168.5 × 102 × 219 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 2.25 kg |
| Weight (Gross) | 2.25 kg |
| Max. number of HDDs/SSDs supported | 2 |
| Hard Drive Type | 2 x 2.5-inch or 3.5-inch SATA 6Gb/s |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | Minimum 36W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 2.98 W |
| Power Consumption: Operating Mode, Typical | 10.15 W
Tested with drives fully populated. |
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 2 |
