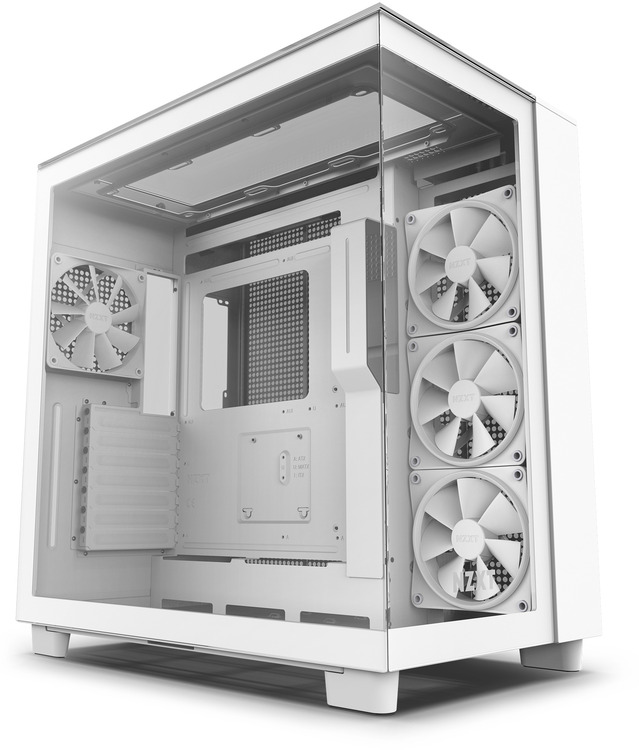

NZXT ATX H9 ELITE Case White CM-H91EW-01

Web ID: 35078

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components. CASH PRICE
Manufacturer Warranty: 2 Year
Manufacturer PN: CM-H91EW-01
GTIN: 810074842525
Manufacturer Website

$314SAVE $45

nzxt atx h9 elite case white cm-h91ew-01

KEY SPECS

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX

  • Enclosure Type:Mid-Tower

  • Case Material:SGCC Steel, Tempered Glass

DIMENSIONS

  • Height:495mm (With Feet)

  • Width:290mm

  • Depth:466mm

  • Weight:13.1 kg

COMPATIBILITY & CLEARANCE

  • CPU Cooler Clearance:Up to 165mm

  • GPU Clearance:Up to 435mm

  • PSU Clearance:200mm

  • Cable Management:91mm

FRONT I/O PORTS

  • USB 3.2 Gen 1 Type-A:2

  • USB 3.2 Gen 2 Type-C:1

  • Headset Audio Jack:1

EXPANSION SLOTS

  • Standard:7

  • Vertical:0

DRIVE BAYS

  • 2.5":4+2

  • 3.5":2

FAN SUPPORT

  • Side:3 x 120mm

  • Top:3 x 120mm / 2 x 140mm

  • Bottom:3 x 120mm / 2 x 140mm

  • Rear:1 x 120mm

  • Filters:All Air Intakes

RADIATOR SUPPORT

  • Side:Up to 360mm

  • Top:Up to 360mm

  • Bottom:Up to 360mm

  • Rear:Up to 120mm

FAN SPECS

  • Model:F120Q (Case Version)

  • Speed:1200 ± 240RPM

  • Airflow:62.18 CFM

  • Static:1.05 mm - H2O

  • Noise:25.1 dBA

  • Fan Connector:3-pin

FAN SPECS

  • Model:F120RGB Duo

  • Speed:500 ± 1800RPM

  • Airflow:48.58 CFM

  • Static:2.42mm - H2O

  • Noise:29 dBA

  • Fan Connector:4-pin

GENERAL

  • Warranty:2 Years

  • Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)

  • UPC:810074842525 (White) / 810074842518 (Black)

  • EAN:5056547202440 (White) / 5056547202433 (Black)
