Overview

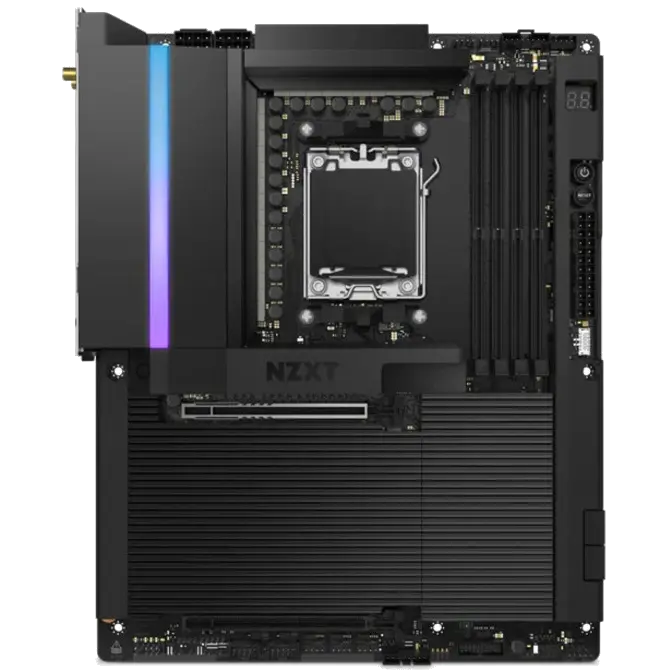

The N9 X870E delivers cutting-edge performance in a sleek design, making it an ideal foundation for modern AMD® gaming PCs. Built for the latest AMD® Ryzen™ processors, it features overclocking-ready power, optimized thermals, and PCIe 5.0 support, plus high-speed Wi-Fi 7, 5GbE, and USB 4 connectivity. The full-metal cover with subtle RGB lighting adds a touch of sophistication to any build.
- AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.
- Superior Power: A robust 20+2+1 power phase design with 110A SPS and an 8-layer, low-loss 2-oz copper PCB ensure exceptional stability and overclocking potential.
- Advanced Cooling: Stay cool under pressure with a VRM heatsink array with thermal pads, dual PWM fans, and fins, plus dedicated heatsinks and thermal pads for all M.2 slots.
- PCIe® 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and one PCIe® 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- High-Speed Storage: Four M.2 slots, including one PCIe® 5.0 and three PCIe® 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.
- Next-Gen Connectivity: USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.
- Sleek & Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
IMPORTANT: BIOS & Driver Updates Required
Update your BIOS and drivers for compatibility, stability, and peak performance.
- BIOS: Version 3.20 or later is required for the AMD® Ryzen™ 7 9800X3D. While your system will boot, update immediately to prevent memory-related issues. You can check your BIOS version in NZXT CAM.
- Drivers: Keep your chipset and system drivers updated for optimal performance and stability.
