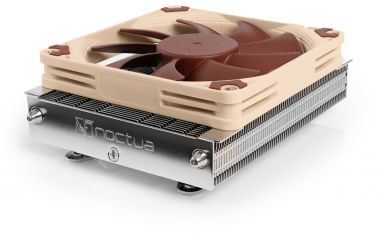

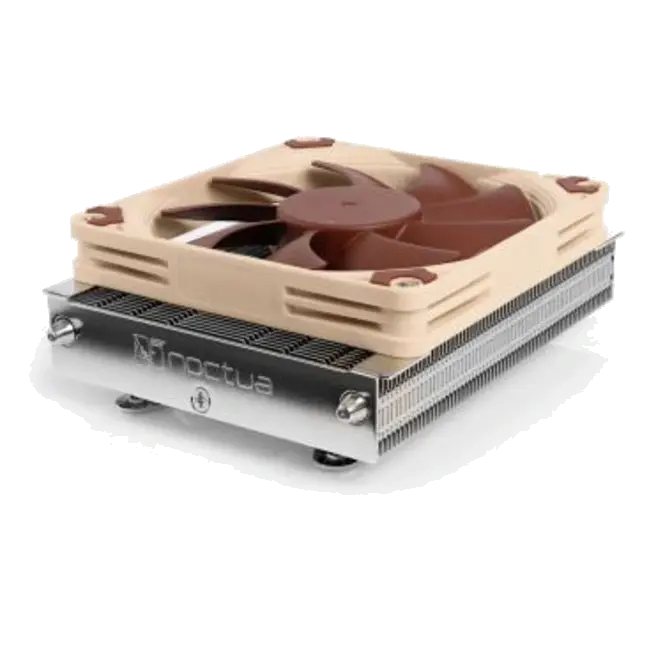

Noctua NH-L9A-AM5 Low Profile AMD CPU Heatsink and Fan

Web ID: 39304

CPU Socket: AMD AM5 (7000 Series)
Cooler Clearance: 37mm (Cooler Clearance)
Colour: Brown

Manufacturer Warranty: 6 Year
Manufacturer PN: NH-L9A-AM5
Manufacturer Website

New revision for AMD’s AM5 (LGA1718) socket

Since the original NH-L9a coolers for AM3 and AM4 have received more than 100 awards and recommendations from international hardware websites and magazines, the new AM5 revision builds on the same proven heatsink design to provide excellent low-profile cooling performance for AMD’s latest Ryzen processors.



Award-winning NH-L9a cooler

Tens of thousands of enthusiast users all over the world swear by the NH-L9a’s quality and performance. Recommended by more than 100 international hardware websites and magazines, it is renowned as being one of the best low-profile coolers on the market.



37mm low profile

Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.



100% RAM compatibility

The NH-L9a-AM5 has a compact footprint that fully complies with the socket keep-out zones specified by AMD. This means that neither the heatsink nor the fan overhang the RAM, so the cooler provides easy access to the slots and is fully compatible with tall memory modules.



100% compatibility with PCIe cards

Some AMD-based mini-ITX motherboards have the PCIe slot located close to the CPU socket zone. While larger coolers that exceed this zone may block the PCIe slot, the compact-sized NH-L9a-AM5 provides full compatibility with PCIe cards.



Easy access to near-socket connectors

Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient performance, but by protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX motherboards. Thanks to its compact footprint, the NH-L9a-AM5 provides easy access to all connectors and components.



NF-A9x14 PWM premium fan

The highly optimised, award-winning NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9a to stay remarkably quiet.



Optional NA-FD1 fan duct

The optional NA-FD1 fan duct kit allows for bridging the gap between the cooler and perforated side panels of Small Form Factor cases. This enables the cooler to draw in fresh air from the outside through the perforated panel, which can, depending on the setup, improve CPU temperatures by as much as 5°C or more.



Low-Noise Adaptor

Allowing the maximum speed of the NF-A9x14 PWM fan to be reduced from 2500 to 1800rpm, the included Low-Noise Adaptor (LNA) makes it possible to achieve near-silent setups with suitable CPUs/APUs that only create smaller heat loads.



Custom-designed SecuFirm2™ mounting for AM5

The NH-L9a-AM5 comes with a custom-designed SecuFirm2™ mounting system for AM5 (LGA1718). Allowing the heatsink to be fixed from the back of the motherboard through the holes of the stock backplate, it makes installation easier than ever, all while maintaining the trusted SecuFirm2™ quality.



Optional SecuFirm2™ mounting kit for AMD AM4

While the NH-L9a-AM5 includes mounting hardware for the latest AM5 socket, it can be retrofitted to AM4 motherboards using the optional NM-AM4-L9aL9i mounting kit, which can be ordered on Noctua’s website free of charge.



NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.



Soldered interface between heatpipes and fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-L9a’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.



6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9a package comes with a full 6-year manufacturer's warranty.

Cooler Specification

Socket compatibility



AMD AM5

Height (without fan)



23 mm

Width (without fan)



114 mm

Depth (without fan)



92 mm

Weight (without fan)



390 g

Height (with fan)



37 mm

Width (with fan)



114 mm

Depth (with fan)



92 mm

Weight (with fan)



465 g

Material



Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR



61

Max. TDP



see NSPR

Fan compatibility



92x92x14mm, 92x92x25mm

Scope of delivery



  • NF-A9x14 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ AM5 mounting kit
  • Screws for 92x92x25mm fans
  • Noctua Metal Case-Badge

Warranty



6 Years

FAN Specification

Model



Noctua NF-A9x14 HS-PWM

Bearing



SSO2

Max. rotational speed (+/- 10%)



2500 RPM

Max. rotational speed with L.N.A. (+/- 10%)



1800 RPM

Min. rotational speed @ 20% PWM (+/-20%)



600 RPM

Max. airflow



57,5 m³/h

Max. airflow with L.N.A.



40,8 m³/h

Max. acoustical noise



23,6 dB(A)

Max. acoustical noise with L.N.A.



14,8 dB(A)

Input power (max.)



2,52 W

Voltage range



12 V

MTTF



> 150.000 h
