MSI sTRX4 E-ATX Creator TRX40 DDR4 Motherboard

Web ID: 27064

AMD Socket sTRX4, TRX40 Chipset, 8 x DDR4 Memory slots, 4 x PCIe x16 slots (support x16/x8/x16/x8 mode), 3 x M.2 SATA/PCIe Slots, 6 x SATA 6Gbps, RAID 0, 1, 10, AMD Crossfire, NVIDIA SLI, 1 x 10G LAN + Gigabit LAN Ports, Wireless-AX, Bluetooth v5, 1 x USB 3.2 (Gen2x2 up to 20Gbps) Type-C, 1 x USB 3.2 (Gen2) Type-C (via internal header), 5 x USB 3.2 (Gen2) Type-A (via back panel), 8 x USB 3.2 (Gen1) (4 via back panel, 4 via internal header), 4 x USB 2.0 (via internal header), 7.1 Channel High Definition Audio with Optical Out, E-ATX Form Factor ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: Creator TRX40
GTIN: 824142199428
Manufacturer Website

$1249
DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

LEARN MORE
Cooling

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

LEARN MORE
HARDWARE

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

LEARN MORE
Compatibility

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

LEARN MORE
BIOS and Software

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready for everything.

LEARN MORE

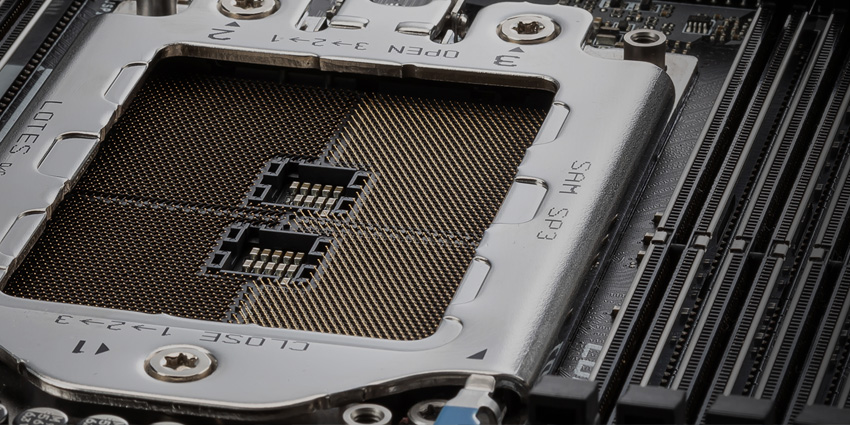

CPU

High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.

ddr
LEARN MORE
MEMORY

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

LEARN MORE
Storage

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LEARN MORE

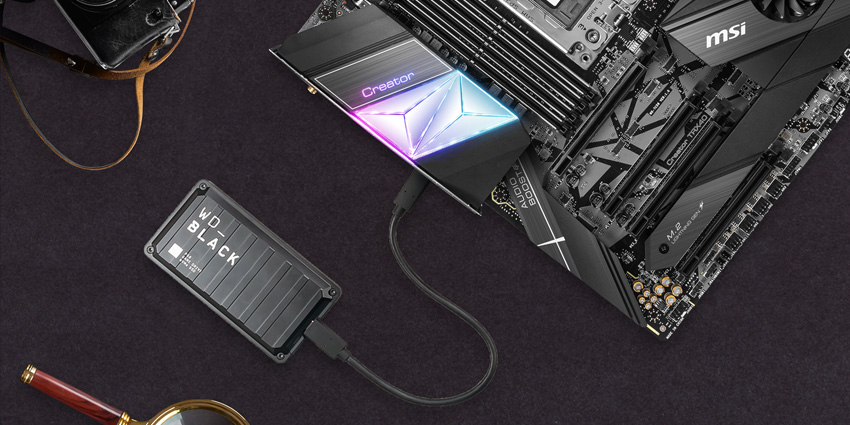

USB

Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 20Gb/s

IN-STUDIO ADVANTAGE

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

LEARN MORE
Audio

Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience. MSI motherboards let you enjoy breathtaking sound to create the most dynamic soundscapes.

LEARN MORE
CONNECTIVITY

Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the creators tunes.

LEARN MORE
Industrial Design

Creator TRX40 comes with a unique look and feel inspired by the craft of crystal. Packed with exclusive features to unleash the overall performance for incredible multiple cores CPU.

LEARN MORE
MYSTIC LIGHT

Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colors and sync across compatible devices.

LOYAL COMRADE

 With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

LEARN MORE
Components

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme

Processor

3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors



Chipset

AMD® TRX40 Chipset

Memory

  • 8x DDR4 memory slots, support up to 256G 1
  • Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
    • 1DPC 1R max speed 4666 MHz
    • 1DPC 2R max speed 4000 MHz
    • 2DPC 1R max speed 3866 MHz
    • 2DPC 2R max speed 3466 MHz
  • Quad channel memory architecture 2
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.
  2. Please refer the DIMM Slots section for more details.



Slots

  • 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)

Multi-GPU

  • Supports 3-Way NVIDIA® SLI Technology
  • Supports 3-Way AMDA® CrossFire Technology

Storage

AMD® TRX40 Chipset

  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (M2_3, Key M)
    • Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
  • 2x M.2 slots (M2_1 & M2_2, Key M)
    • M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
    • M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

RAID

AMD® TRX40 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® TRX40 Chipset

  • 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
  • 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors

3rd Gen AMD Ryzen Threadripper Desktop Processor

  • 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

ASMedia® ASM3242 Chipset

  • 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Audio

  • 1x Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
  • 1x Realtek® ALC4050H Codec
    • Supports front & rear panel Mic-in
    • Supports S/PDIF output

LAN

  • 1x Intel® I211AT Gigabit LAN controller
  • 1x Aquantia® AQC107 10-Gigabit LAN controller

Wireless

Intel® Wi-Fi 6 AX200

  • The Wireless module is pre-install in the M2_4 (Key-E) slot
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5
  1. Only support windows 10 64-bit

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin pump fan connector (supports up to 2A)
  • 4x 4-pin system fan connectors
  • 3x 4-pin extend fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 3x 2-pin Thermal Sensors connectors
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x LED demo connector
  • 1x JBLK_U pin header
  • 1x JBLK_D pin header
  • 1x OC retry pin header
  • 1x OC force enter pin header
  • 1x Slow mode booting jumper
  1. Provides additional power to PCIe x16 slots

Back panel ports

  1. Clear CMOS Button
  2. Wireless / Bluetooth
  3. Gigabit LAN
  4. 10G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen2 Type-A
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen2 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. USB 3.2 Gen1 Type-A
MSI creator trx40 back panel ports

Form Factor

  • E-ATX Form Factor
  • 12 in. x 10.9 in. (30.4 cm x 27.7 cm)
