MSI S1151 Mini-ITX Z370I Gaming Pro Carbon AC DDR4 Motherboard
Web ID: 22312
Intel Z370 Chipset, Socket 1151, 2 x DDR4 Dual Channel Memory, 1 x PCIe 3.0 x16 Port, 4 x SATA 6Gb/s, RAID 0, RAID1, RAID 5 and RAID 10, Gigabit LAN, Displayport, HDMI, Wireless-AC, Bluetooth v4.2, 1 x USB 3.1 Type C, 1 x USB 3.1 Type A, 4 x USB 3.0 (2 via Back panel, 2 via Internal Header), 4 x USB 2.0 (2 via Back panel, 2 via Internal Header), 7.1 Channel High Definition with Optical Out, Mini-ITX Form Factor ONLY WHILE STOCKS LAST!
Manufacturer PN: Z370I-GAMING-PRO-CARBON-AC
Warranty: 3 Year
Z370I GAMING PRO CARBON AC
PERFORM IN STYLE
- Lightning USB 3.1 Gen2
- Intel GAMING LAN
- High-res DisplayPort / HDMI
- Intel Wireless / Bluetooth
- Golden audio jacks with S/PDIF
- Gaming heatsinks
For maximum cooling and performance
- Z370 Chipset
Ready for 6 cores CPU and higher performance
- DDR4 Boost with Steel Armor
Optimized traces and isolated memory circuitry
- LGA 1151 Socket
Supports Intel 8th Gen 6 cores CPU
- PCI-E Steel Armor
Protecting VGA cards against bending and EMI
- Audio Boost 4 with amplifier
Optimized gaming audio using best components, with Nahimic 2+
- Turbo M.2
NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
PERSONALIZE YOUR GAMING RIG
Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!
STAY COOL WHILE GAMING
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
YOUR IN-GAME ADVANTAGE
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
BE THE FIRST ON THE BATTLEFIELD
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
IMMERSE YOURSELF INTO VIRTUAL WORLDS
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
SOUND THAT PULLS YOU INTO THE GAME
Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
DOMINATE THE GAME WITH THE LOWEST LATENCY
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.
DESIGNED FOR LIMITLESS TUNING
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

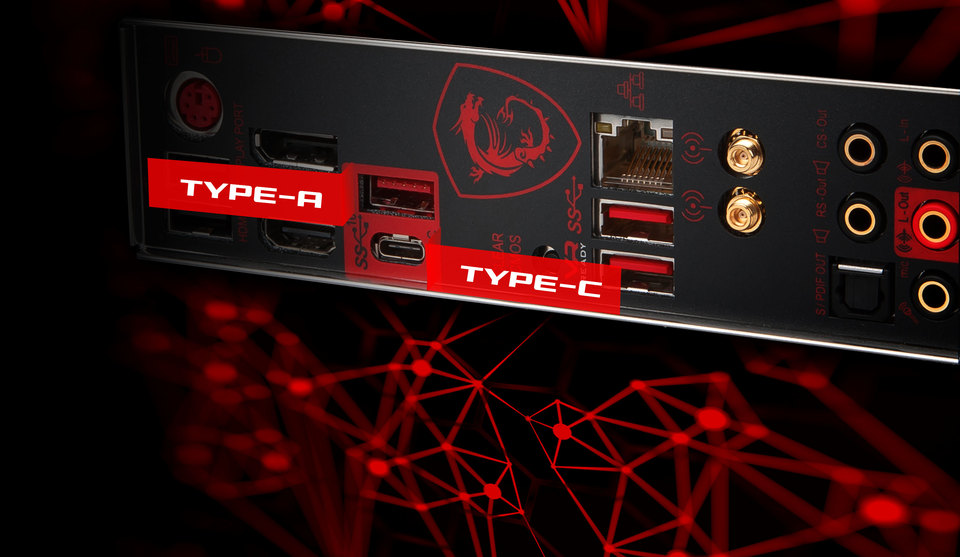

MAXIMIZE YOUR USB DEVICE PERFORMANCE
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.
QUALITY & PROTECTION
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.
A GAMERS' BIOS
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.
• Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors for Socket LGA1151
• Intel® Z370 Chipset
• 2 x DDR4 memory slots, support up to 32GB
- Supports 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory*
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
• 1 x PCIe 3.0 x16 slot
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
• 1 x DisplayPort port, supports a maximum resolution of 4096X2304@24Hz, 3840X2160@60Hz,1920X1200@60Hz
• Intel® Z370 Chipset
• 4 x SATA 6Gb/s ports*
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• 1 x M.2 slot (M2_1, Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready
• ASMedia® ASM3142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• Intel® Z370 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
Wirsless LAN & Bluetooth®
• Intel® Dual Band Wireless-AC 8265 card
- The Wireless module is pre-install in the M2_2 (M.2 Key E) slot.
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
• 1 x Intel I219-V Gigabit LAN controller
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x 5050 RGB LED strip 12V connector
- 1 x CORSAIR Individually Addressable RGB LED strip 5V connector
Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DisplayPort port
- 1 x HDMI™ port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x Clear CMOS button
- 1 x LAN (RJ45) port
- 2 x USB 3.1 Gen1 Type-A ports
- 2 x Wi-Fi Antenna connectors
- 5 x OFC audio jacks
- 1 x Optical S/PDIF OUT connector
• 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
• Mini-ITX Form Factor
• 4 mounting holes
* MSI® does not guarantee the risks or damages caused by changing the cover.
** These pictures are for reference only and may vary without notice.
