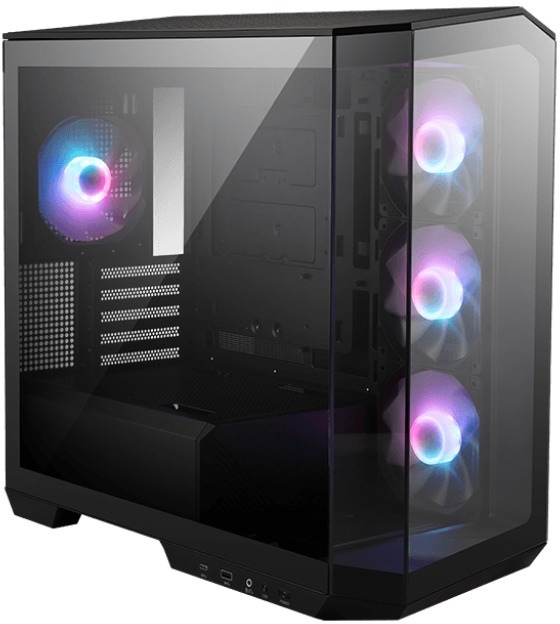

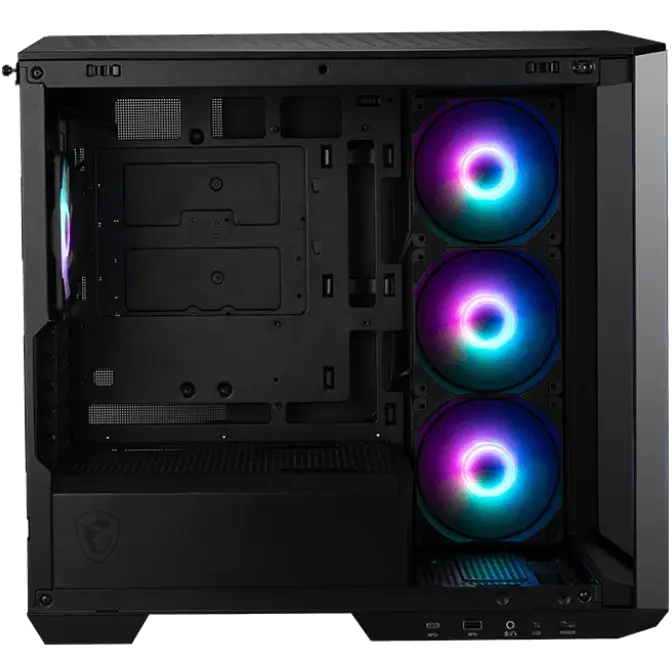

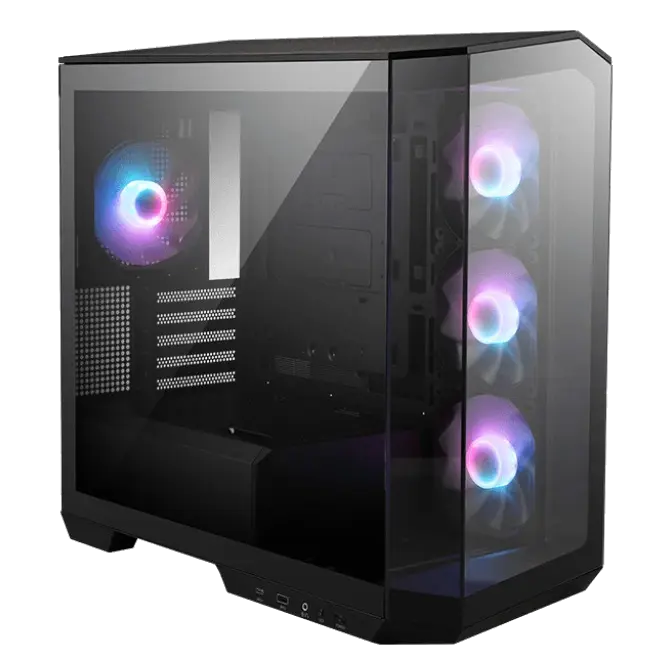

MSI MAG PANO M100R PZ MicroATX Black Case
Web ID: 38248
Compatible with Certain Hidden-Connector Motherboards
Micro-ATX Back-connect motherboard supported.Supports up to 360 mm AIO liquid cooler on the top.
270-degree panoramic tempered glass.
Supports up to 10 x 120 mm system fans.
Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
The Magnetic Dust Filter at the bottom being easily removed for cleaning.
DIY Friendly cables make your DIY process easier and create more possibilities to your system.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: MAG PANO M100R PZ BLACK
GTIN: 824142337707
Manufacturer Website
$159
| PRODUCT NAME |
MAG PANO M100R PZ / BLACK |
| FORM FACTOR |
Micro- ATX Tower |
| I/O PORTS | 1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
| DRIVE MOUNT SUPPORT |
1 x 2.5”, 1 x 2.5”/3.5” combo, (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| CASE EXPANSION SLOTS |
5 |
| MAXIMUM PSU LENGTH |
200 mm / 7.87 inches |
| MAXIMUM GPU LENGTH | 390 mm / 15.35 inches *Support horizontal installation only. |
| MAXIMUM CPU COOLER LENGTH |
175 mm / 6.9 inches |
| LIGHTING | Side: 3 x ARGB Fan (Reverse-blade) Rear: 1 x ARGB Fan |
| POWER SUPPLY |
ATX |
| FAN SIZE SUPPORT | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
| PRE-INSTALL FAN | Side: 3 x 120 mm Rear: 1 x 120 mm |
| RADIATOR LAYOUT | Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
| SUPPORT MB FORM FACTOR |
M-ATX (Back-connect supported) / ITX |
| DIMENSION |
440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
| WEIGHT |
TBD |
| GROSS WEIGHT |
TBD |
