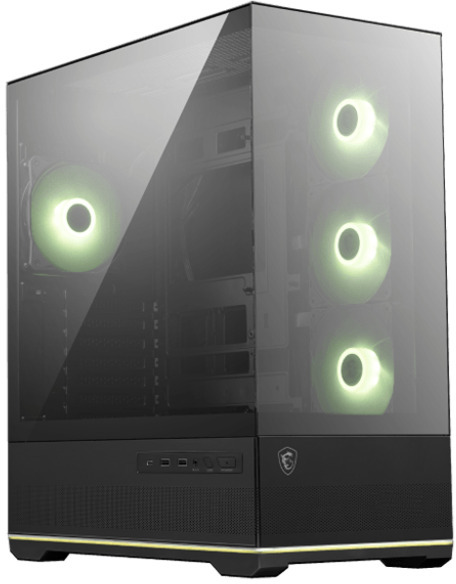

MSI MAG PANO 110R PZ ATX Mid-Tower Case
Web ID: 45607
Case Type: ATX Case
Motherboard Form Factor: Mini-ITX || Micro-ATX || ATX
PSU Form Factor: ATX (PSU)
Cooler Clearance (mm): 160mm (Cooler Clearance)
GPU Clearance (mm): 400mm Max GPU Length
USB: USB 3.2 Type-A || USB 3.2 Type-C
Drive Bays: 2.5" Drive Bay || 3.5" Drive Bay
Radiator Size: 120mm || 140mm || 240mm || 280mm || 360mm
Colour: Black
Manufacturer Warranty: 1 Year
Manufacturer PN: MAG PANO 110R PZ
GTIN: 824142396322
Manufacturer Website
$119SAVE $20
| Product Name | MAG PANO 110R PZ / WHITE |
|---|---|
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support | Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |
| I/O Ports | 1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED Button 1 x Power Button |
| Drive Mount Support | 2 x 2.5“ 2 x 3.5“ 2 x 2.5"/3.5" combo |
| Expansion Slots | 7 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 160 mm / 6.30 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Size Support | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm (Above the power shroud) |
| Pre-installed Fan Size | Side: 3 x 120 mm Rear: 1 x 120 mm |
| Pre-installed Fan Type | Side: 3 x ARGB Fan (Reverse Blades Fan) Rear: 1 x ARGB Fan |
| Radiator Size Support | Top: 120 / 140 / 240 / 280 / 360 mm Front: NA Rear: 120 mm Side: NA Bottom: NA |
| Dimensions (DxWxH) | 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches |
