MSI AM4 MicroATX A320M-A PRO MAX DDR4 Motherboard

Web ID: 27012

AMD Ryzen Socket AM4, AMD A320 Chipset, 2 x DDR4 memory slots, support up to 32GB, 1 x PCIe 3.0 x16 slot, 1 x PCIe 3.0 x1 slots, 1 x HDMI, 1 x DVI, 1 x M.2 SATA/PCIe Port, 4 x SATA 6Gb/s ports, RAID 1, 0, 10, 6 x USB 3.2 (Gen1) (4 via back panel, 2 via internal header), 6 x USB 2.0 (2 via back panel, 4 via internal header), 7.1-Channel High Definition Audio, Gigabit LAN, MicroATX Form Factor
Manufacturer Warranty: 3 Year
Manufacturer PN: A320M-A PRO MAX
GTIN: 824142189719
Manufacturer Website

$105
DIY FRIENDLY

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

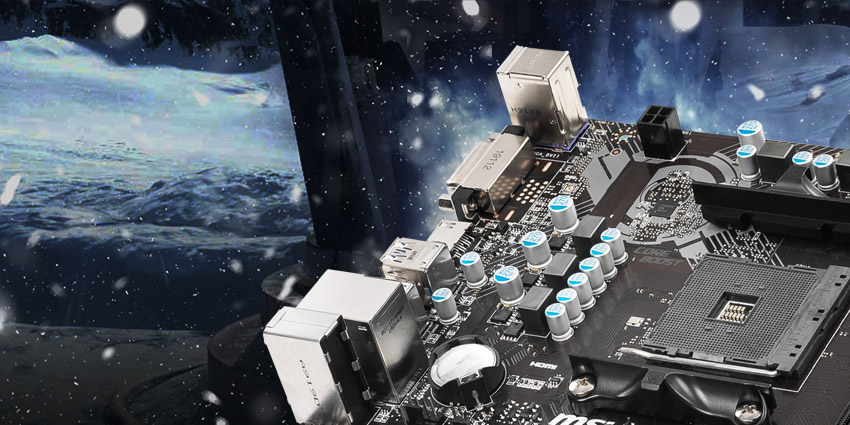

A320M A Pro Max cooling background image
LEARN MORE
Cooling

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

LEARN MORE
Compatibility

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

LEARN MORE
BIOS and Software

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

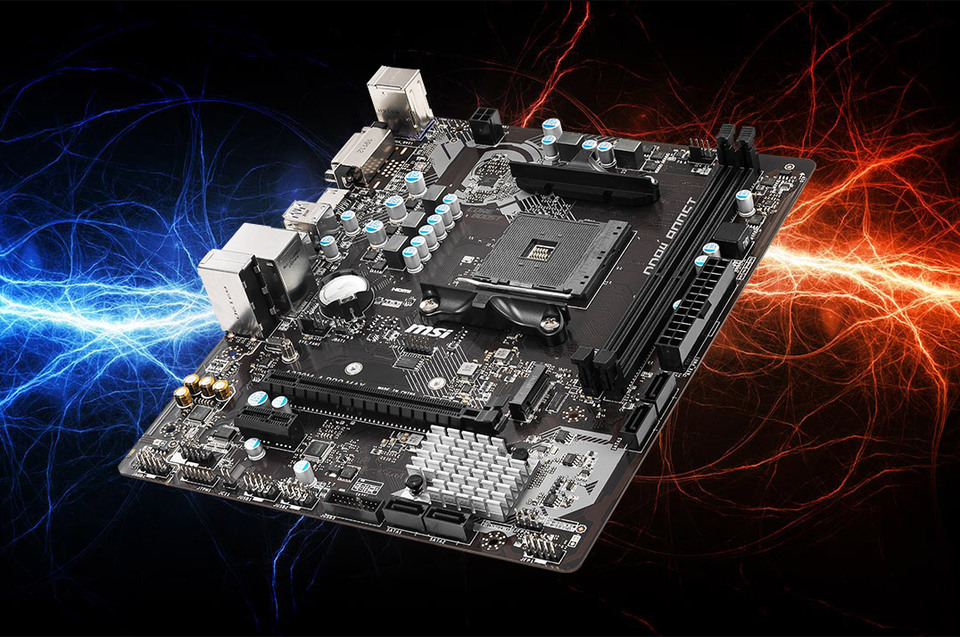

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

LEARN MORE

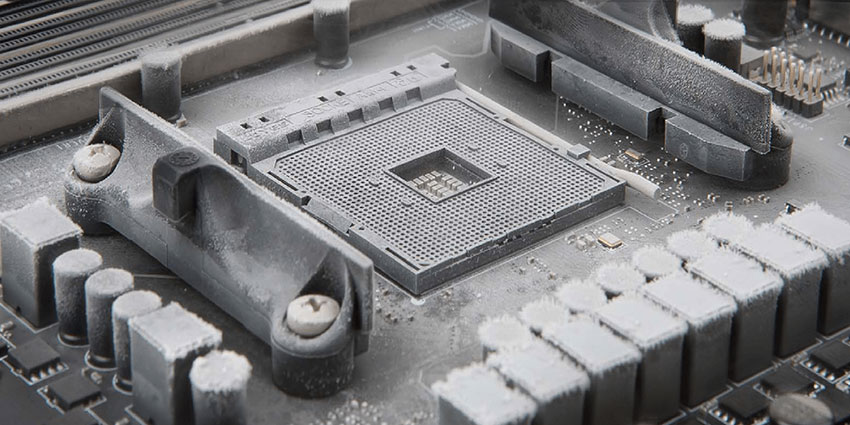

CPU

Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.

LEARN MORE
MEMORY

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

LEARN MORE

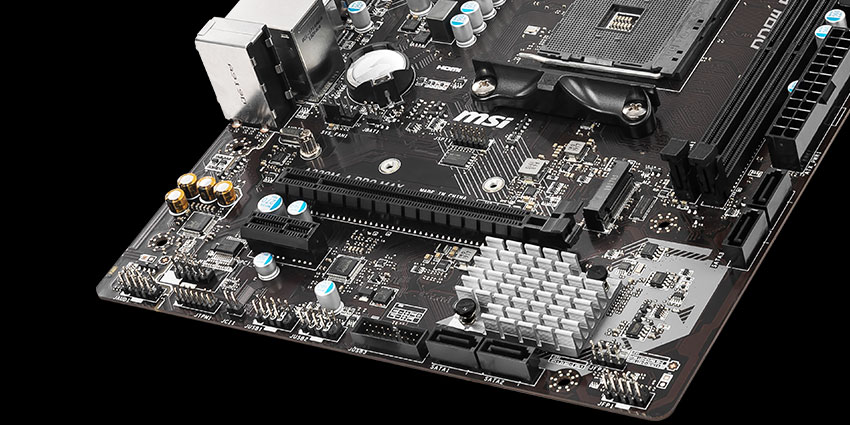

Storage

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

IN-STUDIO ADVANTAGE

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® A320 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB
  • Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory

Slots

  • 1 x PCIe 3.0 x16 slot
    • Supports x16 speed
      • 1st, 2nd and 3rd Gen AMD Ryzen™
    • Supports x8 speed
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
      • A-series
      • Athlon™ X4
    • Supports x4 speed
      • AMD® Athlon™ with Radeon™ Vega Graphics
  • PCIe 2.0 x1 slot

Onboard Graphics

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2
  1. Only support when using the processor with Graphicss
  2. Maximum shared memory of 2048 MB

Storage

AMD® A320 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 and SATA 6Gb/s
      • 1st, 2nd and 3rd Gen AMD Ryzen™
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
    • Supports PCIe 3.0 x2 and SATA 6Gb/s
      • AMD® Athlon™ with Radeon™ Vega Graphics
      • A-series
      • Athlon™ X4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices

USB

AMD® A320 Chipset

  • 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper

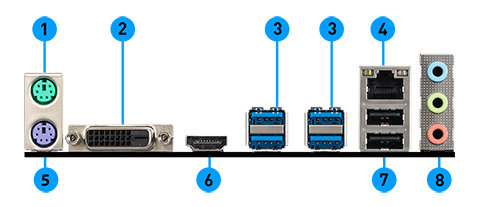

Back panel ports

  1. Mouse
  2. DVI-D Port
  3. USB 3.2 Gen1
  4. LAN Port
  5. Keyboard
  6. HDMI Port
  7. USB 2.0 Ports
  8. HD Audio Connectors
MSI A320M-A PRO MAX back panel ports

Dimensions

  • 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
  • m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
