Table-mounted

• Height: 11.77 in (299 mm)
• Width: 6.65 in (169 mm)
• Depth: 6.65 in (169 mm)

Grommet-mounted

• Height: 11.46 in (291.2 mm)
• Width: 3.68 in (93.4 mm)
• Depth: 3.68 in (93.4 mm)
• Grommet hole 25 mm or larger

Weight: 3.3 lbs (1.5 kg)

Power type: 802.3at Type 2 "PoE+" power or equivalent power supply (user supplied)

CAT Cable: Cat6 or greater

Maximum CAT Cable Length: Between Sight Dongle and Sight: 131.2 ft (40 m)

USB Mode: Windows 10, Windows® 11 or later, macOS (two most recent versions)

Appliance Mode: Room solution software license (not included), Rally Bar or Rally Bar Mini

Latest version of Logitech Collab OS

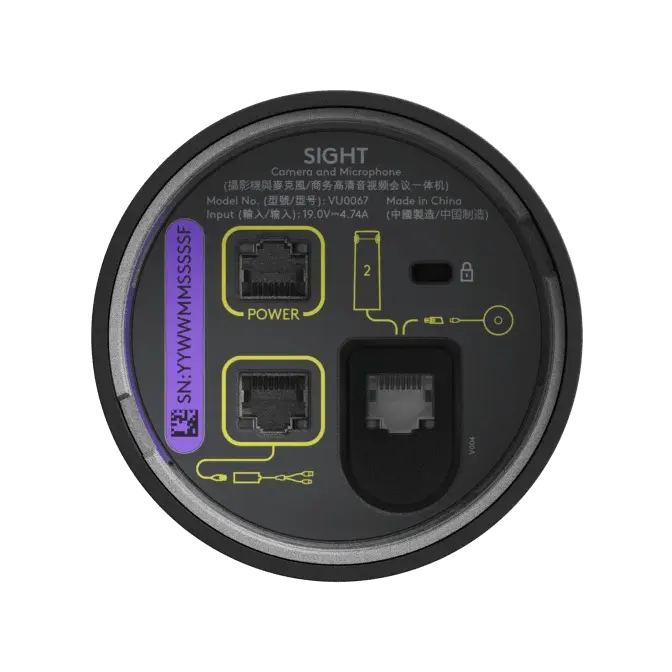

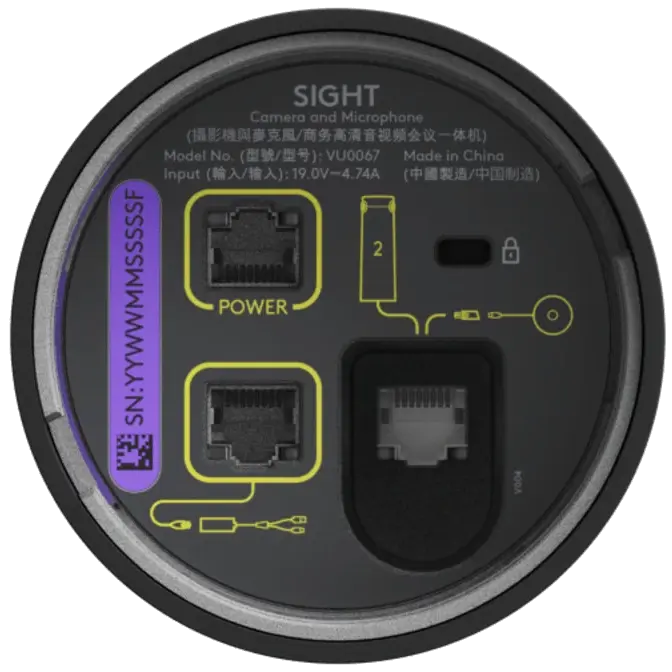

PORTS AND INTERFACES

• 1 x RJ45 (audio/video data over USB)
• 1 x RJ45 (Power Over Ethernet)
• 1 x RJ45 (Daisychain - Rally Mic Pods)

Video Platform Compatibility

• Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.

General Specifications

• Built-in Components
  • 7 beamforming microphones, dual lens camera, Logitech Collab OS platform
• Device Management
  • Logitech Sync
• Camera
  • Sensor resolution: 4K
  • Zoom: X1
  • Horizontal Field of View: 315°
  • Vertical Field of View: 97°
  • Diagonal Field of View: 180°
  • Focal Length: 0.07 in (1.87 mm)
  • Depth of Field: 19.69in (50 cm)-16.41ft (5 m)
  • Frame Rate (max): 60 fps
• Microphone Specifications
  • Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
  • Pickup Range: 7.55 ft (2.3 m) radius
  • Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
  • Frequency Response: 90Hz – 16 kHz
  • Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa
  • Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
  • Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
  • Additional mic pods
    • Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs
    • Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs
    • Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs

ENVIRONMENTALS

• Operating Temperature: 0 to 40°C @ 10% - 90% RH (Non-condensing)
• Storage Temperature: -40 to 70°C @ 10% - 90% RH (Non-condensing)

• Sight camera
• Sight dongle
• Mic pod dongle
• Privacy shade
• Grommet mount
• Table mount
• Tripod mount
• User documentation
•

Standard: 2-year limited hardware warranty included
Extended: Additional one- and three-year extended warranties available at the time of hardware purchase.
Contact your reseller for availability.

• Graphite : 960-001510
• White : 960-001503
