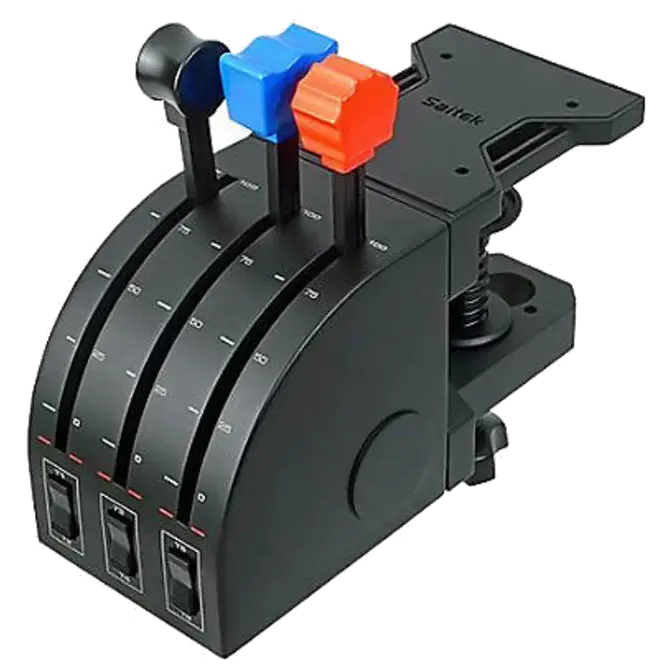

Logitech G PRO Flight Throttle Quadrant 945-000032
Web ID: 22373
If you like to fly multi-engine aircraft, most flight sim controllers leave you a couple throttles short. Flight Throttle Quadrant is the solution, providing three extra levers to control even more engines, flaps, gear, spoilers or any other programmable axes. In addition, three momentary, two-way toggle switches on the quadrant's base create a total of nine programmable commands. Add it to Logitech G Flight Yoke System for double the throttle axes.
Manufacturer Warranty: 2 Year
Manufacturer PN: 945-000032
GTIN: 097855127976
Manufacturer Website
THE MULTI-ENGINE AIRCRAFT ALLY
If you like to fly multi-engine aircraft, most flight sim controllers leave you a couple throttles short. Flight Throttle Quadrant is the solution, providing three extra levers to control even more engines, flaps, gear, spoilers or any other programmable axes. In addition, three momentary, two-way toggle switches on the quadrant's base create a total of nine programmable commands. Add it to Logitech G Flight Yoke System for double the throttle axes.
FEATURES
IDEAL FOR SIDE-BY-SIDE CONFIGURATION
Add to Logitech G Flight Yoke System
Interchangeable lever heads help you create a custom configuration of throttle, flaps, mixture, and prop pitch. Remove the lever tops and then group the controls just how you want them.
SECURE WITH ADJUSTABLE MOUNTS
Rugged Fastening Hardware Included
Logitech G Throttle Quadrant is equipped with adaptable mounting clamps which provide the freedom to configure your kit in any manner you see fit. Whether on top of your desk or clamped to the front, you can securely place the controls exactly where you want them.
FULLY CUSTOMIZABLE FOR ALL FLYING CONDITIONS
Modular and Interchangeable
The Logitech G range of instruments can be situated one on top of another or side-by-side. Want the Radio Panel above the Multi Panel? Done. Want your Switch Panel to the left of your Yoke? Go for it. Easy-to-use mounting brackets provide the means to arrange your flight simulation setup in a configuration only limited by your imagination.
SIMPLE INSTALLATION
Plug-and-Play All the Way
No need to load drivers or install extra software. Pro Flight works with Windows 7, 8.1 and 10 and is compatible with your favorite flight simulation software for PCs including FSX - Flight Simulator X, X-Plane 10, and Prepar3D® 2.2.
LEARN TO FLY AN MD80
Simulate the Actual Aircraft with This Kit
For a quick simulation configuration to get you in the pilot’s seat of an MD80 twin-engine commercial jetliner, this bundle is the recipe:
- 1 Flight Yoke System
- 2 Flight Instrument Panels
- 1 Flight Switch Panel
- 1 Flight Radio Panel
- 1 Flight Multi Panel
PART NUMBER
- 945-000032
WARRANTY INFORMATION
- 2-Year Limited Hardware Warranty*
*Special Cases: Before April 2017, Saitek products will be 90-day warranty.
SYSTEM REQUIREMENTS
- Smart Technology
Windows® 10, Windows 8.1, Windows 7
1-USB 2.0 Port
Internet connection for optional software download
PACKAGING CONTENT
- Flight Throttle Quadrant
Extra interchangeable lever heads
User documentation
PHYSICAL SPECIFICATIONS
- Flight Throttle Quadrant:
Length: 11 – 17.5 cm
Width: 16.5 – 17.5 cm
Height: 9 cm
Weight (w/o clamps): 501 g
Weight: 694 g
Cable Length (Power/Charging): 1.8 m
Flight Quadrant Clamp:
Length: 10.8 cm
Width: 11 cm
Height: 9 cm
CONTROLLER SPECIFICATIONS
- Connection Type: USB
USB Protocol: USB 2.0
USB Speed: Full Speed
Indicator LIghts (LED): Yes
LCD Display: No
USB Ports (Built-in): No
Backlighting: No
