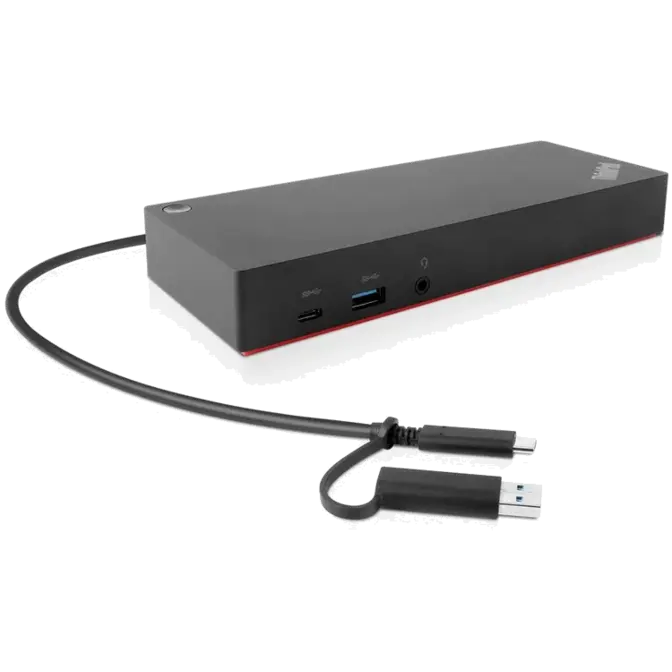

Lenovo ThinkPad USB C with USB A Docking Station 40AF0135AU

Web ID: 27321

The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments.
Manufacturer Warranty: 3 Year
Manufacturer PN: 40AF0135AU
GTIN: 191999788427
Manufacturer Website

$269
The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. It features enterprise-class manageability like PXE boot and MAC address pass-through. The ThinkPad Hybrid USB-C with USB-A Dock offers three high-speed USB 3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. With the included USB-C to USB-A adaptor, it can also provide port replication to non-Lenovo or non-USB-C notebooks.
Color Black
Max Number of External Monitors 2
Weight 480 g (1.05 lbs)
Refresh Rate DisplayPort: 3840 x 2160 @ 60 Hz; HDMI: 3840 x 2160 @ 60 Hz; Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
AC Plug Australian Standard Plug Type I
Hardware Requirements Machine with full function USB-C port or USB 3.0 Port
Output Power 90 W
Brand ThinkPad
OS Requirements Windows 10, Windows 7
Agency Approvals BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI
Audio Ports 1 x 3.5 mm Stereo/Mic Combo Port
Charging Port ThinkPad Slim-tip Port
USB Ports 1 x USB-C (Data, 5V/3A power); 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on); 2 x USB 2.0
Video Ports 2 x DisplayPort 1.2; 2 x HDMI
Package Type Brown box
Warranty Period 3 Years
Maximum Operating Temperature 35 degrees Celsius (95 degrees Fahrenheit)
Minimum Operating Temperature 0 degrees Celsius (32 degrees Fahrenheit)
Driver Needed Preloaded in select ThinkPad laptops
Input Power 135 W
Power Button Yes
Power Delivery Yes

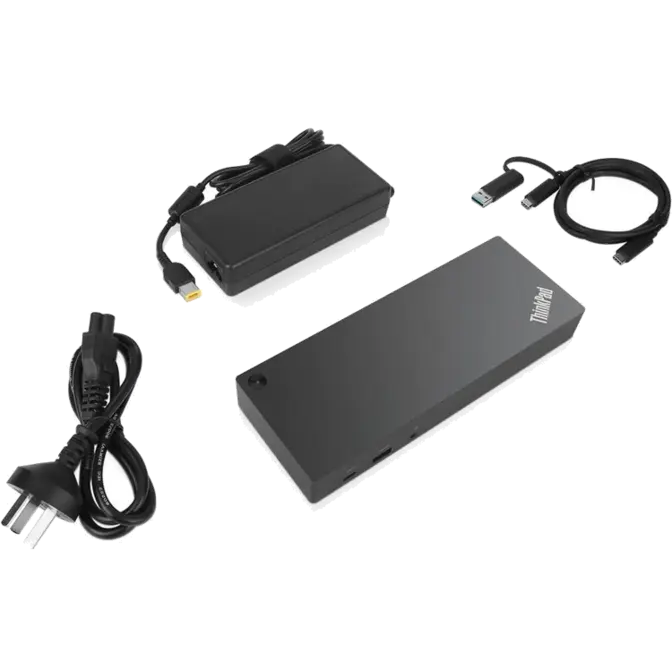

Shipment Group ThinkPad Hybrid USB-C with USB-A Dock;ThinkPad Slim-tip 135 W AC power adapter;1m USB-C Cable with USB-A Adapter;Power cord;Product information, safety and warranty poster
Compatibility E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Supported Operating Systems OS Independent
