Lenovo ThinkCentre M70S G5 Core i5 SFF Desktop Win 11 Pro 12U30010AU
Web ID: 44042
CPU Generation: Intel Core i5-14400 || 10 Cores || Up to 4.7GHz
GPU: Intel UHD iGPU
RAM Size: 16GB DDR5
Storage Size: 512GB Solid State Drive
Video Interface: 1 x HDMI || 1 x DisplayPort
USB: 8 x USB 3.2 Type-A || 1 x USB 3.2 Type-C
LAN Speed: 1 Gigabit
Operating System: Windows 11 Pro
Manufacturer Warranty: 3 Year Onsite
Manufacturer PN: 12U30010AU
GTIN: 198154297510
| PERFORMANCE | |
| Processor |
Intel® Core™ i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB |
| Graphics |
Integrated Intel® UHD Graphics 730 |
| Chipset |
Intel® Q670 Chipset |
| Memory |
2x 8GB UDIMM DDR5-4800 |
| Memory Slots |
Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Support |
Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each |
| Card Reader |
None |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers |
1Wx1 |
| Power Supply |
260W 90% |
| DESIGN | |
| Keyboard |
USB Traditional Keyboard, Black, English |
| Mouse |
USB Calliope Mouse, Black |
| Optional Bay |
None |
| Expansion Slots |
|
| Case Color |
Black |
| Stand |
None |
| Dust Filter |
None |
| Pen |
Pen Not Supported |
| Form Factor |
SFF (8.2L) |
| Dimensions (WxDxH) |
92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches) |
| Weight |
Around 5.3 kg (11.7 lbs) |
| CONNECTIVITY | |
| Ethernet |
Integrated 100/1000M |
| WLAN + Bluetooth |
None |
| WWAN |
Non-WWAN |
| Front Ports |
|

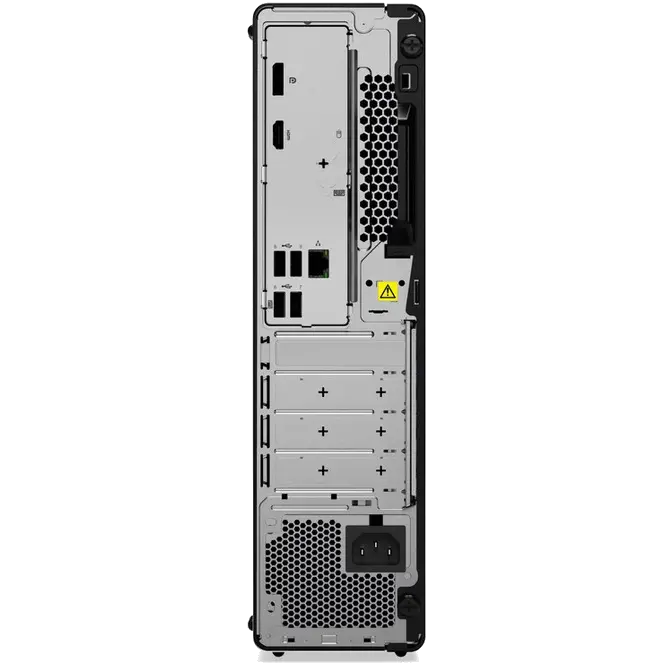

| Rear Ports |
|
| Optional Rear Ports (configured) |
None |
| SECURITY & PRIVACY | |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader |
No fingerprint reader |
| Physical Locks |
|
| Smart Cable Clip |
None |
| Chassis E-Lock |
None |
| Chassis Intrusion Switch |
None |
| MANAGEABILITY | |
| System Management |
Non-vPro® |
| SERVICE | |
| Base Warranty |
3-year, Onsite |
| Included Upgrade |
None |
| CERTIFICATIONS | |
| Green Certifications |
|
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog) |
| SOFTWARE | |
| Operating System |
Windows® 11 Pro, English |
| Bundled Software |
None |
