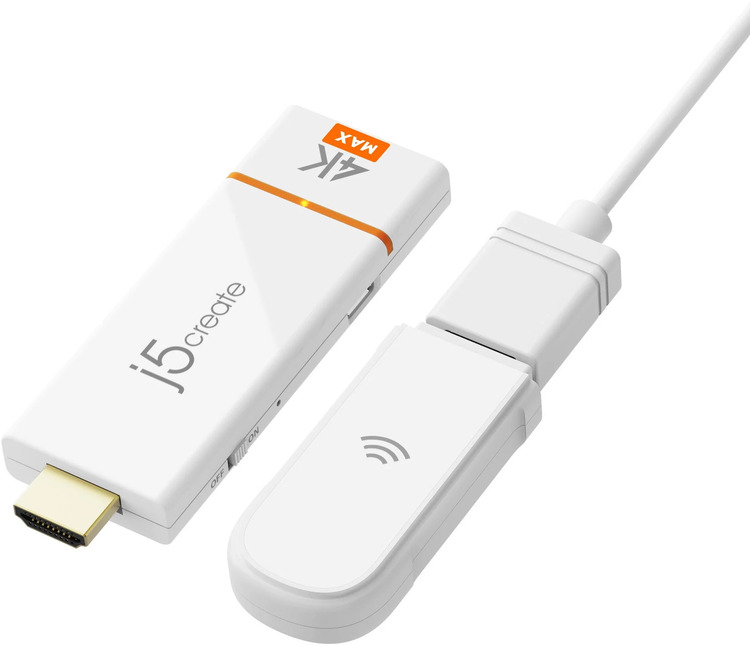

j5create JVAW76MAX ScreenCast 4K Max Wireless Display Adapter
Web ID: 47817
Display Output: HDMI Out
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: JVAW76MAX
Manufacturer Website
$199
Hardware
| Attribute | Details |
|---|---|
| Host Connector | HDMI™ male |
| Infrared | N/A |
| LED Indicators | N/A |
| Ports | N/A |
| Power Source | USB™ micro-B to USB™ Type-A male |
| Warranty | 1 Year Limited |
Performance
| Attribute | Details |
|---|---|
| Audio Channel | 2.1 via HDMI™ |
| ESD Protection | N/A |
| HDCP Compliance | N/A |
| HDMI Compliance | HDMI™ v1.4 |
| Infrared Return Frequency | N/A |
| OVP Protection | N/A |
| RF Output Power | N/A |
| Security - Encryption | WPA2 |
| Supported Resolution - Output | 3840 x 2160 1920 × 1080 1280 × 720 |
Physical Specifications
| Attribute | Details |
|---|---|
| Cable Length | 39 in. (100 cm) |
| Color | White |
| Connector Type | Plastic |
| Operating Humidity | < 85% non-condensing |
| Operating Temperature | +14 to +104°F (-10 to +40°C) |
| Product Depth | 0.43 in. (11 mm) |
| Product Height | 3.74 in. (95 mm) |
| Product Weight | 2.8 oz (79.5g) |
| Product Width | 1.25 in. (32 mm) |
| Storage Humidity | < 85% non-condensing |
| Storage Temperature | -4 to +122°F (-20 to +50°C) |
Wireless Protocols
| Attribute | Details |
|---|---|
| Antenna Type | External antenna |
| Channel Width | 20 MHz, 40 MHz |
| Frequency | 2.4 GHz, 5 GHz |
| Range | Up to 15 meters |
| Standard | IEEE 802.11ac |
Package Contents
| Item |
|---|
| 1 - JVAW76MAX ScreenCast 4K Max Wireless Display Adapter |
| 1 - External antenna with USB™ Type-A power cable (39") |
| 1 - HDMI™ extension cable (5.11") |
| 1 - Quick Installation Guide (QIG) |
