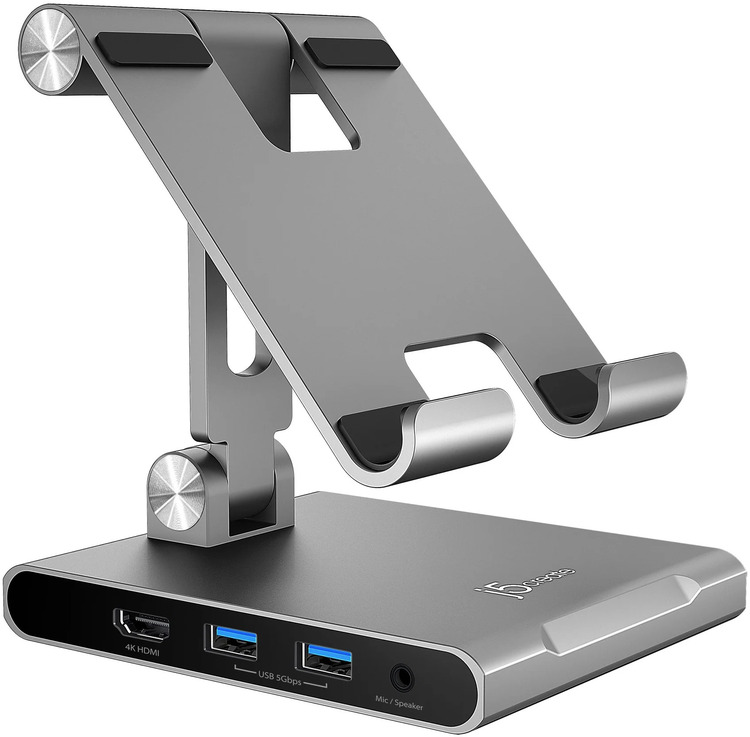

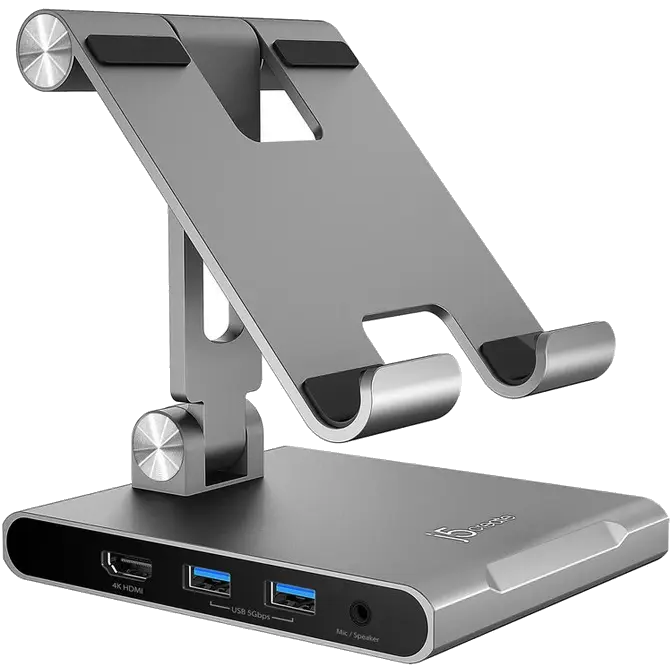

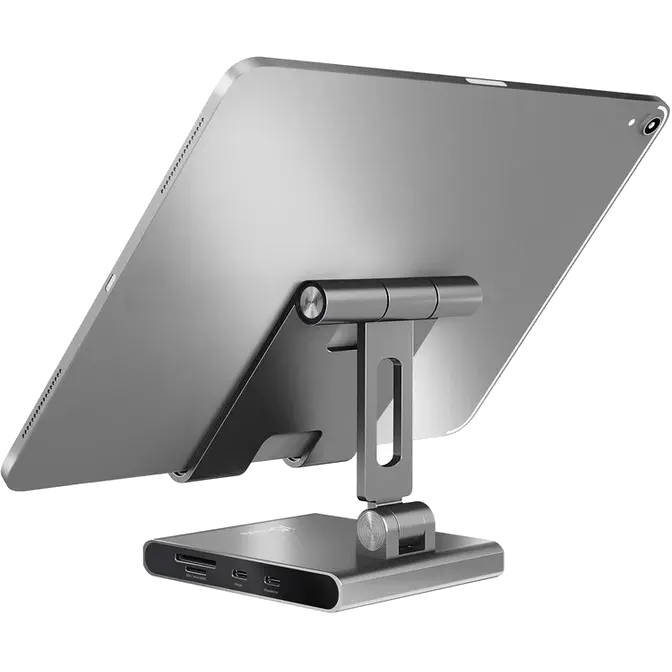

j5create JTS224 Multi-Angle iPad Stand with Docking Station
Web ID: 47880
Display Input: USB-C In
Display Output: HDMI Out
USB-A Ports: 2
USB-C Ports: 1
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: JTS224
Manufacturer Website
| Hardware | |
|
Warranty |
2-Year Limited |
|
Number of Tiers |
N/A |
|
Adjustable Angle |
N/A |
|
Maximum Weight Capacity |
3.3 lbs. (1.5 kg) |
|
Additional Storage |
No |
|
Assembly Required |
No |
|
Docking Station Included |
1 - USB-C® PD 100W charging port 1 - HDMI™ 2.0 (4K60) 2 - USB™ Type-A 5Gbps 1 - SD™/microSD™ 3.0 card reader 1 - 3.5 mm audio/mic combo jack |
|
Host Connector |
1 - USB-C® Female |
|
Video Output |
1 - HDMI™ 2.0 Female |
|
Power Source |
Bus-powered |
|
Network Interface |
N/A |
|
Audio Supported |
3.5 mm audio/mic combo jack |
|
Ports |
1 - USB-C® PD 100W charging port 1 - HDMI™ 2.0 (4K60) 2 - USB™ Type-A 5Gbps 1 - SD™/microSD™ 3.0 card reader 1 - 3.5 mm audio/mic combo jack |
| Performance | |
|
Maximum Display Resolution |
3840 x 2160 |
|
Maximum Display Refresh Rate |
60 Hz |
|
Displays Supported |
1 |
|
Wide Screen Supported |
Yes |
|
Audio Channel |
2.1 via HDMI™ |
| Power | |
|
Power Delivery |
100W |
|
Power Consumption |
≤ 900 mA |
|
Input Current |
5A |
|
Input Voltage |
20V |
|
Output Current |
4.75A |
|
Output Voltage |
20V |
| Physical Specifications | |
|
Color |
Space Gray |
|
Stand Material |
Aluminum |
|
Enclosure Type |
Aluminum |
|
Cable Length |
45cm / 1.48 ft |
|
Product Height |
4.9 in. (125 mm) |
|
Product Width |
3.93 in. (100 mm) |
|
Product Depth |
1.4 in. (36 mm) |
|
Product Weight |
377 g / 13.3 oz |
|
Operating Temperature |
30 to 116°F (0 to 30°C) |
|
Operating Humidity |
< 85% non-condensing |
|
Storage Temperature |
0 to 155°F (-10 to 65°C) |
|
Storage Humidity |
< 85% non-condensing |
Special Notes
- • N/A
Package Contents
- • 1- JTS224 Multi-Angle iPad Pro® Stand with Docking Station
- • 1- USB-C® 3.2 male to male host cable (Cable Length: 45cm)
- • 1- Protective bag
- • 1- Quick Installation Guide (QIG)
