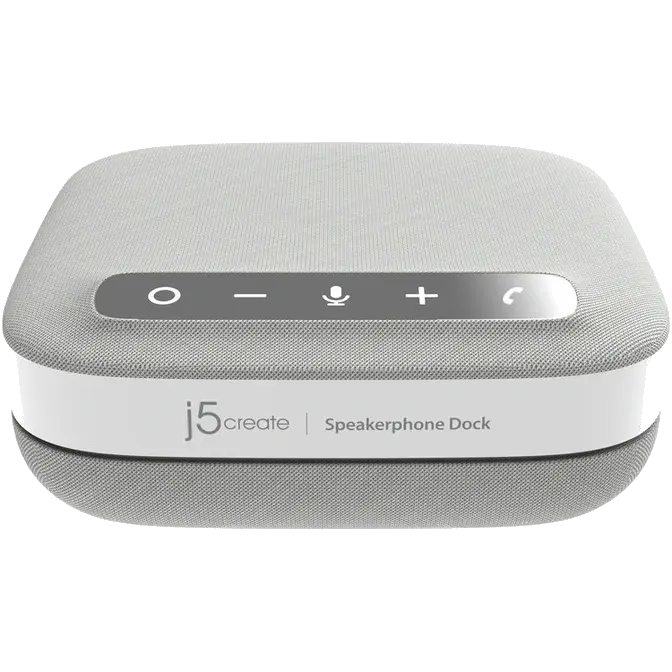

j5create JCDS335 USB-C 4K Speakerphone Dock
Web ID: 47821

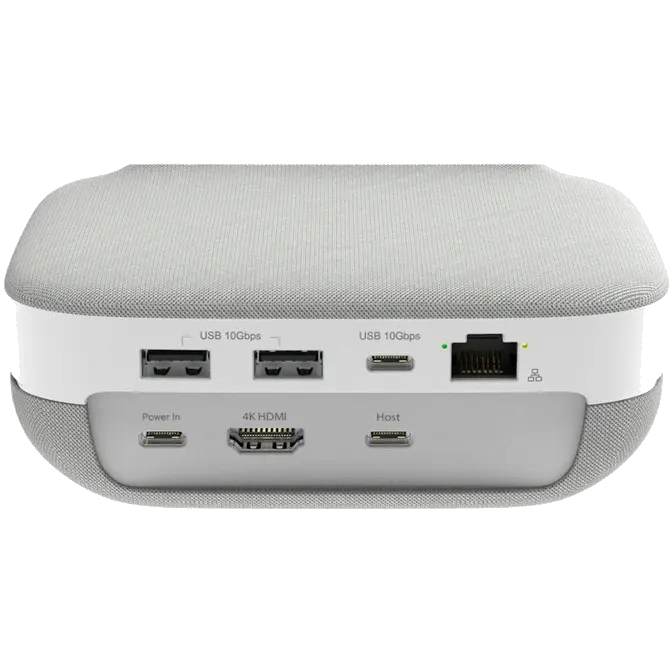

A USB-C 4K Speakerphone Dock that turns your laptop into a full workstation and conferencing device. With a 4K HDMI output. Includes one Type-C Power In port that supports up to 100W Power Delivery for charging laptops with a Type-C power adapter. Has two USB Type-A 5Gbps ports, and one USB-C 5Gbps port for connecting a variety of USB devices. The docking station is also equipped with an RJ45 Gigabit Ethernet port for high-speed network connectivity.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: JCDS335
Manufacturer Website
|
Hardware |
|
|
Warranty |
2 Year Limited |
|
Host Connector |
USB-C® Female |
|
Video Output |
4K HDMI™ Female |
|
Audio Supported |
Yes |
|
Power Source |
Bus-powered, Self-powered |
|
Network Interface |
RJ45 (Gigabit Ethernet) |
|
Speaker - Mic |
4 x mic array |
|
Controls |
Touch Key |
| Ports |
2 x HDMI™ 4K@60Hz HDR |
|
Performance |
|
|
Maximum Display Resolution |
Single Display: |
|
Maximum Data Transfer Rate |
10Gbps |
|
Compatible Networks |
10/100/1000 Base-T, auto-negotiating |
|
Displays Supported |
1 (4K HDMI™) |
|
Audio Channel |
2.0 via HDMI™ |
|
Audio Microphone |
- Frequency: 100 Hz - 8 kHz |
|
Audio Speaker |
- Frequency: 150 Hz - 20 kHz |
|
Microphone |
Built-in 4 microphones array |
|
Speakerphone |
Built-in 5W speaker with bass diaphragm |
|
Voice Processing |
- Acoustic Echo Cancellation (AEC) |
|
Power |
|
|
Power Delivery |
100W |
|
Power Consumption |
≥ 300 mA |
|
Input Current |
5A |
|
Input Voltage |
20V |
|
Output Current |
4.25A |
|
Output Voltage |
20V |
|
Physical Specifications |
|
|
Color |
Grey & White |
|
Enclosure Type |
PC+ABS |
|
Cable Length |
39.37 in. (100 cm) |
|
Product Height |
1.88 in. (47.8 mm) |
| Product Width |
5.11 in. (130 mm) |
| Product Depth |
5.11 in. (130 mm) |
| Product Weight |
0.83 lbs. (377 g) |
| Storage Temperature |
14 to 149°F (-10 to 65°C) |
|
Storage Humidity |
< 85% non-condensing |
|
Operating Temperature |
32 to 118°F (0 to 48°C) |
|
Operating Humidity |
< 85% non-condensing |
Package Contents
- • 1 - JCDS335 USB-C® 4K Speakerphone Dock
- • 1 - USB-C® cable (Length: 100 cm / 3.3 ft.)
- • 1 - Quick Installation Guide (QIG)
