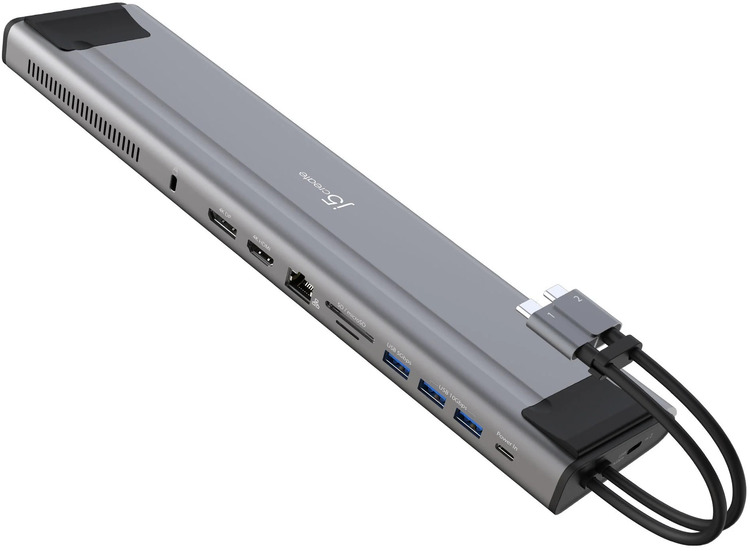

j5create JCD552 M.2 NVMe USB-C Gen 2 Docking Station
Web ID: 47879
Display Input: USB-C In
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 3
USB-C Ports: 1
LAN Speed: 1 Gigabit
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: JCD395
Manufacturer Website
| Hardware | |
|
Warranty |
2 Year Limited |
|
Host Connector |
2 - USB-C® Male |
|
Video Output |
1 - HDMI™ Female |
|
Power Source |
Bus-powered |
|
Network Interface |
RJ45 (Gigabit Ethernet) |
|
Audio Supported |
Yes |
|
Ports |
|
| Performance | |
|
Maximum Display Resolution |
3840 x 2160 |
|
Maximum Display Refresh Rate |
60 |
|
Maximum Data Transfer Rate |
10 Gbps |
|
Maximum Displays Supported |
2 |
|
Compatible Networks |
10/100/1000 Mbps |
|
Audio Channel |
2.1 via HDMI™ / 3.5 mm Aux |
| Power | |
|
Power Delivery |
Up to 100W via USB-C® |
|
Power Consumption |
≤ 600 mA |
|
Input Current |
5A |
|
Input Voltage |
20V |
|
Output Current |
5A |
|
Output Voltage |
20V |
| Physical Specifications | |
|
Color |
Grey & Black |
|
Enclosure Type |
Aluminum |
|
Cable Length |
0.6 in. (15 cm) |
|
Product Height |
1.02 in. (26 mm) |
|
Product Width |
3.14 in. (80 mm) |
|
Product Depth |
12.5 in. (318 mm) |
|
Product Weight |
0.83 lbs. (378g) |
|
Storage Temperature |
14 to 149°F (-10 to 65°C) |
|
Storage Humidity |
< 85% non-condensing |
|
Operating Temperature |
32 to 118°F (0 to 48°C) |
|
Operating Humidity |
< 85% non-condensing |
Special Notes
- • To ensure optimal capability and compatibility for laptops with a single USB-C® port, the 2nd USB-C® host cable must be connected to the 10 Gbps USB-C® Gen 2 port on the docking station.
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 3.0 (5 Gbps)/USB™ 2.0 port or if using a USB™ 3.0 (5 Gbps)/USB™ 2.0, performance may be limited.
- • The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • M1 MacBook Pro® and MacBook Air® only supports up to 1 external display. This single display limitation does not affect Intel® Mac®
- • Two USB-C® connections provide higher M.2 transfer speeds compared to a single USB-C® connection
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time. If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance
Package Contents
- • 1 – JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station
- • 1 - Quick Installation Guide (QIG)
