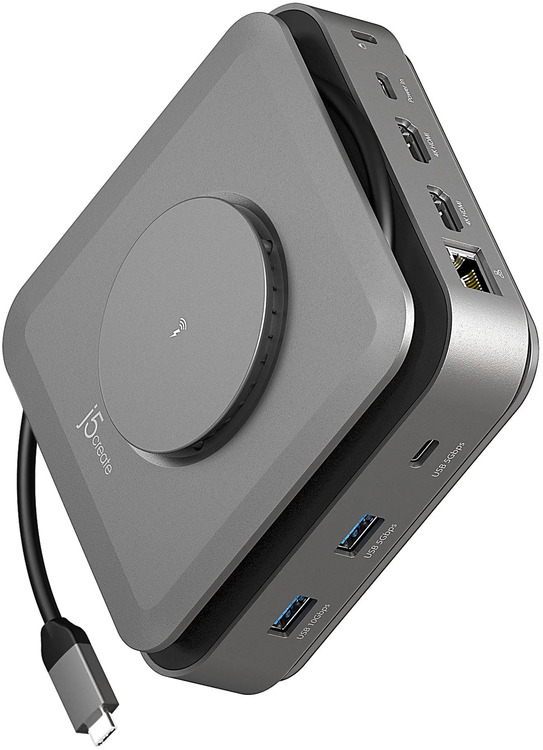

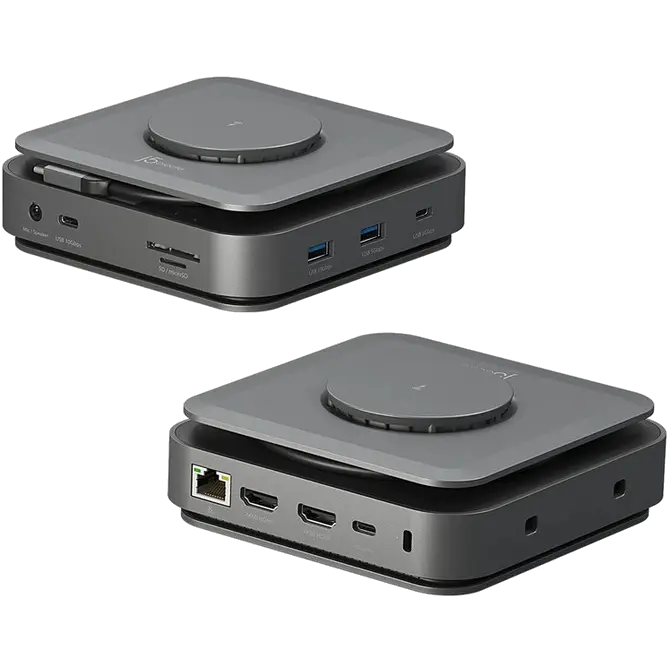

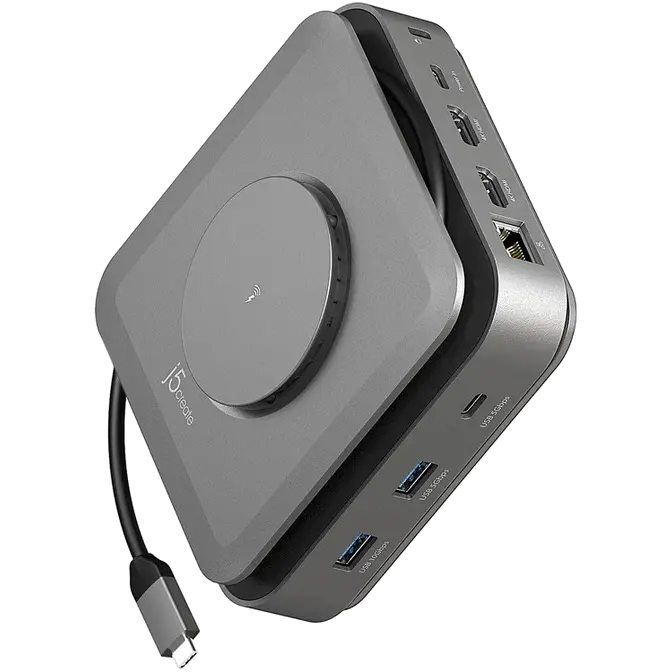

j5create JCD3199 USB-C Dock with Wireless Charging
Web ID: 47882
Display Input: USB-C In
Display Output: HDMI Out
USB-A Ports: 2
USB-C Ports: 2
LAN Speed: 1 Gigabit
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: JCD3199
Manufacturer Website
$199
Hardware
| Specification | Details |
|---|---|
| Audio Supported | Yes |
| Host Connector | 1 - USB-C® Male (PD3.1 100W, 20V/5A) |
| Network Interface | Yes |
| Output | - 15W wireless charging for Google™ Pixel™ - 7.5W for iPhone® with MagSafe® - 5W for AirPods® |
| Ports | - 1 × USB-C® PD-in PD3.1 140W (28V/5A) - 2 × USB-C® (5Gbps & 10Gbps) - 2 × USB™ Type-A (5Gbps & 10Gbps) - 1 × Combo 3.5mm Audio Jack - 1 × HDMI™ (USB™ display max 4K@30Hz) - 1 × HDMI™ (DP™-Alt max 4K@60Hz) - 1 × RJ45 Gigabit Ethernet - 1 × SD™/microSD™ 3.0 - 1 × Wireless Charger 15W |
| Power Source | Bus-powered or Self-powered |
| Video Output | 2 × HDMI™ Female |
| Warranty | 2 Year Limited |
Performance
| Specification | Details |
|---|---|
| Audio Channel | 2.1 via HDMI™ |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 2 |
| Max Data Transfer Rate | 10Gbps |
| Max Display Refresh Rate | 60 Hz |
| Max Display Resolution | 3840 × 2160 |
Power
| Specification | Details |
|---|---|
| Input Current | Up to 5A |
| Input Voltage | Up to 28V |
| Output Current | Up to 5A |
| Output Voltage | Up to 20V |
| Power Consumption | ≤ 900 mA |
| Power Delivery | Up to 140W via USB-C® |
Physical Specifications
| Specification | Details |
|---|---|
| Cable Length | 2.28 ft (69.5 cm) |
| Color | Space Grey |
| Enclosure Type | Plastic |
| Operating Humidity | < 85% Non-Condensing |
| Operating Temperature | 30 to 116°F (-1 to 41°C) |
| Product Depth | Body: 5.12 in. (130 mm) Holder: 3.15 in. (80 mm) |
| Product Height | Body: 1.71 in. (43.5 mm) Holder: 1.3 in. (33 mm) |
| Product Weight | Body: 14.7 oz (416 g) Holder: 0.8 oz (22 g) |
| Product Width | Body: 5.12 in. (130 mm) Holder: 5.12 in. (130 mm) |
| Storage Humidity | < 85% Non-Condensing |
| Storage Temperature | 0 to 155°F (-17 to 68°C) |
Package Contents
| Item |
|---|
| 1 - JCD3199 USB-C® Dock Dual 4K HDMI™ |
| 1 - Dock Holder |
| 1 - Quick Installation Guide (QIG) |
