Specifications

Size and Weight

Size

• Size (L x W x H): 2.8″ x 2.8″ x 9.5″ (72 x 72 x 242 mm)

Weight

• 0.76 lb( 345 g)

Model and Color

Model

• CSCB-01IP

Color

• Black

Built-in Features

2-way AI noise reduction

• AI Voice Noise reduction technology from IntelliGO - for the microphone and the speaker.
• This noise filter utilizes artificial intelligence, which was trained with over 500 million distinct data, and is highly effective in maintaining the natural sound of the human voice while removing noise with high accuracy.

Noise reduction

• SNR > 5dB
• Omni-directional : 360° voice capture
• Directional : 120° voice capture
• Pickup distnace: 16.40ft / 5 m (with voice >65dB)
  With AI Voice on, recommended distance is: 3.28ft / 1m

Microphone

• Two digital MEMS omnidirectional microphones
• Frequency response: 100Hz~8KHz

Speaker

• Speaker size: 1.57″ / 40mm
• Peak output power : 5W
• Bandwidth: 145Hz ~ 20KHz
• AEC : Acoustic echo cancelation
• AGC : Automatic gain control
• Maximum volume : 80dB+/-2dB
• Cable length: 3.94 ft / 1.2 m

Battery

• Capacity: 3640mAh
• Battery Life: 40hrs when connected via Bluetooth at 50% speaker volume
• Charging speed: 3.5hrs from 0%~100%

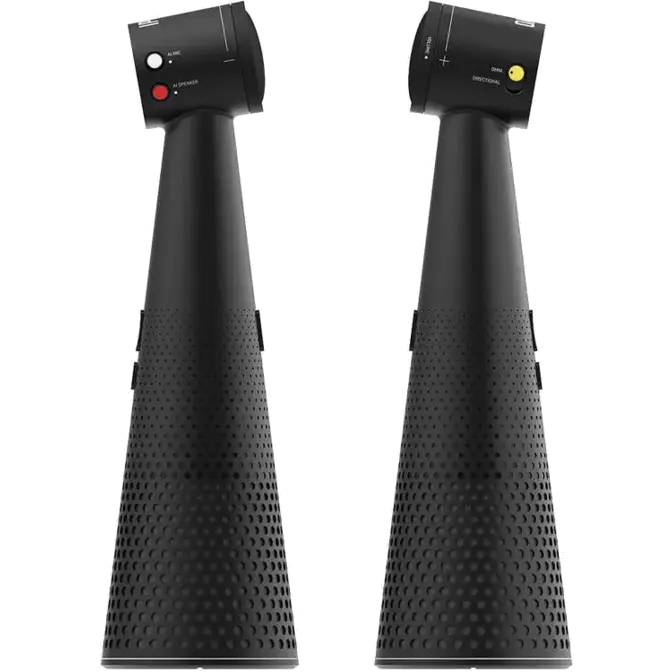

Physical Control Buttons

• Mic mute/unmute, Power switch, Bluetooth pairing button, volume knob, microphone mode switch - directional/omni, AI Voice for Mic, AI Voice for Speaker.

LED indicator bar

• Indicates the device status. Please see the user manual for the list of signals.

Processor & RAM

Processor

• QCC3024

RAM

• 256 KB

Operating Temperature & Humidity

• 32°F to 104°F (0°C to 40°C)
• 10% to 95%

Compatibility and
Output Connectivity

• USB Type C, Bluetooth 5.1

Compatibility (Plug & Play)

• Mac, Windows, and Chromebooks.

Connectivity

Can connect to

• PCs, Mobile & Bluetooth Enabled Devices

Package Contents

• IPEVO VOCAL with USB cable (3.94 ft / 1.2 m)
