Product Collection

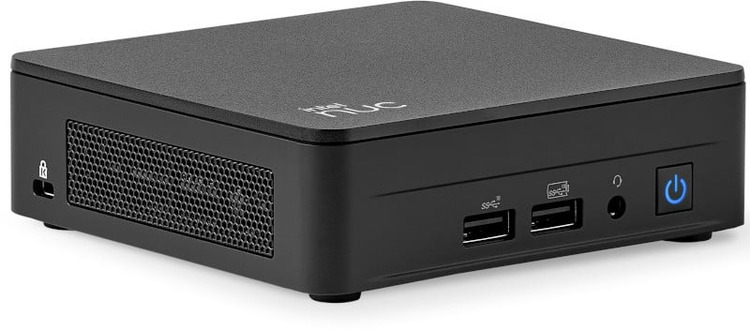

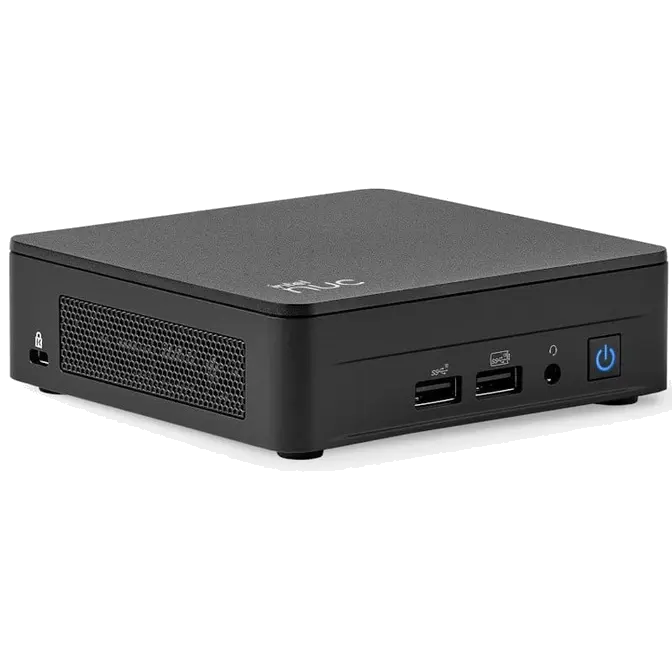

Intel® NUC Kit with 13th Generation Intel® Core™ Processors
Code Name
Products formerly Arena Canyon
Marketing Status
Launched
Launch Date
Q1'23
Expected Discontinuance
1H'26
Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu*
Board Number
NUC13ANBi3
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported
2
DC Input Voltage Supported
12-20 VDC
Processor Included
Intel® Core™ i3-1315U Processor (10M Cache, up to 4.50 GHz)
Total Cores
6
Total Threads
8
Lithography
Intel 7
Max Turbo Frequency
4.50 GHz
Supplemental Information
Included Items
VESA bracket
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-3200 1.2V SODIMMs
Max # of Memory Channels
2
Max # of DIMMs
2
ECC Memory Supported ‡
No
Processor Graphics
Integrated Graphics ‡
Yes
Graphics Output
2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
# of Displays Supported ‡
4
Expansion Options
PCI Express Revision
Gen 4 (m.2 22×80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡
PCIe x4 Gen 4: M.2 22×80 (key M)
PCIe x1 Gen 3: M.2 22×42 (key B)
PCIe x1: M.2 22×30 (key E)
M.2 Card Slot (wireless)
22×30 (E)
M.2 Card Slot (storage)
22×80 NVMe (M); 22×42 SATA (B)
I/O Specifications
# of USB Ports
4
USB Configuration
Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22×42 (pins), 2x USB 2.0 (headers)
Serial Port via Internal Header
No
Audio (back channel + front channel)
Front panel: 3.5mm headphone/mic jack
Integrated LAN
Intel® Ethernet Controller i226-V
Integrated Wireless‡
Intel® Wi-Fi 6E AX211(Gig+)
Integrated Bluetooth
Yes
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector
# of Thunderbolt™ Ports
2x Thunderbolt™ 4
Package Specifications
Chassis Dimensions
117 x 112 x 37 [mm] (LxWxH)
Advanced Technologies
Intel® Optane™ Memory Supported ‡
No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® ME Firmware Version
16.1
Intel® HD Audio Technology
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
