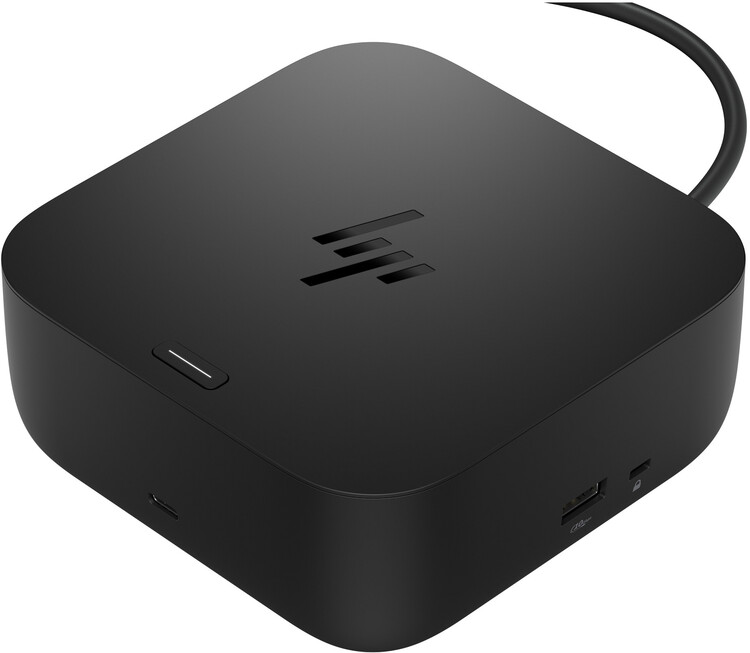

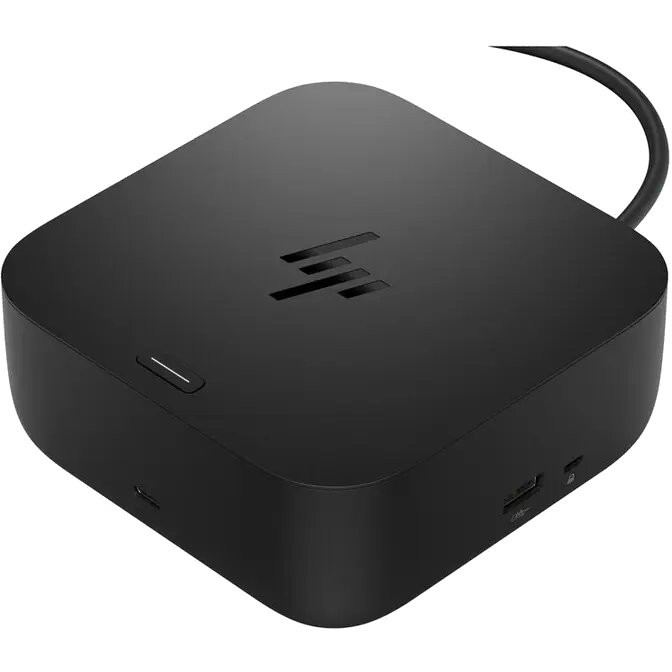

HP G6 USB-C 100W Laptop Dock
Web ID: 48376
Display Input: USB-C In
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 3
USB-C Ports: 1
LAN Speed: 2.5 Gigabit
Manufacturer Warranty: 1 Year
Manufacturer PN: 9X3V1UT
GTIN: 198415314055
$249
| Cable length | 1 m |
| Cable type | 1 back USB Type-C® cable to connect to host system (up to 100W USB Power Delivery) |
| Certified collaboration software | DisplayPort™ |
| Color | Jet black |
| Compatibility | Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more. |
| Compatible Operating Systems | Windows 11; Windows 10; macOS; Linux; ThinPro; ChromeOS |
| Connection type | USB Type-C® |
| Country of origin | China(UUZ, ABZ, ACQ, UUF, ABU, ABJ, ABG, AB2, ABB, ABT, AB0, ACJ, ABY, AR6, AB1); Thailand(UUZ, ABZ, ACQ, UUF, ABU, ABB, ABT, ABY) |
| Current, maximum | 6.15 A |
| Dimensions (W x D x H) | 12.1 x 12.1 x 5.1 cm |
| Display support | Up to 3 external displays and 1 PC display or up to 3 external displays |
| Displays supported | Triple monitor |
| Drivers included | Realtek NIC driver (ARM); Realtek NIC driver (Windows) |
| Form factor | Dock |
| I/O Port location | Rear |
| LED | Front LED bar: RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red) |
| Management features | HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching |
| Management Software | Poly Lens (Cloud, Desktop) |
| Manufacturer Warranty | HP three-year limited warranty |
| Material Type for item | FERT |
| Non-Operating Humidity Range | 5 to 95% non-condensing |
| Non-operating temperature - Celsius | -20 to 60°C |
| Operating altitude | -15 to 3,048 m |
| Operating humidity range | 10 to 90% non-condensing |
| Operating temperature range | 32 to 95°F |
| Operating voltage | 19.5 V |
| Package dimensions (W x D x H) | 39.6 x 95 x 171 cm |
| Package weight | 1085.5 g |
| Pallet dimensions (W x D x H) | 120 x 100 x 14.5 cm |
| Physical security | 1 nano security lock slot |

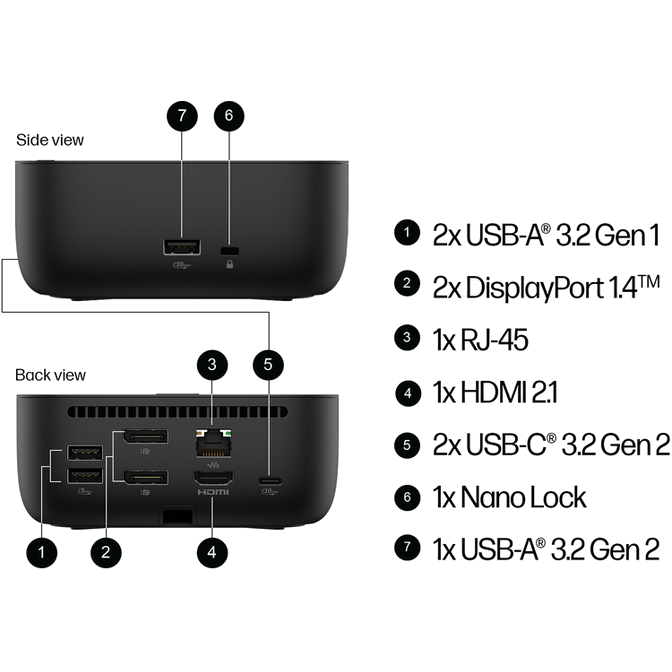

| Ports | 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE); 1 USB Type-C® 10Gbps signaling rate (data and 15W USB Power Delivery) |
| Power button type | Mechanical power button with RGB LED indicator to power or wake host system |
| Power delivery (PD) profiles | 12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A |
| Power to host | Up to 100 W via USB Type-C® (both HP and non-HP host devices) |
| Refresh rate (maximum) | 120 Hz |
| Registration required | No |
| Resolution (maximum) | Up to 4K |
| Resolutions supported | Multi-function PCs: 1 x 4K (3840 x 2160 @ 120 Hz)[1], 2 x QHD resolution (2560 x 1440 @ 120 Hz)[1], 3 x FHD (1920 x 1080 @ 120 Hz)[1]; High-resolution PCs with DisplayPort™ Alt Mode: 1 x 4K (3840 x 2160 @ 120 Hz)[1], 2 x 4K (3840 x 2160 @ 120 Hz)[1], 3 x 4K (3840 x 2160 @ 60 Hz)[1] |
| Security management | HP Sure Start |
| Security management footnote number | [2] |
| Software included | HP Quick Connect |
| Software included footnote number | [9,11] |
| Storage altitude | -15 to 12,192 m |
| Sustainable impact specifications | Plastic-free packaging; At least 35% post-consumer recycled plastic; Packaged in at least 35% recycled corrugated material |
| UNSPSC code | 43211602 |
| UPC number | 198415314055 |
| Video connectors | HDMI; DisplayPort™-out |
| Weight | 680 g |
| What's in the box | HP USB-C 100W G6 Dock; 120 W power adapter; Product notice; Warranty card |
| Wireless technologies | WLAN Realtek RTL8721DM 802.11a/b/g/n; Bluetooth® |
