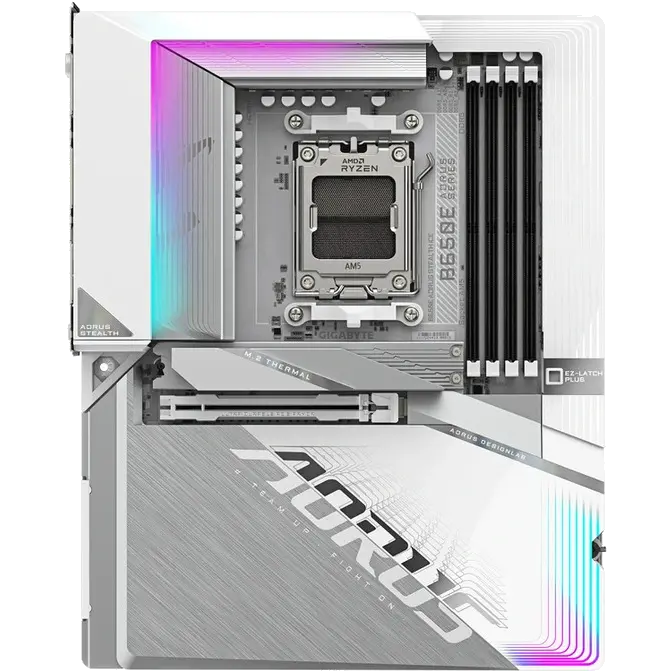

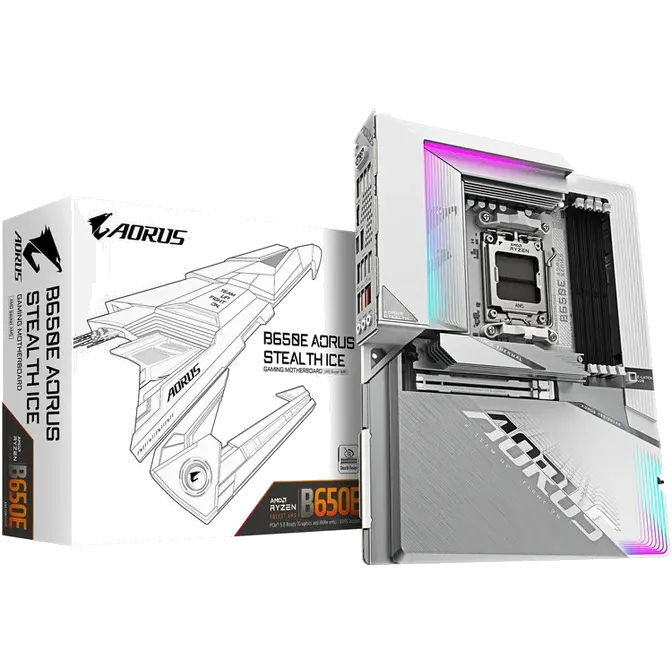

GigabyteAM5 B650E AORUS STEALTH ICE ATX DDR5 Wi-Fi 7 Motherboard White
Web ID: 48968
CPU Socket: AMD AM5
Cooler Socket: AM5 Bracket
Motherboard Form Factor: ATX
Chipset: AMD B650E
RAM Type: DDR5
WiFi Standard: Wi-Fi 7
Bluetooth: Bluetooth || Ver 5.4
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Display Output: USB-C Out || HDMI Out
USB-A Ports: 11
USB-C Ports: 1
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: B650E AORUS STEALTH ICE
Manufacturer Website
$399
| CPU | |
|---|---|
| AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|
| Chipset | |
| AMD B650 | |
| Memory | |
| Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Onboard Graphics | |
| Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x USB Type-C® port (Note) with DisplayPort video output, supporting up to 3840x2160@144 Hz. * DisplayPort 1.4 and HDR supported. - 1 x HDMI port, max 4096x2160@60 Hz * HDMI 2.1 + HDCP 2.3 supported. ** Native HDMI 2.1 TMDS compatible ports supported. - 1 x Front HDMI port, max 1920x1080@30 Hz * HDMI 1.4 supported. (Graphics specifications may vary depending on CPU support.) (Note) Type-C port: 40 Gbps on Ryzen 8000, 10 Gbps on Ryzen 9000/7000. |
|
| Audio | |
| Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Audio jack functionality configurable in software. |
|
| LAN | |
| Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) | |
| Wireless Communication Module | |
| MediaTek Wi-Fi 7 MT7925 - 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz - Bluetooth 5.4 - 11be 160MHz support * Wi-Fi 7 requires Windows 11 SV3 (no Windows 10 driver). ** 6 GHz band availability varies by region. |
|
| Expansion Slots | |
| 1 x PCIe x16 slot (PCIEX16), from CPU: - Ryzen 9000/7000 → PCIe 5.0 x16 - Ryzen 8000 Phoenix 1 → PCIe 4.0 x8 - Ryzen 8000 Phoenix 2 → PCIe 4.0 x4 * Slot supports graphics card or NVMe SSD only. |
|
| Storage Interface | |
| 1 x M.2 (M2A_CPU), CPU controlled, 25110/22110/2580/2280: - Ryzen 9000/7000 → PCIe 5.0 x4/x2 - Ryzen 8000 → PCIe 4.0 x4/x2 1 x M.2 (M2B_CPU), CPU controlled, 22110/2280: - Ryzen 9000/7000 → PCIe 4.0 x4/x2 - Phoenix 1 → PCIe 4.0 x4/x2 - Phoenix 2 → PCIe 4.0 x2 1 x M.2 (M2C_SB), Chipset, 22110/2280 PCIe 4.0 x4/x2 4 x SATA 6Gb/s connectors RAID 0/1/10 for NVMe and SATA |
|
| USB | |
| CPU: - 1 x USB Type-C® (Note 1) on back - 2 x USB 3.2 Gen 2 Type-A (red) CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 (back) Chipset: - 1 x USB Type-C (USB 3.2 Gen 2x2, internal header) - 3 x USB 3.2 Gen 1 (1 back, 2 internal) - 4 x USB 2.0/1.1 (internal) Chipset + USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 (back) (Note 1) Type-C: 40 Gbps on Ryzen 8000, 10 Gbps on Ryzen 9000/7000. |
|
| Internal I/O Connectors | |
| 1 x 24-pin ATX power 1 x 8-pin ATX 12V 1 x CPU fan header 1 x CPU/WP pump header 3 x system fan headers 1 x system fan/WP pump header 2 x ARGB Gen2 headers 1 x RGB header 3 x M.2 sockets 4 x SATA 6Gb/s 1 x front panel 1 x front audio 1 x USB Type-C (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 2 x USB 2.0/1.1 1 x TPM header 1 x HDMI (Note2) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper (Note 2) Only available with AMD Radeon™ Graphics Processors. |
|

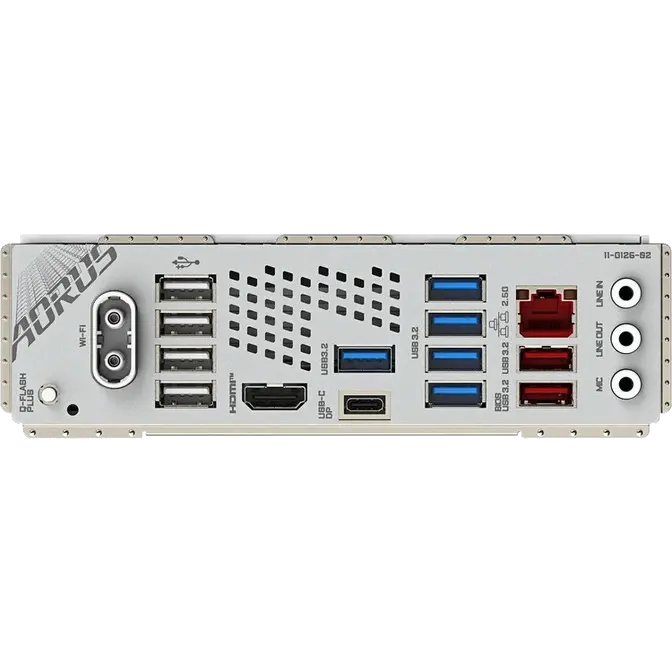

| Back Panel Connectors | |
| 1 x Q-Flash Plus button 2 x SMA antenna connectors 1 x HDMI 1 x USB Type-C (DisplayPort) 2 x USB 3.2 Gen 2 (red) 5 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x RJ-45 3 x audio jacks (Notes 1–2 apply as above.) |
|
| I/O Controller | |
| iTE® I/O Controller Chip | |
| H/W Monitoring | |
| Voltage/Temperature/Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Support depends on the installed fan/pump. |
|
| BIOS | |
| 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Unique Features | |
| Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | |
| Norton® Internet Security (OEM) LAN bandwidth management software * Service discontinued by software provider. |
|
| Operating System | |
| Windows 11 64-bit | |
| Form Factor | |
| ATX, 30.5 cm x 24.4 cm |
