$399
Click & Collect
In stock at Mt Gravatt
Delivery
Avaliable for Fast Dispatch
Buy Now, Pay Later. T&Cs Apply
| CPU | |
|---|---|
| LGA1851 socket | Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| L3 cache | Varies with CPU |
| Chipset | |
| Chipset | Intel® Z890 Express Chipset |
| Memory | |
| Support up to | 10266+MT/s (OC) |
| Slots | 2 x DDR5 DIMM slots, Dual Channel |
| Max Capacity | 256 GB |
| Support | ECC (operate in non-ECC mode), Non-ECC, Quad-Rank Un-buffered DIMM memory modules |
| XMP | Supports Intel® Extreme Memory Profile (XMP) memory module |
| Note | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | |
| Integrated Graphics Processor | Intel® HD Graphics support |
| USB4 Type-C | 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 4096x2304@144 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 |
| DisplayPort | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 |
| Note | (Graphics specifications may vary depending on CPU support.) |
| Audio | |
| CODEC | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. |
| Channels | High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| S/PDIF | Support for S/PDIF Out |
| LAN | |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | |
| Wi-Fi | Intel® Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth | BLUETOOTH 5.4 |
| 320MHz | Support for 11be 320MHz wireless standard |
| Notes | * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. ***Bluetooth version may change with updates. |
| Expansion Slots | |
| CPU | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Chipset | 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_2 slot shares bandwidth with the M2L_SB connector. |
| Storage Interface | |
| CPU M.2 | 1 x PCIe 5.0x4/x2 M.2 (25110/22110/2580/2280), 1 x PCIe 4.0 x4/x2 M.2 |
| Chipset M.2 | 3 x PCIe 4.0 x4/x2 M.2, 1 x SATA/PCIe 4.0x4/x2 M.2 |
| SATA | 4 x SATA 6Gb/s connectors |
| RAID | NVMe & SATA: RAID 0/1/5/10 support |
| USB | |
| CPU USB | 1 x USB4® Type-C on back |
| Chipset USB | 1 × USB-C (USB 3.2 Gen 2), 2 × USB 3.2 Gen 2 Type-A, 5 × USB 3.2 Gen 1, 8 × USB 2.0/1.1 |
| Internal I/O Connectors | |
| Power | 1 x 24-pin ATX, 2 x 8-pin ATX 12V |
| Cooling | 1 x CPU fan, 1 x CPU fan/pump, 3 x system fan, 1 x system fan/pump |
| RGB | 3 x ARGB Gen2, 1 x RGB header |
| Storage | 5 x M.2, 4 x SATA |
| USB Headers | 1 x USB-C (Gen 2), 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Other | TPM header, Thunderbolt add-in headers, reset jumper, Clear CMOS jumper |

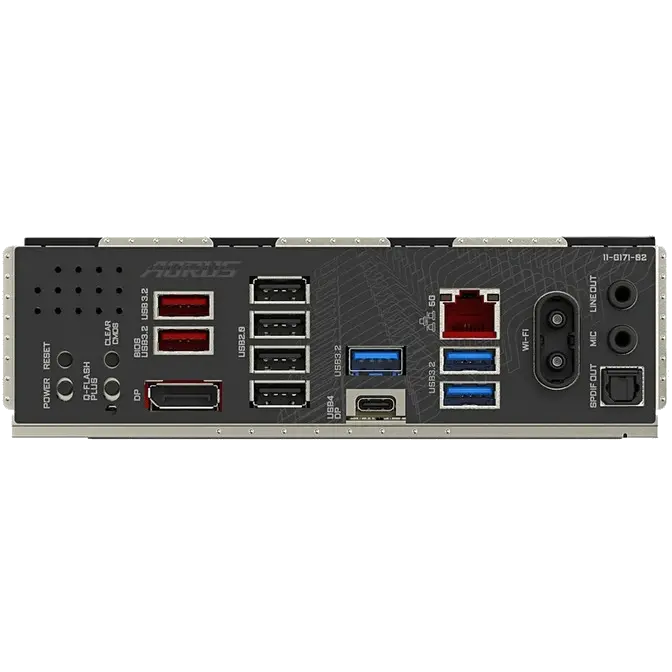

| Back Panel Connectors | |
| Buttons | Reset, Power, Clear CMOS, Q-Flash Plus |
| USB | 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0, 3 x USB 3.2 Gen 1, 1 x USB4 Type-C |
| Video | 1 x DisplayPort |
| Network | 1 x RJ-45 |
| Wireless | 2 x antenna connectors |
| Audio | Optical S/PDIF Out, 2 x audio jacks |
| I/O Controller | |
| I/O Chip | iTE® I/O Controller Chip |
| H/W Monitoring | |
| Monitoring | Voltage, temperature, fan speed, water flow, fan fail warning, fan control |
| BIOS | |
| BIOS | 1 x 512 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | |
| Software | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | |
| Software | Norton® Internet Security (OEM version) |
| Operating System | |
| Supported OS | Windows 11 64-bit |
| Form Factor | |
| Form Factor | ATX; 30.5cm x 24.4cm |
3 Year
Manufacturers Warranty
Need a hand with something tech related? Our team put the human lingo in technology. Simply give us a call and we’ll be more than happy to assist!
$399
