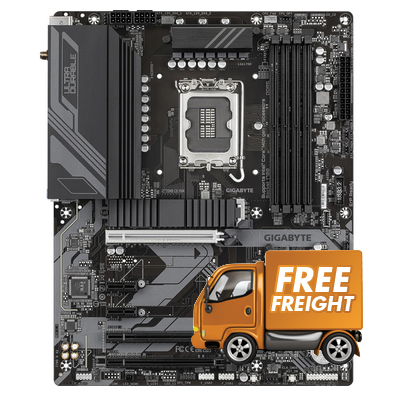

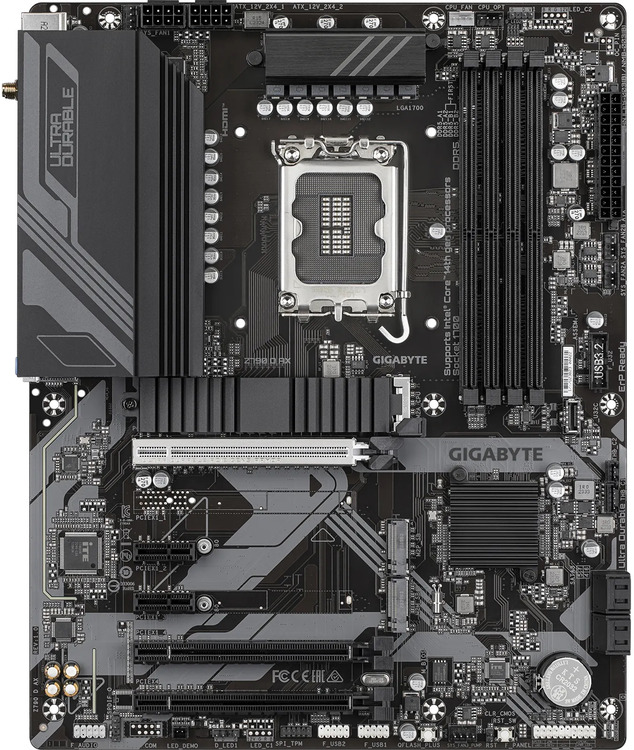

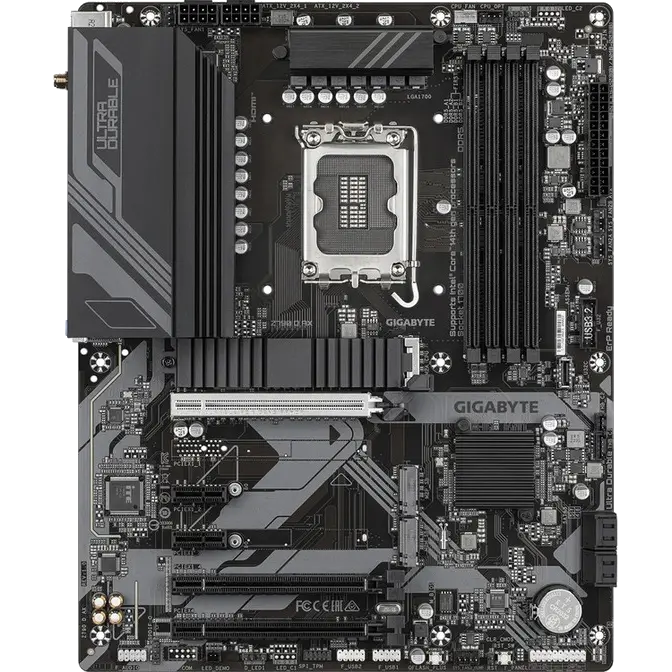

Gigabyte S1700 Z790 D AX ATX DDR5 Motherboard
Web ID: 47047
CPU Socket: Intel 1700
Motherboard Form Factor: ATX
Chipset: Intel Z790
RAM Type: DDR5
WiFi Standard: Wi-Fi 6E
Bluetooth: Bluetooth || Ver 5.3
PCIe Size: PCIe x1 || PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 7
USB-C Ports: 1
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: Z790 D AX
Manufacturer Website
$229
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies with CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory | - 14th/13th Gen i9/i7: DDR5 up to 7600(O.C.) MT/s - 13th Gen i5/i3 & 12th Gen: DDR5 4800/4400 MT/s - 4 x DDR5 DIMM sockets, up to 256 GB - Dual channel architecture - ECC/Non-ECC DIMM support - XMP support |
| Onboard Graphics | Intel® HD Graphics - HDMI: 4096x2160@60Hz (HDMI 2.1, HDCP 2.3) - DisplayPort: 4096x2304@60Hz (DP 1.2, HDCP 2.3) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5G/1G/100M) |
| Wireless | Intel® Wi-Fi 6E AX211 WIFI a/b/g/n/ac/ax (2.4/5/6 GHz) Bluetooth 5.3 11ax 160MHz support |
| Expansion Slots | CPU: - 1 x PCIe x16 (PCIe 5.0) Chipset: - 1 x PCIe x16 (PCIe 4.0 x4) - 1 x PCIe x16 (PCIe 3.0 x1) - 2 x PCIe x1 (PCIe 3.0 x1) |
| Storage Interface | CPU: - 1 x M.2 (PCIe 4.0 x4/x2) Chipset: - 2 x M.2 (PCIe 4.0 x4/x2, SATA) - 4 x SATA 6Gb/s RAID 0/1/5/10 for NVMe & SATA |
| USB Ports | Back Panel: - 1 x USB-C (USB 3.2 Gen 2) - 1 x USB 3.2 Gen 2 Type-A (red) - 4 x USB 3.2 Gen 1 - 2 x USB 2.0 Internal: - 1 x USB-C (USB 3.2 Gen 1) - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0 headers - 4 x USB 2.0 via hub |
| Internal I/O | - 1 x 24-pin ATX - 2 x 8-pin ATX 12V - CPU/system fan headers - LED strip headers - M.2 & SATA connectors - Front panel/audio headers - USB headers - TPM header - Q-Flash Plus/reset buttons & jumpers |

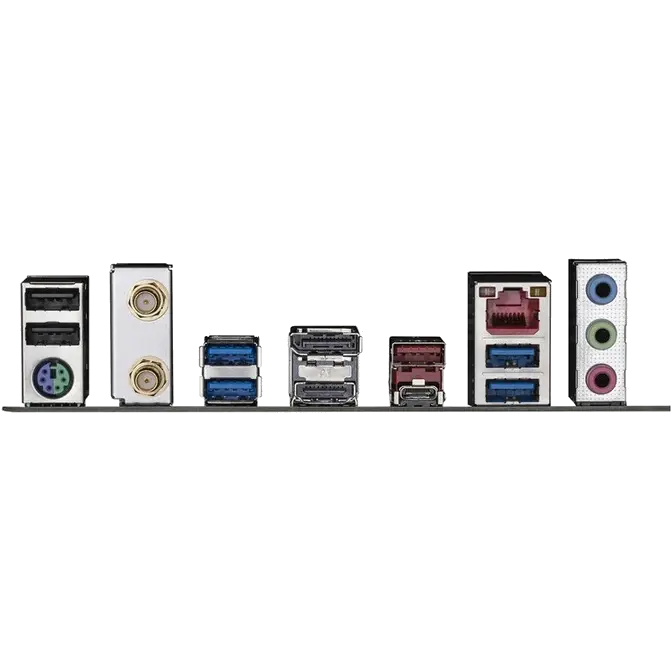

| Back Panel Connectors | - PS/2 port - USB-C (USB 3.2 Gen 2) - USB 3.2 Gen 2 Type-A (red) - 4 x USB 3.2 Gen 1 - 2 x USB 2.0 - 2 x SMA antenna connectors - HDMI, DisplayPort - RJ-45 - 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow detection Fan fail warning Fan/pump speed control |
| BIOS | 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
