| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors (Refer to GIGABYTE's website for latest CPU support list) L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | Supports DDR5 8000(O.C.) down to 4000 MT/s 2 x DDR5 DIMM sockets, up to 128 GB Dual channel architecture Supports ECC and non-ECC Un-buffered DIMMs Supports Extreme Memory Profile (XMP) |
| Onboard Graphics | Intel® HD Graphics: - 1 x D-Sub (1920x1200@60Hz) - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) - 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3) Supports triple-display |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Supports S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz) Bluetooth 5.3 Supports 11ax 80MHz |
| Expansion Slots | CPU: - 1 x PCIe x16 (PCIe 5.0, x16) Chipset: - 1 x PCIe x1 (PCIe 3.0, x1) |
| Storage Interface | CPU: - 1 x M.2 (PCIe 4.0 x4/x2) Chipset: - 1 x M.2 (PCIe 4.0 x4/x2) - 4 x SATA 6Gb/s Supports RAID 0/1/5/10 |
| USB Ports | Chipset: - 1 x USB Type-C® (USB 3.2 Gen 1) - 5 x USB 3.2 Gen 1 (3 rear, 2 internal) - 2 x USB 2.0/1.1 (rear) Chipset + Hub: - 4 x USB 2.0/1.1 (internal) |
| Internal I/O | 1 x 24-pin ATX 1 x 8-pin ATX 12V 1 x CPU fan header 3 x system fan headers 2 x ARGB Gen2 headers 1 x RGB header 2 x M.2 connectors 4 x SATA 1 x front panel header 1 x front audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x TPM header 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

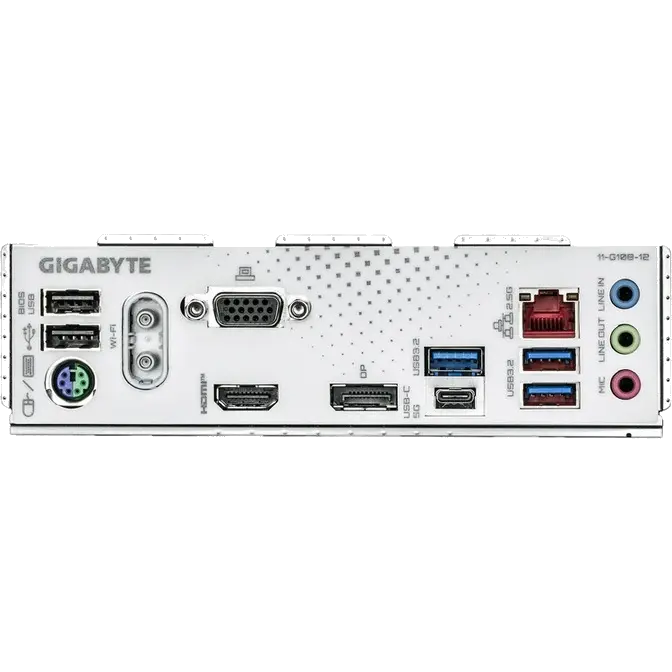

| Back Panel | 2 x USB 2.0 1 x PS/2 port 2 x antenna connectors 1 x D-Sub 1 x HDMI 1 x DisplayPort 3 x USB 3.2 Gen 1 1 x USB Type-C® 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow detection Fan fail warning Fan speed control (depends on fan) |
| BIOS | 1 x 128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 22.5cm |
