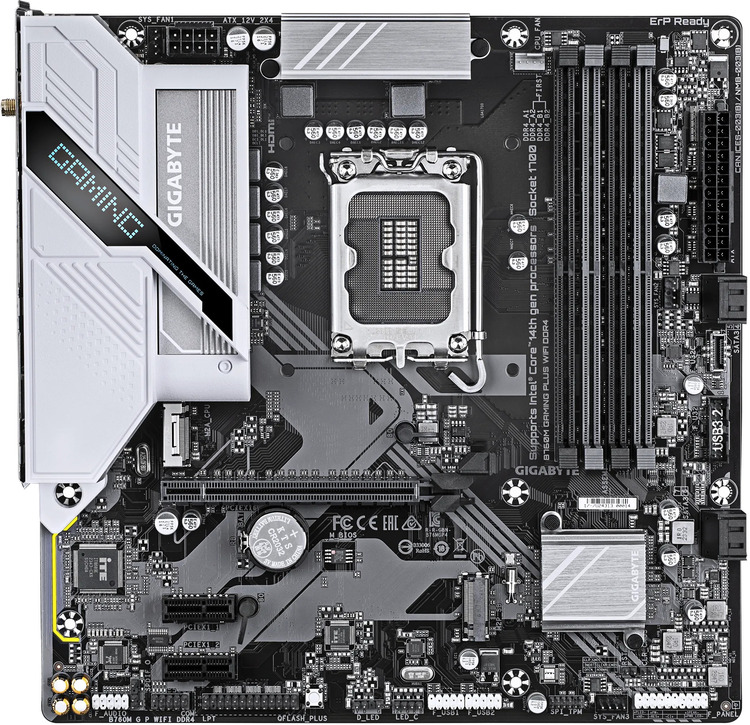

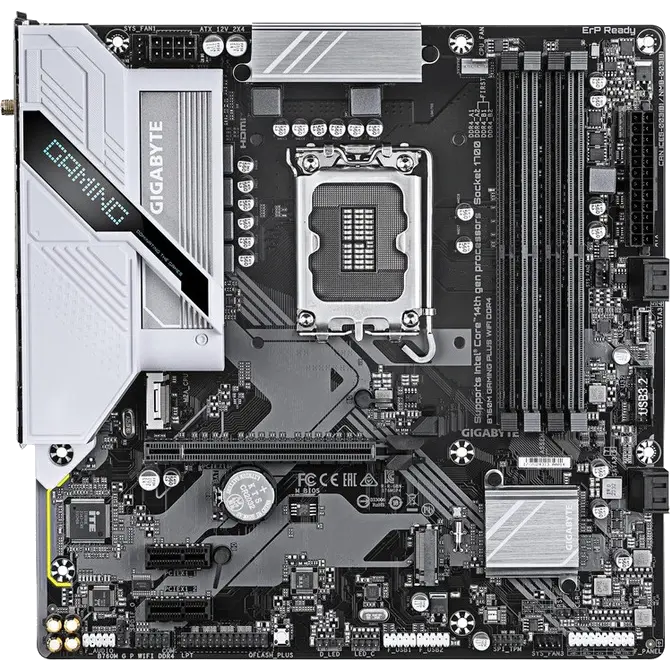

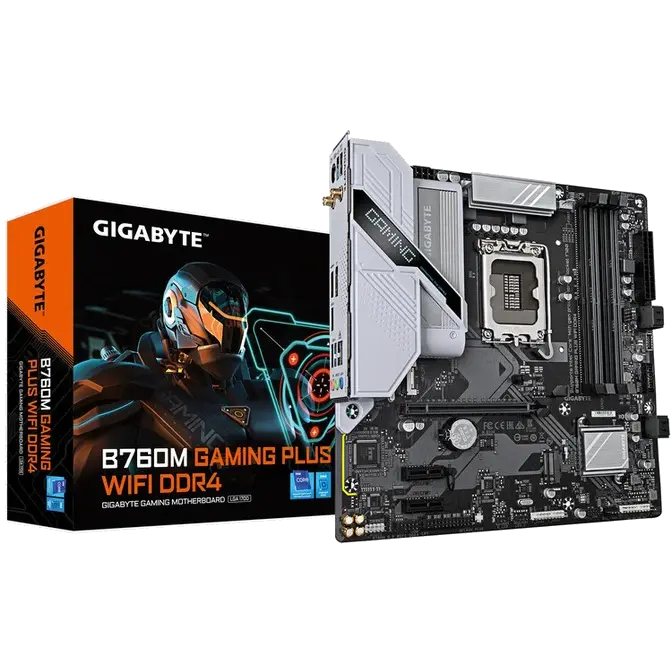

Gigabyte S1700 B760M GAMING PLUS WIFI Micro-ATX DDR4 Wi-Fi6 Motherboard Black
Web ID: 48969
CPU Socket: Intel 1700
Cooler Socket: S1700 Bracket
Motherboard Form Factor: ATX
Chipset: Intel B760
RAM Type: DDR4
WiFi Standard: Wi-Fi 6
Bluetooth: Bluetooth || Ver 5.4
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: LAN || 1 Gigabit
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 5
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: B760M G P WIFI DDR4
Manufacturer Website
$179
| CPU | |
|---|---|
| LGA1700 socket | Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| L3 cache | Varies with CPU |
| Note | (Please refer "CPU Support List" for more information.) |
| Chipset | |
| Chipset | Intel® B760 Express Chipset |
| Memory | |
| Memory Support | DDR4 5333(O.C.) down to 2133 MT/s modules |
| DIMM Slots | 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM) |
| Architecture | Dual channel |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) |
| Non-ECC Support | Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| XMP Support | Supported |
| Note | CPU & memory configuration may affect speeds; see Memory Support List |
| Onboard Graphics | |
| HDMI | 1 x HDMI (4096x2160@60 Hz), HDMI 2.1, HDCP 2.3 |
| DisplayPort | 1 x DisplayPort (4096x2304@60 Hz), DP 1.2, HDCP 2.3 |
| Display Support | Up to triple-display |
| Audio | |
| Codec | Realtek® Audio CODEC |
| Channels | 2/4/5.1/7.1-channel (configurable via software) |
| S/PDIF Out | Supported |
| LAN | |
| LAN | Realtek® GbE LAN (1/0.1/0.01 Gbps) |
| Wireless | |
| Wi-Fi | Realtek® Wi-Fi 6 RTL8851BE (2.4/5 GHz, a/b/g/n/ac/ax) |
| Bluetooth | Bluetooth 5.3 |
| 160MHz | Supports 11ax 160MHz |
| Expansion Slots | |
| PCIEX16 (CPU) | 1 x PCIe 4.0 x16 (graphics card or NVMe SSD only) |
| PCIEX1 (Chipset) | 2 x PCIe 3.0 x1 slots |
| Storage Interface | |
| M.2 CPU | 1 x M.2 PCIe 4.0 x4/x2 (M2A_CPU) |
| M.2 Chipset | 1 x M.2 PCIe 4.0 x4/x2 (M2P_SB) |
| SATA | 4 x SATA 6Gb/s; RAID 0/1/5/10 |
| USB | |
| USB Type-C (Internal) | 1 x USB 3.2 Gen 1 |
| USB 3.2 Gen 1 | 5 ports (3 rear, 2 internal header) |
| USB 2.0 (Rear) | 2 ports |
| USB 2.0 (Internal) | 4 ports (via hub) |
| Internal I/O | |
| Power | 1 x 24-pin ATX, 1 x 8-pin ATX12V |
| Cooling | 1 CPU fan, 3 system fans |
| Lighting | 1 ARGB header, 1 RGB header |
| M.2 | 2 connectors |
| SATA | 4 connectors |
| Front Panel | Header |
| Front Audio | Header |
| USB | USB-C, USB 3.2 Gen1, USB 2.0 headers |
| TPM | 1 header (GC-TPM2.0 SPI modules) |
| Serial/Parallel | 1 each |
| S/PDIF | Out header |
| Buttons/Jumpers | Q-Flash Plus, Reset, Clear CMOS |

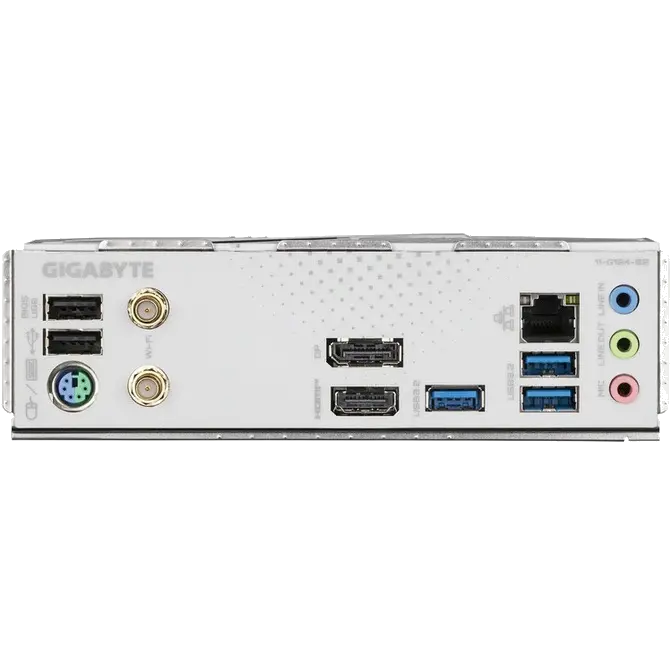

| Back Panel | |
| USB 2.0 | 2 ports |
| PS/2 | 1 port |
| Wi-Fi Antenna | 2 x SMA (2T2R) |
| Display | 1 DP, 1 HDMI |
| USB 3.2 Gen 1 | 3 ports |
| LAN | 1 x RJ-45 |
| Audio | 3 jacks |
| I/O Controller | |
| Controller | iTE® I/O Controller Chip |
| H/W Monitoring | |
| Monitoring | Voltage, temperature, fan speed, water flow |
| Warnings | Fan fail warning |
| Control | Fan speed control (dependent on fan type) |
| BIOS | |
| Flash | 1 x 128 Mbit |
| Type | AMI UEFI BIOS |
| Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | |
| GCC | Support for GIGABYTE Control Center |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Bundled Software | |
| Software | Norton® Internet Security (OEM), LAN bandwidth software |
| Operating System | |
| Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
