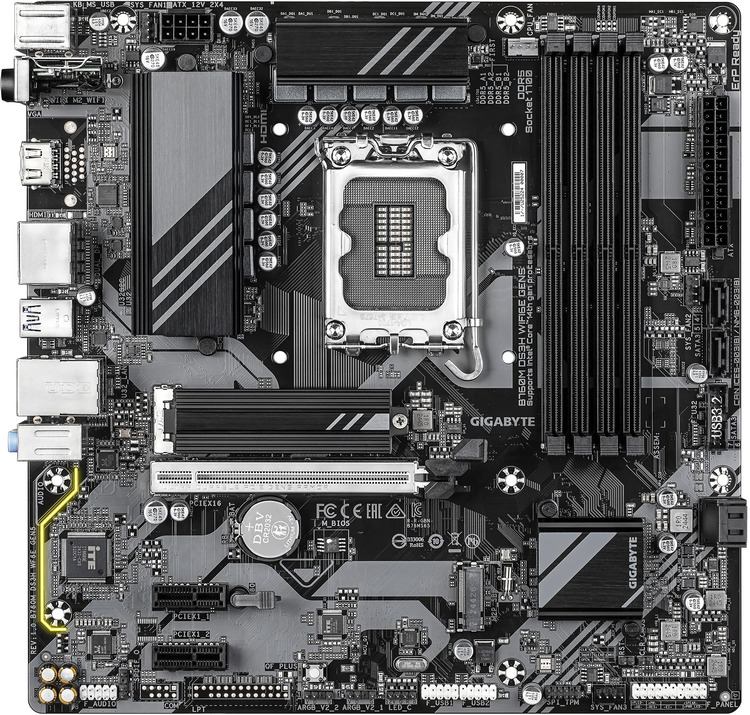

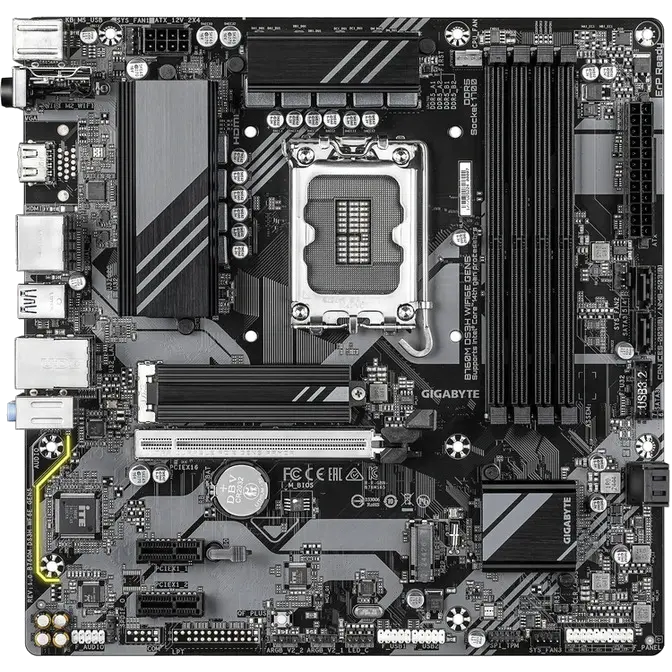

Gigabyte S1700 B760M DS3H WIFI6E GEN5 Micro-ATX Motherboard
Web ID: 46223
CPU Socket: Intel 1700
Cooler Socket: S1700 Bracket
Motherboard Form Factor: Micro-ATX
Chipset: Intel B760
RAM Type: DDR5
WiFi Standard: Wi-Fi 6E
Bluetooth: Bluetooth || Ver 5.3
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 5
USB-C Ports: 1
Manufacturer Warranty: 3 Year
Manufacturer PN: B760M DS3H WF6E GEN5
GTIN: 889523050507
Manufacturer Website
$219
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 5600/5200/4800/4400 MT/s memory modules |
| 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules | |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Support for HDMI 2.1 version and HDCP 2.3 | |
| Support for native HDMI 2.1 TMDS compatible ports | |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| Support for DisplayPort 1.2 version and HDCP 2.3 | |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| Support for DisplayPort 1.2 version | |
| Support for up to triple-display at the same time | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel® Wi-Fi 6E AX210: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard | |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
| Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x antenna connectors (2T2R) | |
| 1 x HDMI port (Note) | |
| 2 x DisplayPorts (Note) | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
