Gigabyte RTX2060 6GB WINDFORCE OC PCIe Video Card PN GV-N2060WF2OC-6GD
Web ID: 25128
Powered by GeForce RTX 2060. Core Clock 1770 MHz. Integrated with 6GB GDDR6 192-bit memory interface. WINDFORCE 2X Cooling System with alternate spinning fans. 100mm unique blade fans. Protection back plate. 1 x HDMI, 3 x DisplayPort
Manufacturer Warranty: 3 Year
Manufacturer PN: GV-N2060WF2OC-6GD

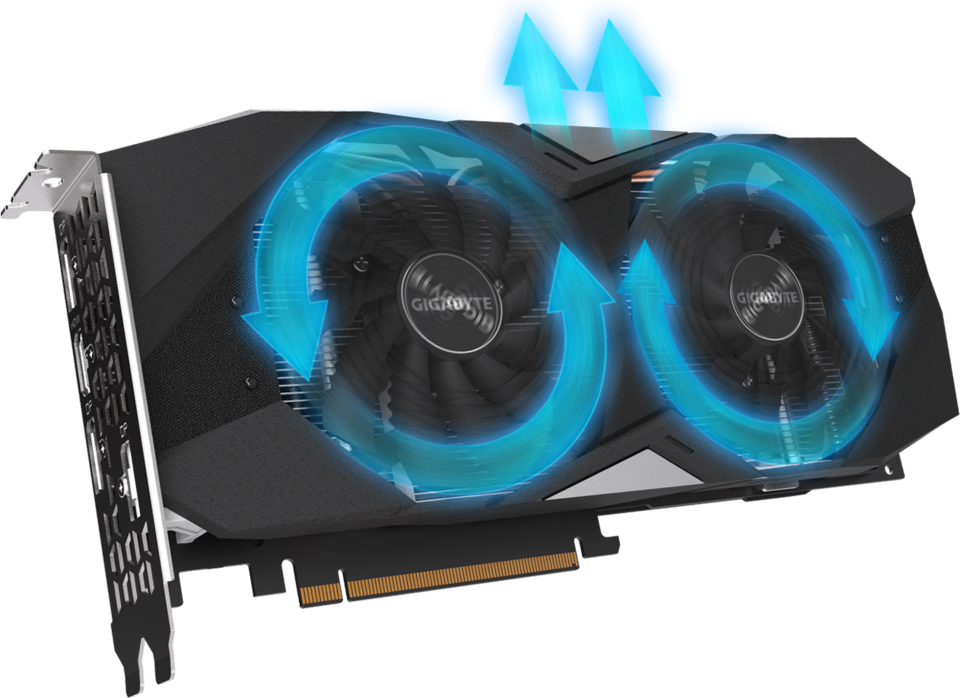

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan, together delivering an effective heat dissipation.
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
Smooth Airflow : better heat dissipation
Turbulent Airflow : worse heat dissipation

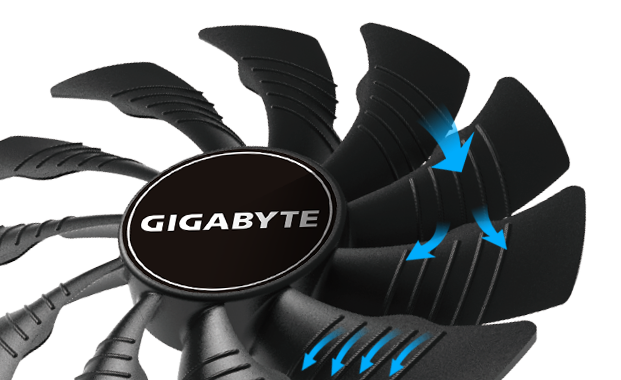

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

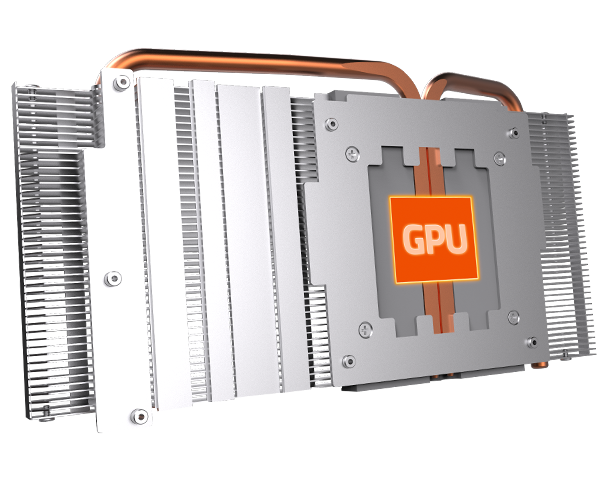

HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
Extreme durability and overclocking
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Protection Back Plate
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

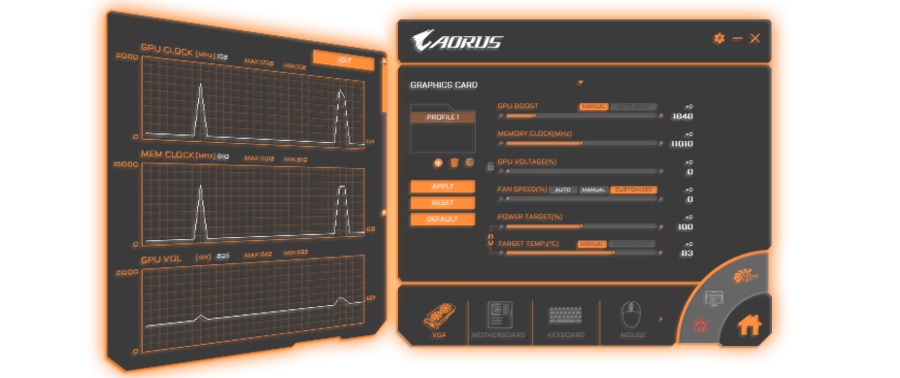

IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
- Graphics ProcessingGeForce RTX™ 2060
- Core Clock1770 MHz (Reference card: 1680 MHz)
- CUDA® Cores1920
- Memory Clock14000 MHz
- Memory Size6 GB
- Memory TypeGDDR6
- Memory Bus192 bit
- Memory Bandwidth (GB/sec)336 GB/s
- Card BusPCI-E 3.0 x 16
- Digital max resolution7680x4320@60Hz
- Card sizeL=264.9 W=120.58 H=40.41 mm
- PCB FormATX
- Recommended PSU500W
- Power Connectors8 Pin*1
- OutputDisplayPort 1.4 *3
HDMI 2.0b *1
- SLI supportNo
- Accessories1. Quick guide
2. Driver CD
