Gigabyte GTX1650 4GB Windforce OC PCIe Video Card PN GV-N1650WF2OC-4GD

Web ID: 25699

Powered by GeForce GTX 1650 Integrated with 4GB GDDR5 128-bit memory interface WINDFORCE 2X Cooling System with alternate spinning fans 90 mm unique blade fans Core Clock 1785 MHz (Reference card is 1665 MHz) 1x HDMI 1x DVI 1x DisplayPort ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: GV-N1650WF2OC-4GD
GTIN: 889523016992
Manufacturer Website

$339

WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, and 3D active fan, together delivering an effective heat dissipation.

ALTERNATE SPINNING

The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

ALTERNATE SPINNING

Smooth Airflow : better heat dissipation

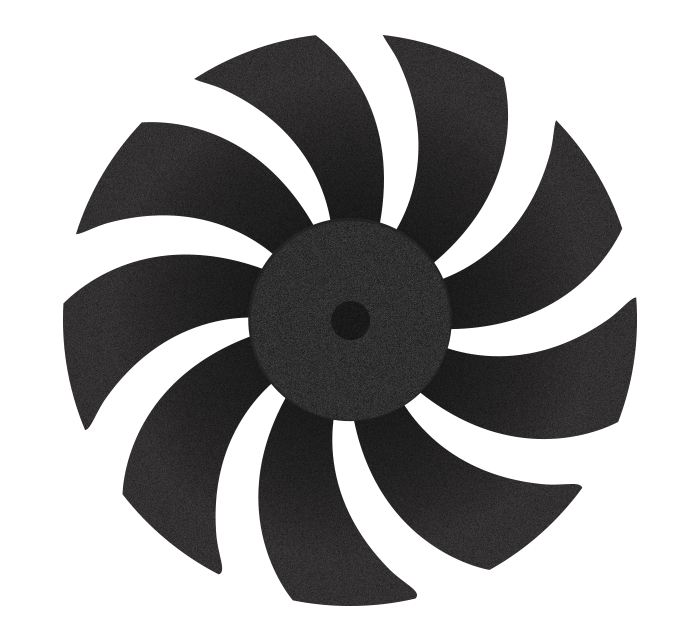

STANDARD SPINNING






Turbulent Airflow : worse heat dissipation

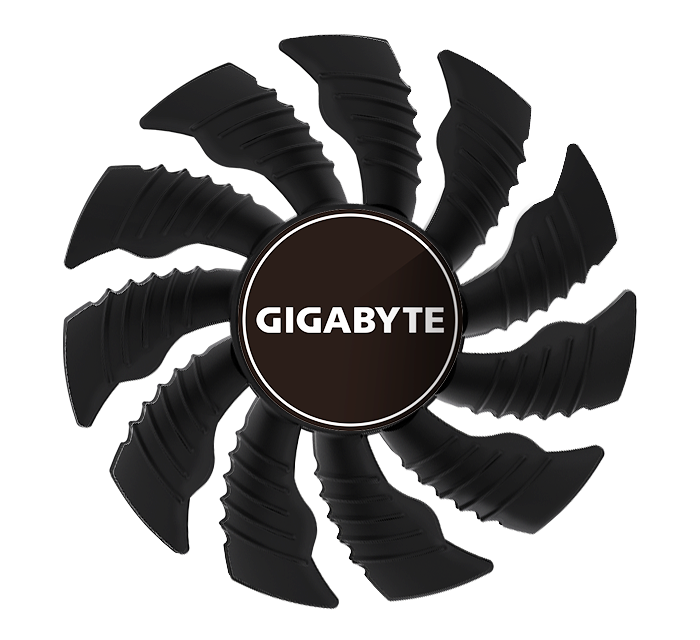

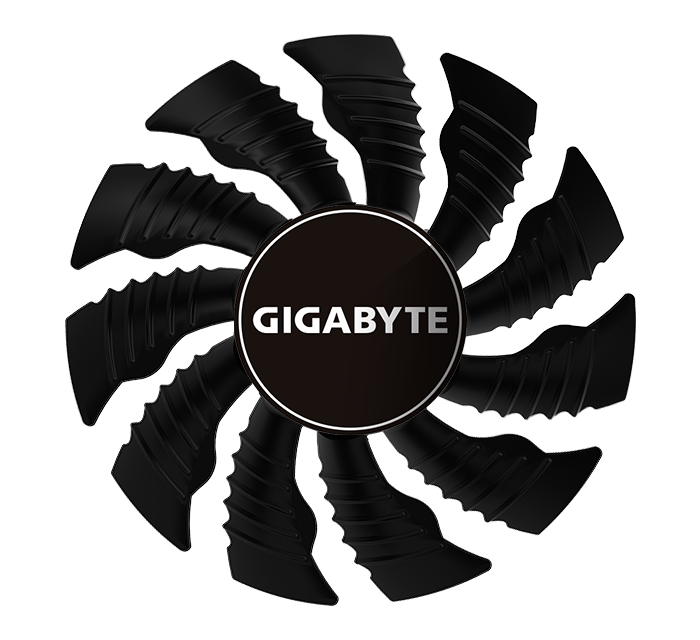

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

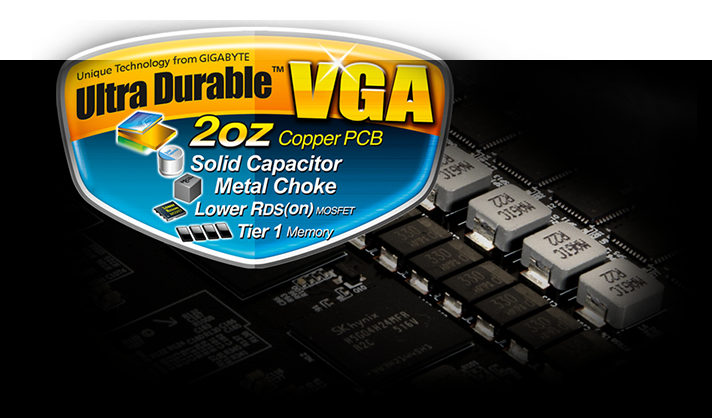

BUILT STRONG

Extreme durability and overclocking

The graphics card uses the 3+1 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.(Reference card is 2+1 power phase)

IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.

  • Graphics Processing
    GeForce® GTX 1650
  • Core Clock
    1785 MHz (Reference card is 1665 MHz)
  • CUDA® Cores
    896
  • Memory Clock
    8002 MHz
  • Memory Size
    4 GB
  • Memory Type
    GDDR5
  • Memory Bus
    128 bit
  • Memory Bandwidth (GB/sec)
    128 GB/s
  • Card Bus
    PCI-E 3.0 x 16
  • Digital max resolution
    7680x4320@60Hz
  • Multi-view
    4
  • Card size
    L=229 W=119 H=36 mm
  • PCB Form
    ATX
  • DirectX
    12
  • OpenGL
    4.5
  • Recommended PSU
    300W
  • Power Connectors
    6 Pin*1
  • Output
    DisplayPort 1.4 *1
    HDMI 2.0b *3
  • SLI support
    No
  • Accessories
    1. Quick guide
    2. Driver CD
