Gigabyte GTX1060 G1 Gaming 6GB PCIe Video Card PN GV-N1060G1-GAMING-6GD
Web ID: 18885
NVIDIA GeForce GTX 1060 GPU, Core Clock Boost: 1847 MHz/ Base: 1620 MHz in OC Mode, Boost: 1809 MHz/ Base: 1594 MHz in Gaming, 8008MHz Memory Clock, 6GB GDDR5 Memory, PCIe 3.0 x16, 1 x Dual-link DVI-D, 1 x HDMI-2.0b, 3 x Display Port 1.4
Manufacturer PN: GV-N1060G1-GAMING-3GD
Warranty: 3 Year
GIGABYTE G1 Gaming Series graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA® Pascal™ GPU architecture, G1 gaming graphics card brings you incredible gaming experience.
-Pascal-powered graphics card give you superior performance and power efficiency
-Support up to 8K display @60Hz
-Outstanding performance for Virtual Reality gaming
WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm unique blade fans, 2 pure copper composite heat-pipes, alternate spinning fan design, and heat pipes direct touch technology, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
WINDFORCE 2X Cooling System-Fans
Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.

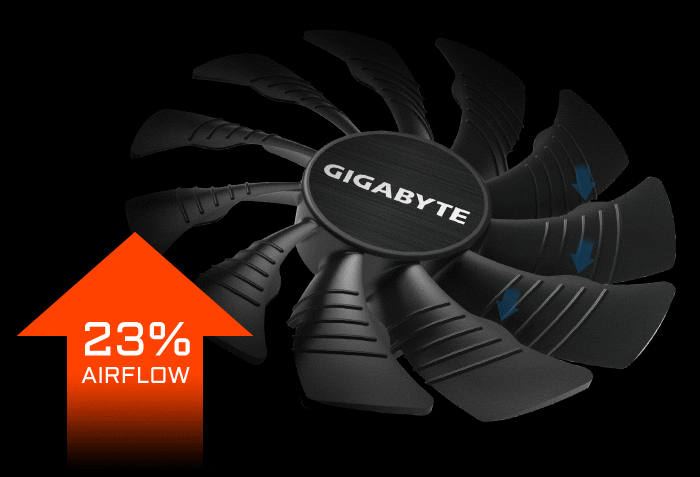

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

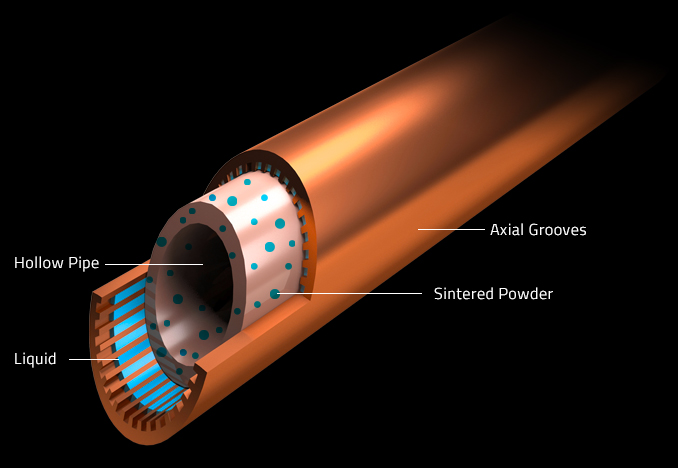

WINDFORCE 2X Cooling System-Heat Pipes
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

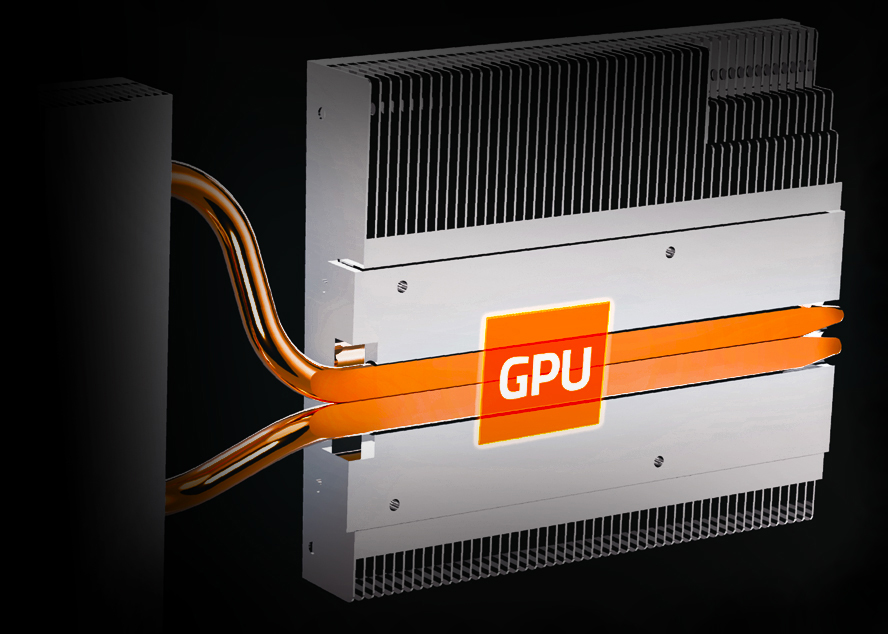

Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
16.8M Customizable Color Lighting
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.
|Graphics Processing||GeForce® GTX 1060|
|Core Clock||Boost: 1847 MHz/ Base: 1620 MHz in OC Mode |
Boost: 1809 MHz/ Base: 1594 MHz in Gaming
|Process Technology||16 nm|
|Memory Clock||8008 MHz|
|Memory Size||6 GB|
|Memory Bus||192 bit|
|Card Bus||PCI-E 3.0 x 16|
|Output||Dual-link DVI-D *1 |
HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz)
Display Port-1.4 *3 (Max Resolution: 7680x4320 @60 Hz)
|Digital max resolution||7680x4320|
|Power Connectors||8 pin*1|
