| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|---|---|
| Chipset | AMD X870E |
| Memory | Support for 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM memory modules Support for AMD EXPO™ and XMP memory modules (Refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs, max resolution 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, max resolution 4096x2160@60 Hz - 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs, max resolution 1920x1080@30 Hz (Graphics specifications may vary depending on CPU support.) |
| Audio | 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out |
| LAN | 2 x Realtek® 10GbE LAN chips (10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication | MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a/b/g/n/ac/ax/be, supporting 2.4/5/6 GHz bands - Bluetooth 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: - AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x8 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x4/x2 SSDs 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices |
| USB | CPU + ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset + USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset + USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports via internal headers Chipset: - Multiple USB Type-C® ports with USB 3.2 Gen 2x2 and Gen 2 support - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4 x USB 2.0/1.1 ports via internal headers |
| Internal I/O Connectors | Includes: - Power connectors (24-pin ATX, 2 x 8-pin ATX 12V, PCIe power) - Multiple fan headers and extension headers - RGB headers - SATA connectors - M.2 connectors - USB headers (Type-C®, USB 3.2 Gen 1, USB 2.0) - Temperature sensor headers - Power/reset/Clear CMOS buttons |

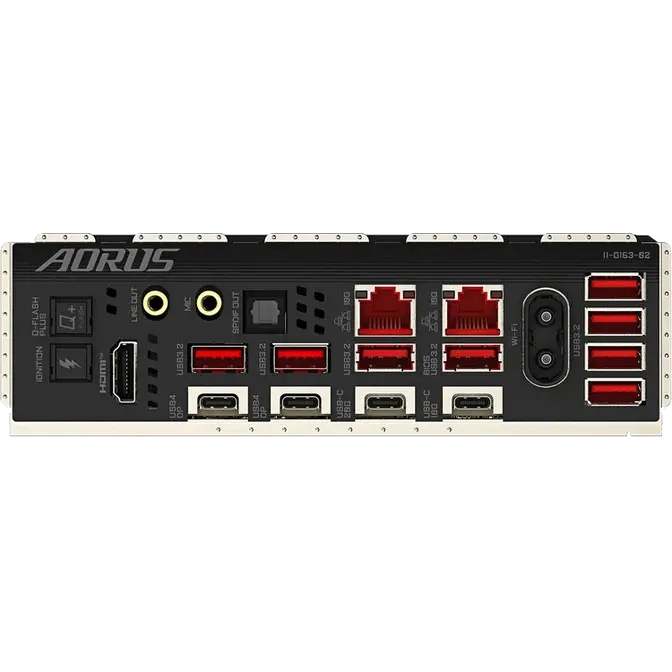

| Back Panel Connectors | Includes: - Q-Flash Plus button - OC Ignition button - HDMI port - USB4® Type-C® ports - USB Type-C® ports (Gen 2 and Gen 2x2) - 8 x USB 3.2 Gen 2 Type-A ports - 2 x RJ-45 ports - 2 x antenna connectors - Audio jacks - Optical S/PDIF Out connector |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 512 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | E-ATX Form Factor; 30.5cm x 28.5cm |
