Original price was: $829.$749Current price is: $749.
Click & Collect
Low stock at Mt Gravatt
Delivery
Avaliable for Fast Dispatch In stock
Buy Now, Pay Later. T&Cs Apply
| CPU Support | AMD Socket AM5 Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Refer to GIGABYTE's website for latest CPU support list) |
|---|---|
| Chipset | AMD X870E |
| Memory | - DDR5 9000(O.C) to 4800 MT/s - 4 x DDR5 DIMM sockets, up to 256 GB - Dual channel architecture - Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 - Supports AMD EXPO™ and XMP (Refer to GIGABYTE's website for memory support list) |
| Onboard Graphics | - Integrated AMD Radeon™ Graphics - 2 x USB4® Type-C® (3840x2160@240Hz, DisplayPort 1.4, HDR) - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) - 1 x Front HDMI (1920x1080@30Hz, HDMI 1.4) (Graphics specs vary by CPU) |
| Audio | - Realtek® ALC1220 CODEC - DSD audio support - High Definition Audio: 2/4/5.1/7.1-channel - S/PDIF Out support |
| LAN | Realtek® 5GbE LAN (5G/2.5G/1G/100 Mbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) - Bluetooth 5.4 - 11be 320MHz support (Requires Windows 11 SV3; availability varies by region) |
| Expansion Slots | - 1 x PCIe x16 (CPU): • Ryzen™ 9000/7000: PCIe 5.0 x16 • Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 • Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 - 1 x PCIe x16 (Chipset): PCIe 4.0 x4 - 1 x PCIe x16 (Chipset): PCIe 3.0 x2 |
| Storage Interface | - 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 - 1 x M.2 (M2B_CPU): PCIe 5.0 x4/x2 (shared bandwidth with USB4) - 2 x M.2 (M2C_SB, M2D_SB): PCIe 4.0 x4/x2 - 4 x SATA 6Gb/s - RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen™ 9000) - RAID 0/1/10 for SATA |
| USB Ports | - 2 x USB4® Type-C® (CPU + ASMedia) - 1 x USB Type-C® (CPU, USB 3.2 Gen 2) - 4 x USB 3.2 Gen 1 (internal headers) - 1 x USB Type-C® (Chipset, USB 3.2 Gen 2x2, 65W PD/QC 4+) - 1 x USB Type-C® (back panel, USB 3.2 Gen 2) - 5 x USB 3.2 Gen 2 Type-A (red, back panel) - 3 x USB 3.2 Gen 1 (back panel) - 4 x USB 2.0/1.1 (internal headers) |
| Internal I/O Connectors | - 1 x 24-pin ATX main power - 2 x 8-pin ATX 12V power - 1 x PCIe power - 1 x CPU fan header - 1 x CPU fan/water pump header - 4 x system fan headers - 2 x system fan/water pump headers - 3 x addressable RGB Gen2 LED headers - 1 x RGB LED header - 4 x SATA 6Gb/s connectors - 4 x M.2 Socket 3 connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB Type-C® header (USB 3.2 Gen 2x2) - 2 x USB 3.2 Gen 1 headers - 2 x USB 2.0/1.1 headers - 1 x noise detection header - 1 x HDMI port (Note) - 1 x TPM header (GC-TPM2.0 SPI V2 only) - 2 x temperature sensor headers - 1 x reset jumper - 1 x Clear CMOS jumper |
|---|---|

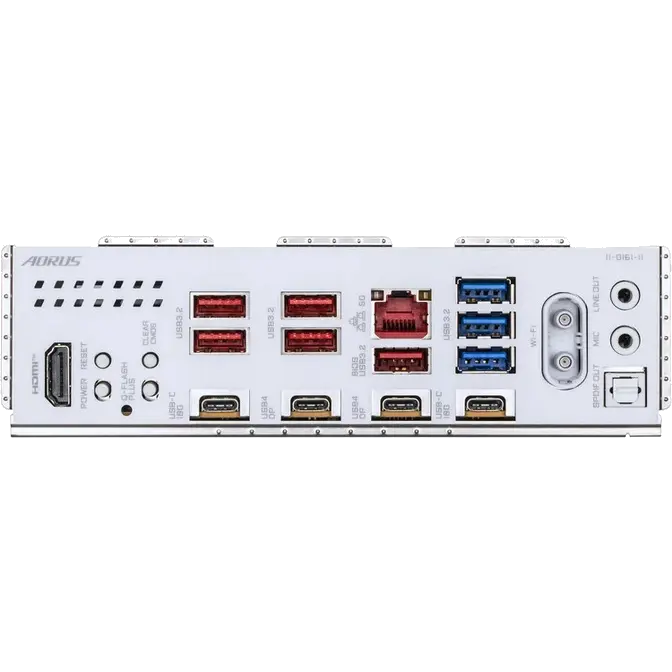

| Back Panel Connectors | - 1 x HDMI port (Note) - 1 x reset button - 1 x power button - 1 x Clear CMOS button - 1 x Q-Flash Plus button - 5 x USB 3.2 Gen 2 Type-A (red) - 2 x USB Type-C® (USB 3.2 Gen 2) - 2 x USB4® Type-C® (DisplayPort (Note)) - 1 x RJ-45 LAN port - 3 x USB 3.2 Gen 1 - 2 x antenna connectors (2T2R) - 2 x audio jacks - 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control (depends on fan/pump) - Noise detection |
| BIOS | - 1 x 512 Mbit flash - AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - GIGABYTE Control Center (GCC) - Q-Flash - Q-Flash Plus - Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
3 Year
Manufacturers Warranty
