| CPU | AMD Socket AM5, support for AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
|---|---|
| Chipset | AMD X870E |
| Memory | - Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s - 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM) - Dual channel memory architecture - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules - Support for AMD EXPO™ and XMP profiles |
| Onboard Graphics | - Integrated Graphics Processor with AMD Radeon™ Graphics - 2 x USB4® USB Type-C® ports (DisplayPort output, max resolution 3840x2160@240 Hz) - 1 x HDMI port (max resolution 4096x2160@60 Hz) - 1 x front HDMI port (max resolution 1920x1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz bands) - Bluetooth 5.4 - Support for 11be 320MHz wireless standard |
| Expansion Slots | - 1 x PCI Express x16 slot (CPU integrated): • Ryzen™ 9000/7000: PCIe 5.0 x16 • Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 • Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 - 1 x PCI Express x16 slot (Chipset): PCIe 4.0 x4 - 1 x PCI Express x16 slot (Chipset): PCIe 3.0 x2 |
| Storage Interface | - 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 - 1 x M.2 (M2B_CPU): PCIe 5.0/4.0 x4/x2 - 2 x M.2 (M2C_SB, M2D_SB): PCIe 4.0 x4/x2 - 4 x SATA 6Gb/s connectors - RAID 0/1/5/10 for NVMe SSDs (RAID 5 only on Ryzen™ 9000) - RAID 0/1/10 for SATA |
| USB | - 2 x USB4® Type-C® ports (back panel) - 1 x USB Type-C® (USB 3.2 Gen 2) - 5 x USB 3.2 Gen 2 Type-A ports - 3 x USB 3.2 Gen 1 ports - Internal headers for USB 3.2 Gen 2x2, Gen 1, and USB 2.0 |
| Internal I/O | - 24-pin ATX power - 2 x 8-pin ATX 12V power - 1 x PCIe power connector - Multiple fan headers - RGB headers - 4 x M.2 connectors - 4 x SATA connectors - USB headers - TPM header - HDMI port - Reset jumper - Clear CMOS jumper - Temperature sensor headers - Noise detection header |

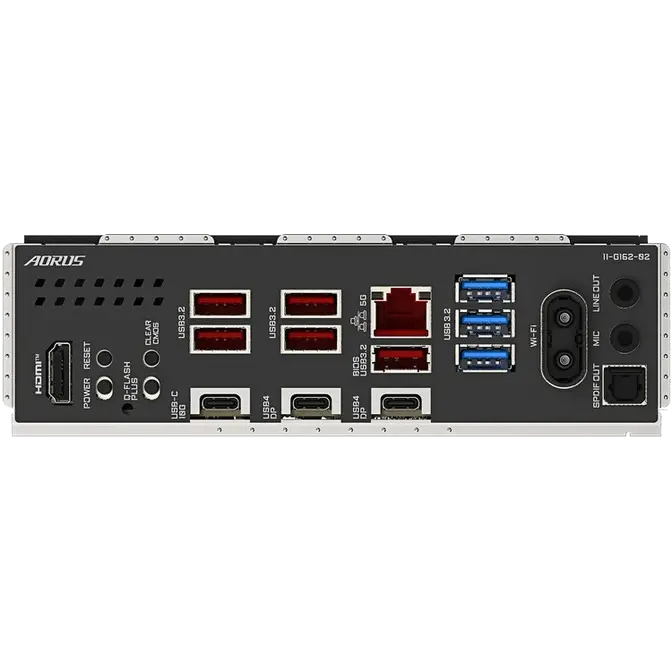

| Back Panel | - HDMI port - Reset button - Power button - Clear CMOS button - Q-Flash Plus button - 5 x USB 3.2 Gen 2 Type-A ports - 1 x USB Type-C® (USB 3.2 Gen 2) - 2 x USB4® Type-C® ports - 1 x RJ-45 port - 3 x USB 3.2 Gen 1 ports - 2 x antenna connectors - 2 x audio jacks - 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control, noise detection |
| BIOS | 512 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
