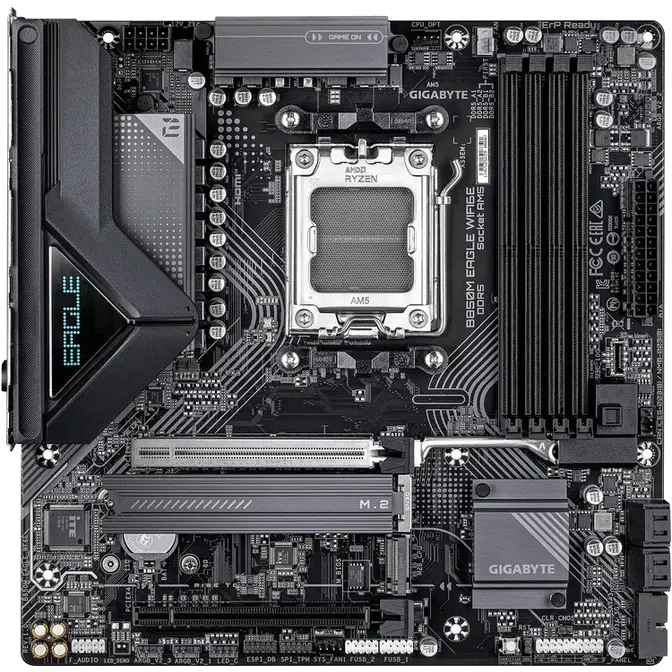

| CPU Support | AMD Socket AM5 Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (Refer to GIGABYTE's website for latest CPU support list) |
|---|---|
| Chipset | AMD B850 |
| Memory | DDR5 8200(O.C) to 4400 MT/s 4 x DDR5 DIMM sockets, up to 256 GB Dual channel architecture Supports non-ECC Un-buffered DIMMs Supports AMD EXPO™ and XMP (Refer to GIGABYTE's website for memory support list) |
| Onboard Graphics | Integrated AMD Radeon™ Graphics 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) 2 x DisplayPort (3840x2160@144Hz, DP 1.4) Supports triple-display |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel support (Configurable via audio software) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) Bluetooth 5.3 Supports 11ax 160MHz |
| Expansion Slots | 1 x PCIe x16 (CPU) - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 1 x PCIe x16 (Chipset) – PCIe 3.0 x4 |
| Storage Interface | 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 1 x M.2 (M2B_CPU): PCIe 4.0 x4/x2 4 x SATA 6Gb/s RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000) RAID 0/1/10 for SATA |
| USB Ports | CPU: - 1 x USB-C (USB 3.2 Gen 2) - 1 x USB 3.2 Gen 2 Type-A (red) - 4 x USB 2.0 Chipset: - 1 x USB-C (USB 3.2 Gen 2, internal) - 4 x USB 3.2 Gen 1 (2 rear, 2 internal) - 4 x USB 2.0 (internal) |
| Internal I/O | 1 x 24-pin ATX 1 x 8-pin ATX 12V 1 x CPU fan 1 x CPU fan/water pump 1 x system fan 1 x system fan/water pump 3 x ARGB Gen2 headers 1 x RGB header 4 x SATA 2 x M.2 1 x front panel 1 x front audio 1 x USB-C (USB 3.2 Gen 2) 1 x USB 3.2 Gen 1 2 x USB 2.0 1 x TPM header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

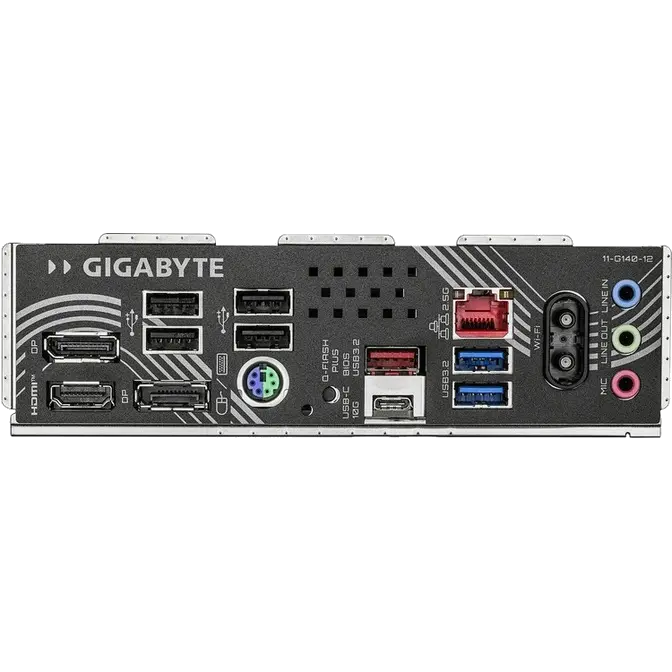

| Back Panel I/O | 1 x HDMI 2 x DisplayPort 1 x Q-Flash Plus button 1 x PS/2 port 1 x USB 3.2 Gen 2 Type-A (red) 1 x USB-C (USB 3.2 Gen 2) 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x RJ-45 2 x antenna connectors 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water flow rate Fan fail warning Fan/pump speed control (depends on installed hardware) |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash / Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
