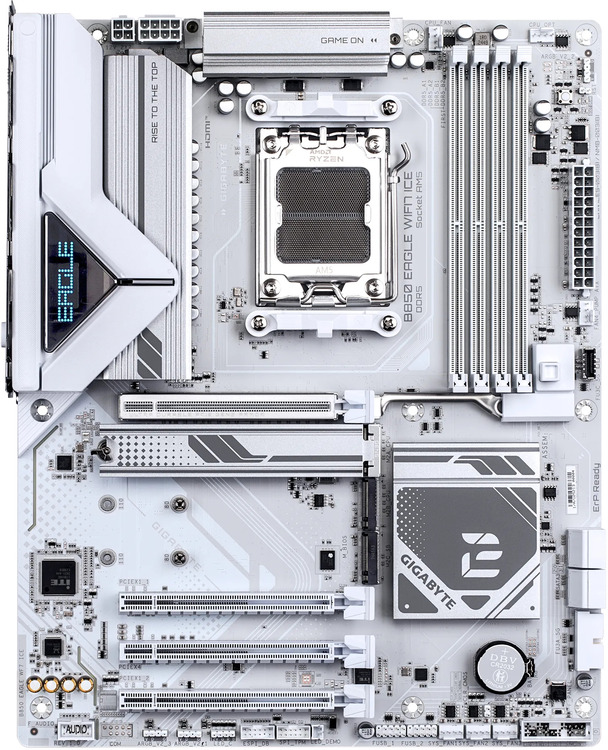

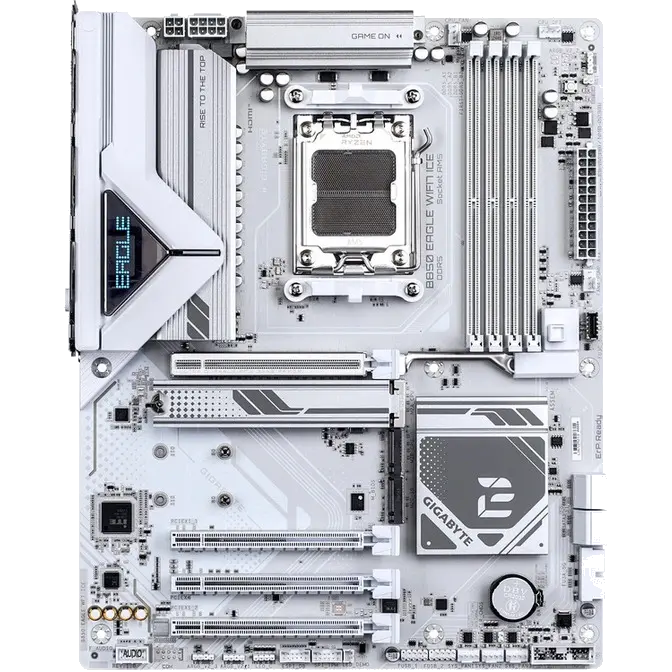

Gigabyte AM5 B850 EAGLE WIFI7 ICE ATX DDR5 Motherboard
Web ID: 46387
CPU Socket: AMD AM5
Cooler Socket: AM5 Bracket
Motherboard Form Factor: ATX
Chipset: AMD B850
RAM Type: DDR5
WiFi Standard: Wi-Fi 7
Bluetooth: Bluetooth || Ver 5.4
PCIe Size: PCIe x16
Storage Interface: M.2 PCIe || SATA
LAN Speed: LAN || 2.5 Gigabit
Audio: 7.1 Channel
Display Output: HDMI Out || DisplayPort Out
USB-A Ports: 8
USB-C Ports: 1
Manufacturer Warranty: 3 Year
Manufacturer PN: B850 EAGLE WF7 ICE
GTIN: 889523049730
Manufacturer Website
$329SAVE $20
| CPU | AMD Socket AM5, supports: • AMD Ryzen™ 9000 Series • AMD Ryzen™ 8000 Series • AMD Ryzen™ 7000 Series (See GIGABYTE's website for latest support list) |
| Chipset | AMD B850 |
| Memory | • DDR5 8200(O.C) to 4400 MT/s • 4 x DDR5 DIMM sockets, up to 256 GB • Dual channel architecture • Non-ECC Un-buffered DIMM support • Supports AMD EXPO™ & XMP (See GIGABYTE's website for compatibility) |
| Onboard Graphics | Integrated AMD Radeon™ Graphics: • 1 x DisplayPort (3840x2160@144Hz, DP 1.4, HDR) • 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) |
| Audio | Realtek® Audio CODEC • High Definition Audio • 2/4/5.1/7.1-channel support (Configurable via audio software) |
| LAN | Realtek® 2.5GbE LAN (2.5G/1G/100M) |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE • 802.11a/b/g/n/ac/ax/be • 2.4/5/6 GHz bands • Bluetooth 5.4 • 11be 160MHz support (Requires Windows 11 SV3) |
| Expansion Slots | • 1 x PCIe x16 (CPU): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 • 1 x PCIe x16 (Chipset, x4) • 2 x PCIe x16 (Chipset, x1) (Note: PCIEX1_1/2 share bandwidth with SATA3 0/1) |
| Storage Interface | • 3 x M.2 (M2A_CPU, M2B_CPU, M2C_SB) • 4 x SATA 6Gb/s • RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000) • RAID 0/1/10 for SATA |
| USB Ports | CPU: • 1 x USB-C (USB 3.2 Gen 1) • 2 x USB 3.2 Gen 2 Type-A Chipset: • 1 x USB-C (internal, USB 3.2 Gen 1) • 4 x USB 3.2 Gen 1 (2 rear, 2 internal) • 4 x USB 2.0 (rear) Chipset + Hub: • 4 x USB 2.0 (internal) |
| Internal I/O | • 1 x 24-pin ATX • 1 x 8-pin + 1 x 4-pin ATX 12V • 1 x CPU fan, 1 x CPU/water pump • 3 x system fan, 1 x system/water pump • 3 x ARGB Gen2, 1 x RGB header • 3 x M.2, 4 x SATA • Front panel/audio headers • USB-C, USB 3.2, USB 2.0 headers • TPM header • Reset button/jumper, Clear CMOS jumper |

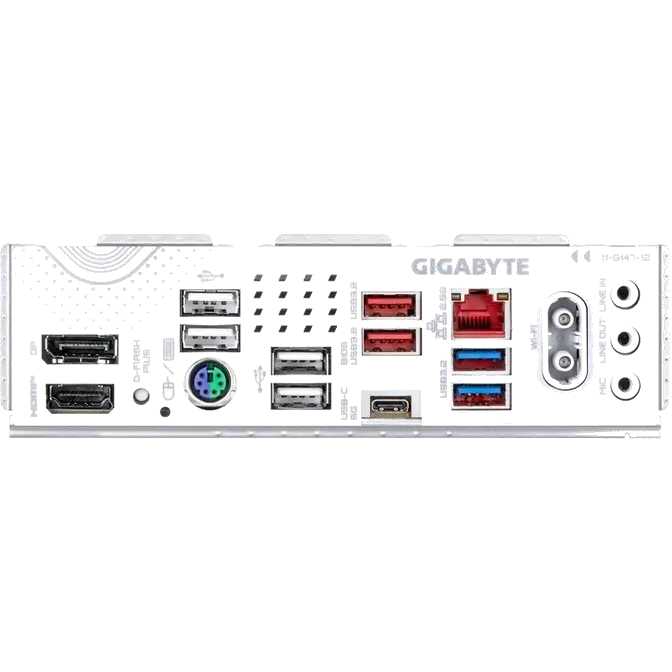

| Back Panel I/O | • 1 x DisplayPort • 1 x HDMI • 1 x Q-Flash Plus button • 4 x USB 2.0 • 1 x PS/2 • 2 x USB 3.2 Gen 2 Type-A • 1 x USB-C (USB 3.2 Gen 1) • 1 x RJ-45 • 2 x USB 3.2 Gen 1 • 2 x antenna connectors • 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | • Voltage, temperature, fan speed • Water cooling flow • Fan fail warning • Fan/pump speed control (depends on hardware) |
| BIOS | • 256 Mbit flash • AMI UEFI BIOS • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | • GIGABYTE Control Center (GCC) • Q-Flash, Q-Flash Plus • Smart Backup |
| Bundled Software | • Norton® Internet Security (OEM) • LAN bandwidth management |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
