| Specification | Details |
|---|---|
| CPU Support | AMD Socket AM5, supporting AMD Ryzen™ 9000 Series, AMD Ryzen™ 8000 Series, and AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B850 |
| Memory Support | DDR5 8600(OC) / 8400(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s |
| Memory Slots | 4 × DDR5 DIMM Slots |
| Maximum Memory | 256GB (4 × 64GB) |
| Memory Architecture | Dual Channel |
| ECC Support | ECC and Non-ECC Unbuffered DIMM Memory Modules |
| Memory Profiles | AMD EXPO™ and Intel XMP Memory Module Support |
| Integrated Graphics Support | AMD Radeon™ Graphics (CPU Dependent) |
| Display Outputs | 1 × USB Type-C® with DisplayPort 1.4 and HDR (up to 3840 × 2160 @ 144Hz) 1 × HDMI 2.1 with HDCP 2.3 and HDR (up to 4096 × 2160 @ 60Hz) |
| Audio | Realtek® ALC1220 Codec, High Definition Audio, 2/4/5.1/7.1-Channel Audio, S/PDIF Out Support |
| LAN | Dual Marvell® AQtion AQC113C 10GbE LAN Controllers (10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps) |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE, 802.11a/b/g/n/ac/ax/be, Dual-Band & Tri-Band 2.4GHz / 5GHz / 6GHz, Bluetooth® 5.4 |
| Primary PCIe Slot | 1 × PCIe x16 (PCIEX16), PCIe 5.0 x16 on Ryzen™ 9000/7000 Series CPUs |
| Secondary PCIe Slot | 1 × PCIe x16 (PCIEX8), PCIe 5.0 x8 on Ryzen™ 9000/7000 Series CPUs |
| Additional PCIe Slot | 1 × PCIe x16 Physical Slot (PCIEX2), PCIe 4.0 x2 via Chipset |
| M.2 Storage Slots | 2 × M.2 PCIe 5.0 x4/x2 Slots (CPU Connected) 1 × M.2 PCIe 4.0 x2 Slot (Chipset Connected) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, and 10 for NVMe SSDs (RAID 5 on Ryzen™ 9000 Series only), RAID 0, 1, and 10 for SATA Devices |
| USB Connectivity | Rear: 3 × USB 3.2 Gen2 Type-A, 1 × USB Type-C®, 4 × USB 3.2 Gen1, 4 × USB 2.0 Internal: 1 × USB 3.2 Gen2x2 Type-C Header, 1 × USB 3.2 Gen1 Header, 2 × USB 2.0 Headers |
| Internal Power Connectors | 1 × 24-Pin ATX, 2 × 8-Pin ATX 12V |
| Cooling Headers | 1 × CPU Fan, 1 × CPU Fan/Water Pump, 4 × System Fan, 2 × System Fan/Water Pump Headers |
| RGB Headers | 3 × Addressable RGB Gen2 Headers, 1 × RGB LED Header |
| Additional Internal Headers | Front Panel, Front Audio, TPM, Noise Detection, Power Button, Reset Button, Reset Jumper, Clear CMOS Jumper, 2 × Temperature Sensor Headers |

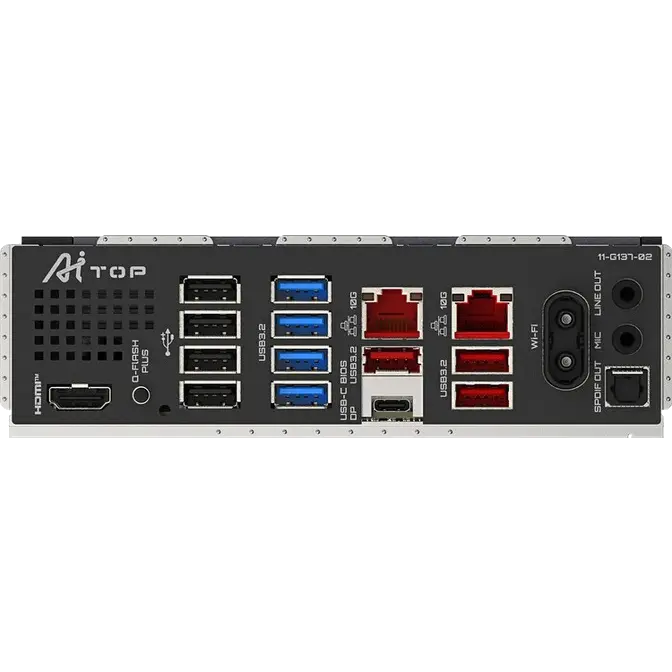

| Rear I/O Ports | 1 × Q-Flash Plus Button 2 × SMA Antenna Connectors 1 × HDMI 1 × USB Type-C® with DisplayPort 3 × USB 3.2 Gen2 Type-A 4 × USB 3.2 Gen1 4 × USB 2.0 2 × RJ-45 LAN Ports 1 × Optical S/PDIF Out 2 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection, Water Cooling Flow Rate Detection, Fan Fail Warning, Fan Speed Control, Noise Detection |
| BIOS | 1 × 256Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM Version), LAN Bandwidth Management Software |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX, 30.5 cm × 24.4 cm |
