• 2 x 10G/1G SFP+ Fibre configurable WAN/LAN Slots

• 2 x 2.5G/1G/100M/10M Ethernet configurable WAN/LAN ports

• 4 x 1G/100M/10M Ethernet Configurable WAN/LAN ports

• 4 x 1G/100M/10M Ethernet LAN ports with 1 million NAT sessions

• Quad-Core CPU with 9.4 Gbps NAT throughput

• 500 x VPN tunnels including 200 x SSL-VPN tunnels

• 1 x RJ-45 console port

• 2 x USB 3.0 ports

• High-Availability (with CARP) ensuring 24/7 system uptime

• Object-oriented SPI Firewall

• Multi-subnet WAN/LAN through 802.1Q

• IPv6 & IPv4

• Bandwidth management

• Supports VigorACS 2 Central Management System for remote management Learn more

• Supports Central AP Management (up to 50 Vigor Access Points) Learn more

• Supports Central Switch Management (up to 30 Vigor Switches) Learn more

• Rack-mountable

• 2 year back to base warranty

Octuple-WAN broadband router

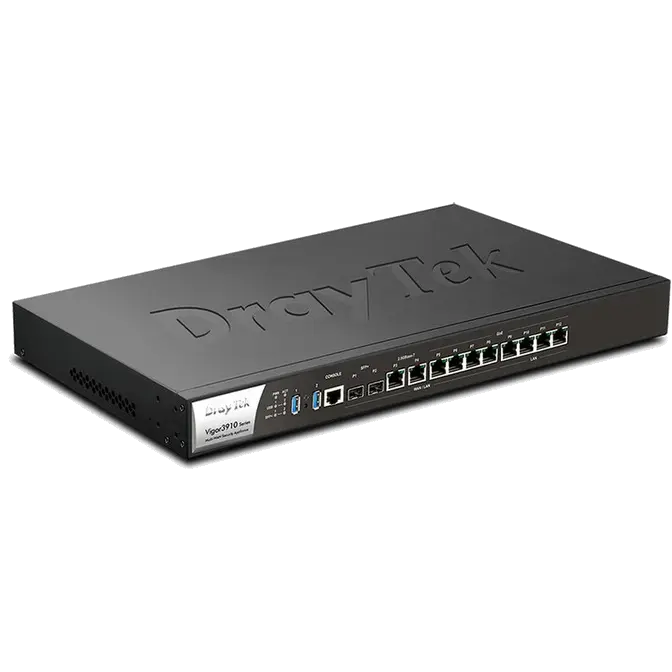

The Vigor3910 Multi-WAN router is a high-performance enterprise level broadband router with 2 x 10Gb SFP+ Fibre configurable WAN/LAN slots, 2 x 2.5GbE configurable WAN/LAN ports, 4 x 1GbE configurable WAN/LAN ports, and 4 x fixed GbE LAN ports.

With 9.4 Gbps NAT throughput, 1 million NAT sessions and other enterprise level features, the Vigor3910 router is an excellent solution for network applications in corporations, organisations, and governments. It can handle up to 500 VPN tunnels including 200 SSL-VPN tunnels, and 50 IP subnets simultaneously.

The session-based Load Balance feature allows the aggregation of multiple WAN connections to provide a higher speed internet. In addition to the Load Balance and Failover multi-WAN functions, the Vigor3910 supports High Availability (Common Address Redundancy Protocol) with hardware redundancy to ensure 24/7 system uptime for all WAN interfaces.

The Central Management feature provides a centralised console to manage your network. It includes AP Management to configure and manage up to 50 DrayTek access points, VPN Management to configure and manage up to 16 VPN tunnels and Switch Management to configure and manage up to 30 DrayTek switches.

Up to 8 WANs

including 10G SFP+ and 2.5G Ethernet

Quad-Core CPU

provides 9.4 Gbps NAT throughput

500 x VPN tunnels

provides 3.3 Gbps IPsec throughput

1 million NAT sessions

Recommended for a network of 500+ hosts

1. 2 x USB 3.0 ports
2. Factory Reset Button
3. RJ-45 Console Port
4. 2 x 10G/1G SFP+ Fibre Configurable WAN/LAN Slots

1. 2 x 2.5G/1G/100M/10M RJ-45 Ethernet Configurable WAN/LAN Ports
2. 4 x 1G/100M/10M RJ-45 Ethernet Configurable WAN/LAN Ports
3. 4 x 1G/100M/10M Ethernet RJ-45 LAN Ports

Key Features

Quad-Core Processor

Offers excellent performance for bandwidth-demanding enterprise networks.

Hotspot Web Portal

Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more

10G SFP+

Provides 2 x 10G-capable fibre SFP ports for WAN or LAN connection.

Bandwidth Management

Control Internet bandwidth usage by users by using the bandwidth limit and session limit policy settings, and prioritise traffic by using the QoS feature.

Load Balancing

Maximize throughput and reliability by using multiple Internet connections. Learn more

Firewall & Content Filter

Use URL keywords or web categories to filter web pages and block access to insecure or inappropriate content.

VPN (Virtual Private Network)

Build a secure and private tunnel from the LAN of Vigor3910 to the remote offices and teleworkers over the Internet. Learn more

DrayDDNS

The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

SSL VPN

SSL VPN works through firewalls providing secure remote access to any network environment. Learn more

Central AP Management

Use the Vigor3910 router as a wireless controller to maintain and monitor the VigorAPs. Learn more

PPPoE Server

Use Point-to-Point connection on LAN to keep track of individual user’s traffic. Setup Guide

Central Switch Management

Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more

Fibre to the Building/Home

Vigor3910 is an ideal choice to work with tier 2/3 ISPs and co-working spaces

High Performance with 10G SFP+

For both NAT and routing network, and for both 10G-WAN and 10G-LAN, Vigor3910 is ready to deliver high throughput to your business.

Layer 3 Routing with BGP and OSPF

With the most popular Exterior and Interior Gateway Protocols, Vigor3910 is ideal for ISP deployment.

Layer 2 Security with PPPoE Server and VLAN

With 200 PPPoE user accounts and 50 VLAN/LAN subnets, Vigor3910 provides 9.2 Gbps NAT throughput, and makes subletting network infrastructure secure and easy.

All-in-One Management

Vigor router provides a management platform for your Vigor devices on the LAN

Auto-Discovery

Automatically discover LAN subnets and add detected VigorSwitch/AP into managed list.

Provisioning

Most-frequent used settings can be pre-defined on the Vigor Router, and provision to the managed VigorSwitch/AP.

Monitoring

Vigor Router provides a centralized view of managing devices, you may always check if the managed Vigor Switch/AP is online.

System Maintenance

Support basic maintenance remotely via Vigor Router. Such as remote reboot, factory reset, configuration backup/restore, etc.

VPN Load Balancing and Failover functions for businesses

Management Solution

All-in-One Management
Central Switch Management	Central AP Management
Auto-Discovery Provisioning Monitoring Centralized Hierarchy View Reboot PoE Devices Remotely Quick VLAN Configuration	Auto-Discovery Auto-Provisioning Monitoring Centralized View Alarm Reboot VigorAP Remotely Wi-Fi Client Load Balancing

Software Management
VigorACS 2
Provisioning Monitoring Centralized Hierarchy View Alarm Reboot Vigor Devices Remotely Scheduled Maintenance Report

In-the-Box

Vigor3910

Rack Mount Kit (brackets)

Console Connector + Console Flat Cable

RJ-45 Cable (Ethernet)

Power Cord

Quick Start Guide
