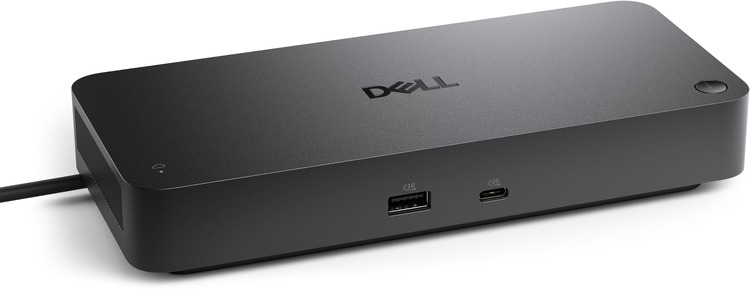

Dell Pro Smart Dock SD25 USB-C Docking Station
Web ID: 48141
Display Input: USB-C In
Display Output: USB-C Out || HDMI Out || DisplayPort Out
USB-A Ports: 4
USB-C Ports: 2
LAN Speed: 2.5 Gigabit
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: 210-BRJV
$329
Technical Information
| Specification | Details |
|---|---|
| Connectivity Technology | Wired |
| Number of Displays Supported | 4 |
| Device Supported | Notebook |
Management Features
| Feature | Details |
|---|---|
| Host PC Management | Yes |
| MAC Address Pass-through | Yes |
| PXE Boot | Yes |
| Dock Power Button Sync | Yes |
| Wake-On-LAN | Yes |
| WLAN to LAN Switch | Yes |
| Kernel DMA Protection | Yes |
| Dock Management Features | Remote firmware updates without a PC, Host PC-based firmware updates, Firmware update on disconnect, Port disablement independent of PC |
Video Resolution Support
| Configuration | Resolution |
|---|---|
| DP1.4 with DSC | 4x WQHD (3440×1440) @ 60Hz 3x WQHD @ 60Hz 2x 5K (5120×2160) @ 60Hz 1x 6K (6144×3456) @ 60Hz |
| DP1.4 without DSC | 4x HD (1280×720) @ 60Hz 3x FHD (1920×1080) @ 60Hz 2x QHD (2560×1440) @ 60Hz 1x 4K (3840×2160) @ 60Hz |
Network & Communication
| Feature | Details |
|---|---|
| Ethernet Technology | RJ45 Ethernet port, 2.5GbE |
Interfaces / Ports
| Type | Details |
|---|---|
| Video Interfaces | 2x DP1.4, 1x HDMI 2.1, 1x USB-C 3.2 Gen2 (DP 1.4 Alt mode) |
| USB (Data Only) | 4x USB-A 3.2 Gen2 (10 Gbps), 1x USB-C 3.2 Gen2 (10 Gbps) |
| USB (Power) | 4x USB-A 3.2 Gen2 (4.5W each), 1x USB-C 3.2 Gen2 (15W), 1x USB-C DP Alt mode (7.5W) |
| USB Power Delivery | 130W (Dell systems), 96W (non-Dell systems) |
Software Compatibility
| Specification | Details |
|---|---|
| Operating Systems Supported | Windows 10, Windows 11, Ubuntu, Red Hat Enterprise Linux, ChromeOS |
Power Description
| Specification | Details |
|---|---|
| Maximum Power Supply Wattage | 180W |
Physical Characteristics
| Dimension | Size |
|---|---|
| Height | 205 mm |
| Width | 90 mm |
| Depth | 35.25 mm |
| Weight | Approx. 562 g |
Miscellaneous
| Item | Details |
|---|---|
| Package Contents | Docking Station, Power Adapter & Cord, Quick Start Guide, Safety/Environmental/Regulatory Info |
| Security Slot | Kensington Security Slot |
Warranty
| Coverage | Details |
|---|---|
| Standard Warranty | 3-Year Limited Hardware Warranty with Advanced Exchange |
| Optional | 4- & 5-Year Warranty Extensions Available |
