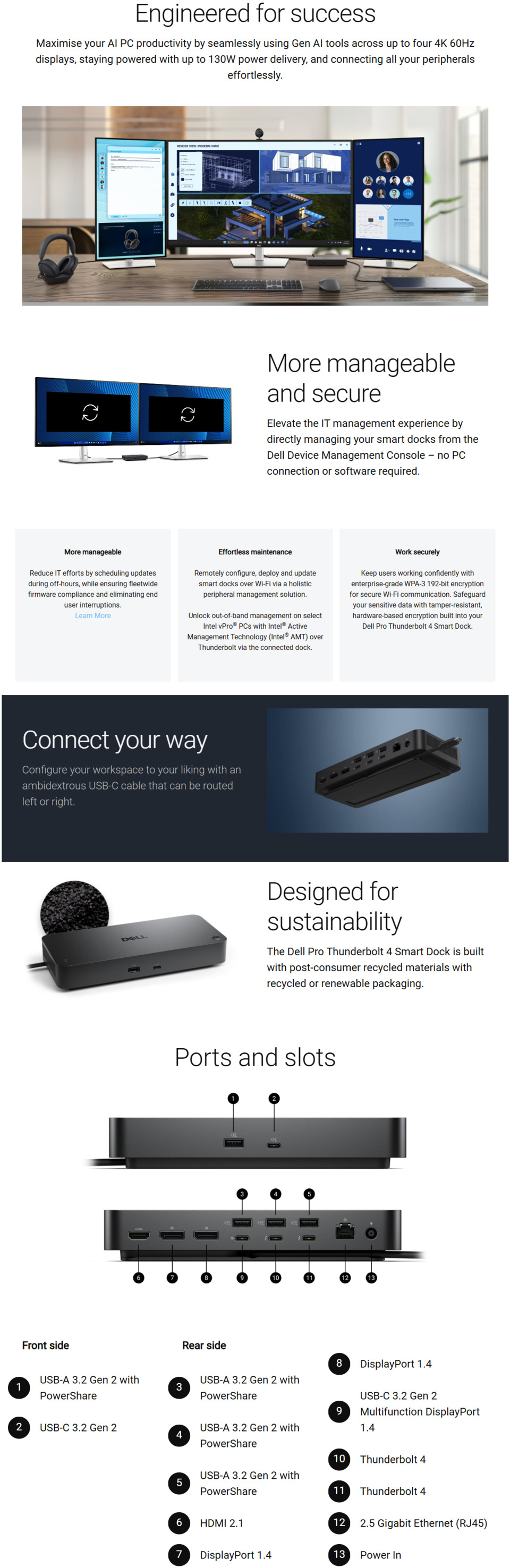

Dell Pro SD25TB4 Thunderbolt 4 Smart Dock
Web ID: 48102
Display Input: Thunderbolt In
Display Output: USB-C Out || Thunderbolt Out || HDMI Out || DisplayPort Out
USB-A Ports: 4
USB-C Ports: 2
LAN Speed: 2.5 Gigabit
Manufacturer Warranty: 3 Year
Manufacturer PN: 210-BRKN
GTIN: 884116493747
Manufacturer Website
$449
| Connectivity Technology | Wired |
| Number of Displays Supported | 4 |
| Host PC Management | Intel® AMT over Thunderbolt™ with select Intel® vPro® PCs |
| MAC address pass-through | Yes |
| PXE Boot | Yes |
| Dock Power Button Sync | Yes |
| Wake-On-LAN | Yes |
| WLAN to LAN switch | Yes |
| Kernel Direct Memory Access (DMA) protection | Yes |
| Remote firmware updates without a PC | Yes |
| Host-based firmware updates | Yes |
| Firmware update on disconnect | Yes |
| Port Disablement independent of PC | Yes |
| Device Type | Notebook |
| DP1.4 / DP2.1 with DSC | 4 x 4K @ 60Hz; 3 x 4K @ 60Hz; 2 x 6K @ 60Hz; 1 x 8K @ 60Hz |
| DP1.4 without DSC | 4 x QHD @ 60Hz; 3 x WQHD @ 60Hz; 2 x 4K @ 60Hz; 1 x 5K WUHD @ 60Hz |
| Ethernet Technology | RJ45 Ethernet port, 2.5GbE |
| Video Interfaces | 2 x DP1.4; 1 x HDMI 2.1; 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4; 2 x Thunderbolt 4 |
| USB Ports (Data Only) | 4 x USB-A 3.2 Gen 2 (10 Gbps); 1 x USB-C 3.2 Gen 2 (10 Gbps) |
| USB Ports (Power) | 4 x USB-A 3.2 Gen 2 (4.5W each); 1 x USB-C 3.2 Gen 2 (15W); 1 x USB-C Multi-function DisplayPort (7.5W); 2 x Thunderbolt 4 (15W each) |
| USB Power Delivery | 130W (Dell systems); 96W (non-Dell systems) |
| Operating System Supported | Windows 10; Windows 11; Ubuntu; Red Hat Enterprise Linux; ChromeOS; macOS |
| Maximum Power Supply Wattage | 180W |
| Height | 205mm |
| Width | 90mm |
| Depth | 35.25mm |
| Weight (Approximate) | 579g |
| Package Contents | Docking Station; Power Adapter and Power Cord; Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information) |
| Kensington Security Slot | Yes |
| Limited Warranty | 3 Year |
